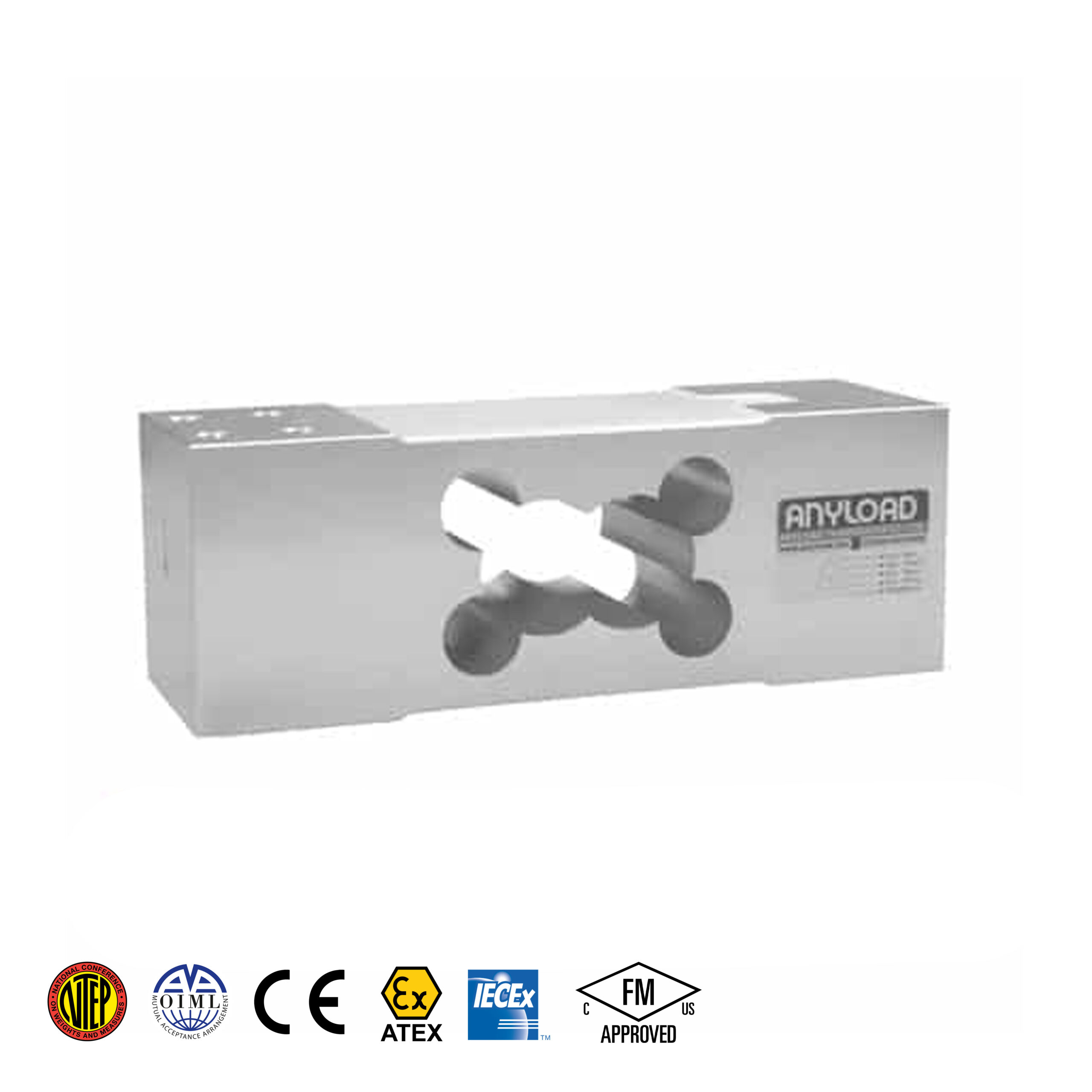

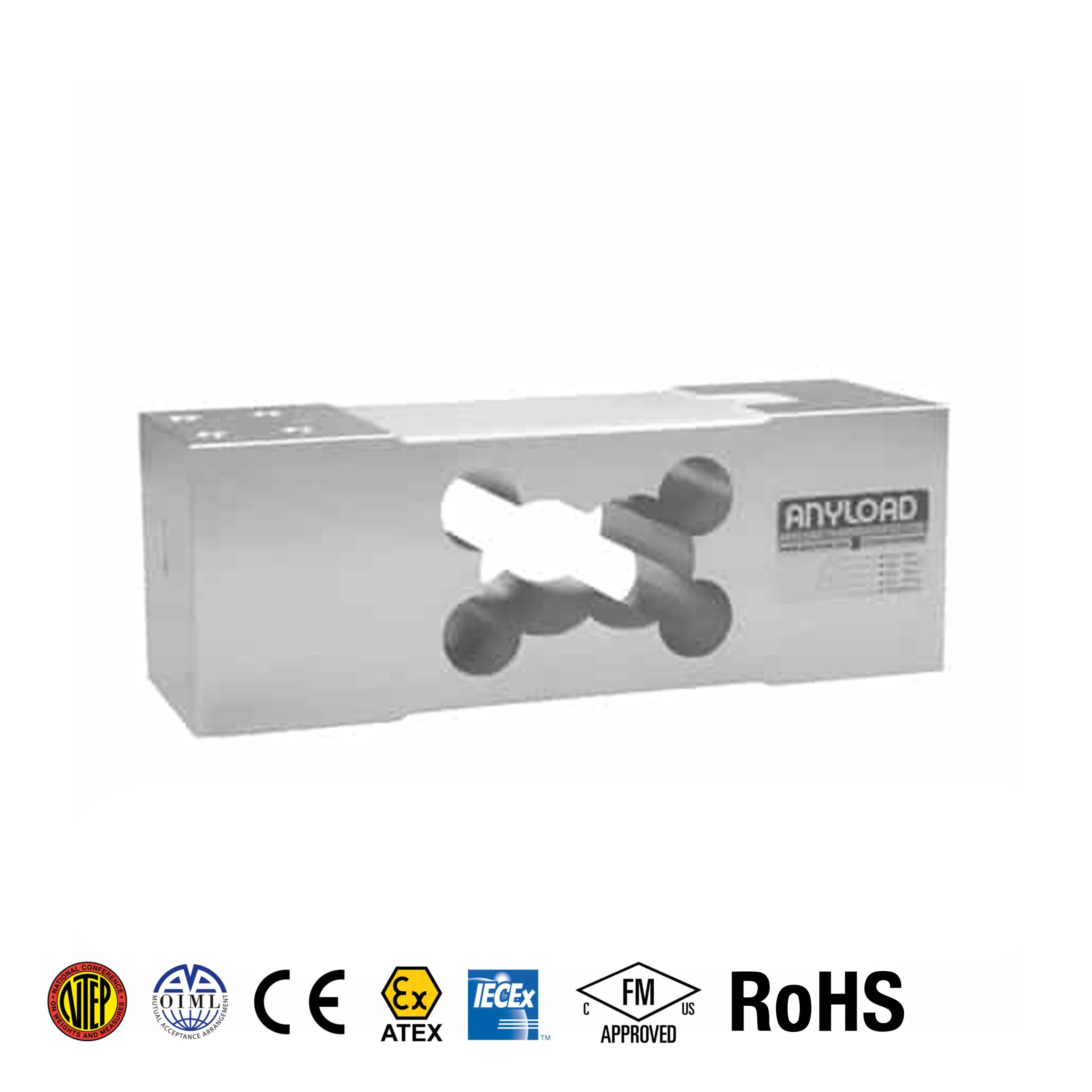

108CA Single Point Load Cell
The 108CA is an OIML and NTEP-certified single-point load cell delivering high performance for lower and medium capacity applications. This model offers excellent protection against irregular loading and is a versatile compression measurement solution for many applications including check weighing, platform scales, bench scales, and process weighing. The 108CA is interchangeable with Vishay Tedea-Huntleigh 1263, HBM PW24A, and Coti Global CG-50-2.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 10kg-500kg: up to NTEP 1:5 000 Class III, Single Cell
600kg-1t: up to NTEP 1:4 000 Class III, Single Cell - 10kg-30kg: up to OIML MAA C7.5, Y=20 000;
60kg-500kg: up to OIML MAA C6, Y=29 000;
600kg-1t: up to OIML MAA C4, Y=4 000 - CE and RoHS certified
Features
-
li>Material: Aluminum, Clear Anodized
- Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 10kg-500kg: up to NTEP 1:5 000 Class III, Single Cell
600kg-1t: up to NTEP 1:4 000 Class III, Single Cell - 10kg-30kg: up to OIML MAA C7.5, Y=20 000;
60kg-500kg: up to OIML MAA C6, Y=29 000;
600kg-1t: up to OIML MAA C4, Y=4 000 - CE and RoHS certified
Specifications
| Rated Capacities | 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t |
|---|---|
| Reference Max. Platform Size | 600mm x 700mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Coti Global | CG-50-2 |
|---|---|
| HBM | PW24A |
| Vishay Tedea-Huntleigh | 1263 |
