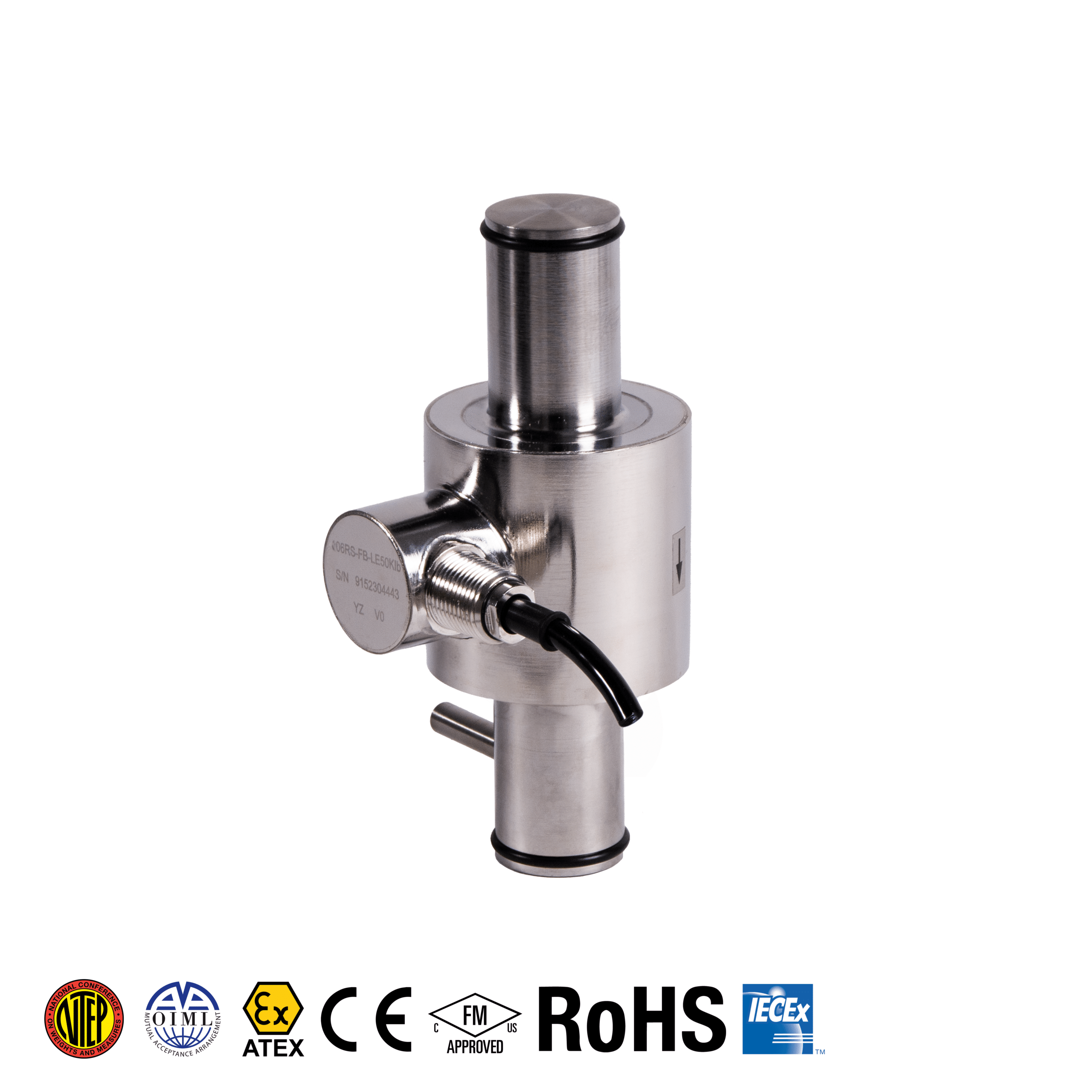

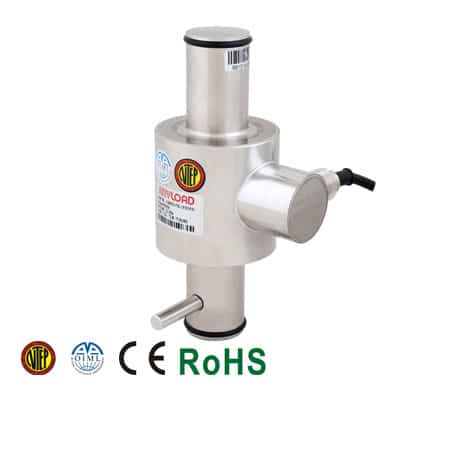

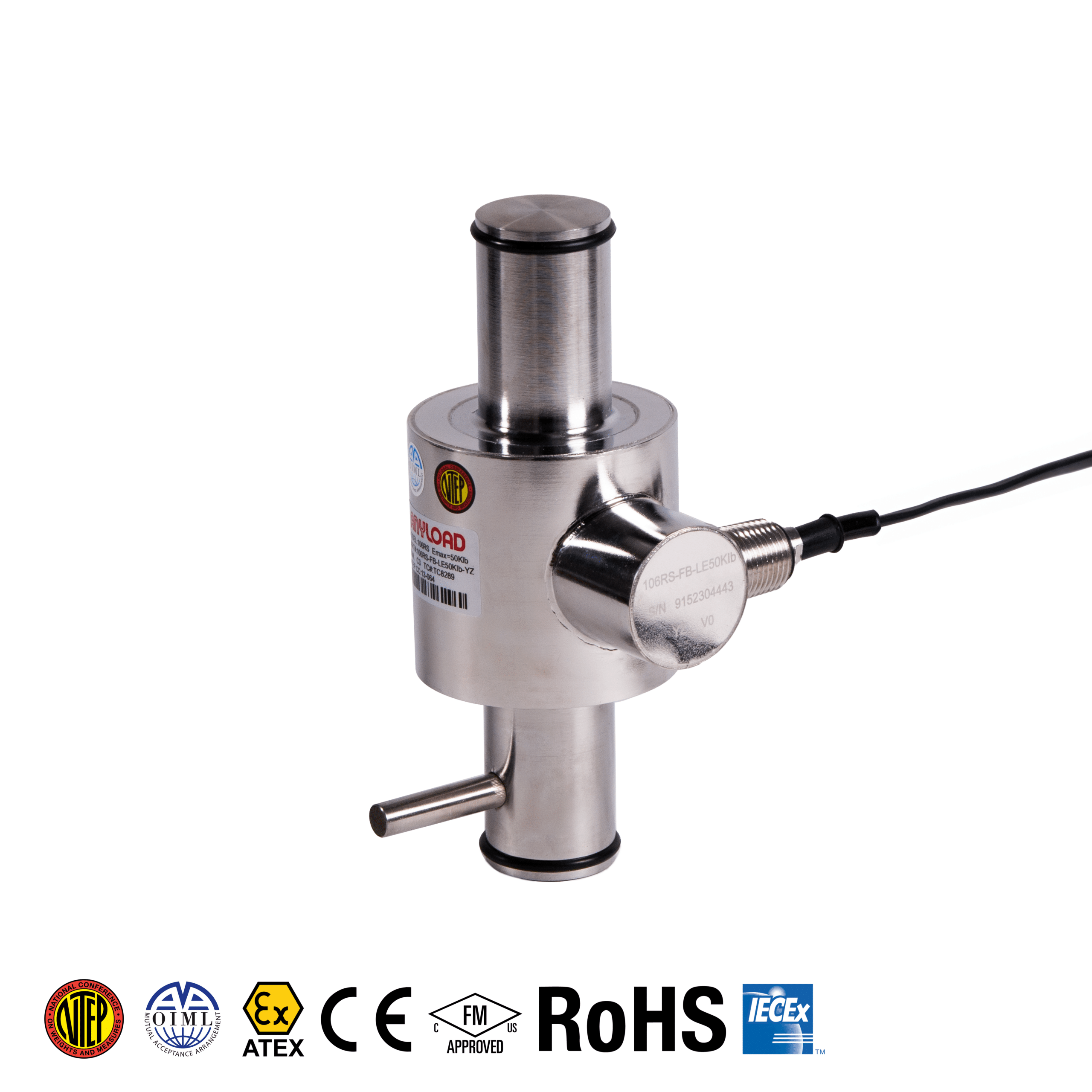

106RS-FB Canister Load Cell

The 106RS-FB is a stainless steel compression load cell designed for high-capacity industrial weighing applications. Featuring a welded seal with IP68 protection, it delivers reliable and accurate performance in harsh environments. Ideal for silo, hopper, and heavy-duty compression systems.

Material: Stainless steel
Rated Capacities: LE50Klb, 250kN, 56Klb
Full Scale Output: LE50Klb: 1.8 mV/V ± 0.1%
250kN & 56Klb: 2.0 mV/V ± 0.1%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP68
NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
OIML MAA C3, Y=16 000 certified from 10t-50t
CE and RoHS certified
ATEX, FM, IECEx available upon request

Datasheet

Part Number

Clear

Features

Material: Stainless steel
Rated Capacities: LE50Klb, 250kN, 56Klb
Full Scale Output: LE50Klb: 1.8 mV/V ± 0.1%
250kN & 56Klb: 2.0 mV/V ± 0.1%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP68
NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
OIML MAA C3, Y=16 000 certified from 10t-50t
CE and RoHS certified
ATEX, FM, IECEx available upon request

Specifications

Rated Capacities	LE50Klb, 250kN, 56Klb
Full Scale Output	LE50Klb: 1.8 mV/V ± 0.1% 250kN & 56Klb: 2.0 mV/V ± 0.1%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.030%
Repeatability	< ± 0.010%
Hysteresis Error	< ± 0.020%
Creep in 30 minutes	< ± 0.020%
Input Resistance	1080Ω ± 10Ω
Output Resistance	1000Ω ± 5Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0015% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0027% of Cn/k
Compensated Temperature Range	–10°C to 50°C/14°F to 122°F
Service Temperature Range	–30°C to 70°C/-20°F to 160°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Welded seal
IP Rating	IP68
