106DH Canister Load Cell

Description:

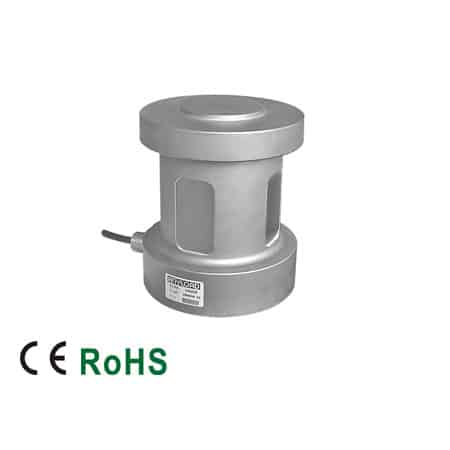

The 106DH canister load cell is a high capacity compression weighing solution that is low profile and provides excellent side load tolerance. The simple design is easy to install and integrate into applications, which includes tank and silo weighing, level monitoring, and other very high-capacity weighing needs.

Features:

  • Material: Alloy steel
  • Rated Capacities: 50Klb, 100Klb, 200Klb, 300Klb, 500Klb, 750Klb, 1000Klb
  • Full Scale Output: 2mV/V ยฑ 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
  • Measurement Ukraine certified
Rated Capacity 50Klb, 100Klb, 200Klb, 300Klb, 500Klb, 750Klb, 1000Klb
Full Scale Output 2mV/V ยฑ 0.25%
Zero Balance ยฑ 0.02mV/V
Non-linearity < ยฑ 0.01 %
Repeatability < ยฑ 0.030%
Hysteresis Error < ยฑ 0.050%
Creep in 30 minutes < ยฑ 0.030%
Input Resistance 450ฮฉ ยฑ 20ฮฉ
Output Resistance 350ฮฉ ยฑ 3ฮฉ
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2Gฮฉ (50V DC)
Temperature Effect on Sensitivity < ยฑ0.0012% of Cn/k
Temperature Effect on Zero Balance < ยฑ 0.0040% of Cn/k
Compensated Temperature Range 10ยฐC to 50ยฐC/14ยฐF to 122ยฐF
Service Temperature Range -30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF
Storage Temperature Range -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67
Manufacturer Model
Coti Global CG-94
Vishay Sensortronics 65094
