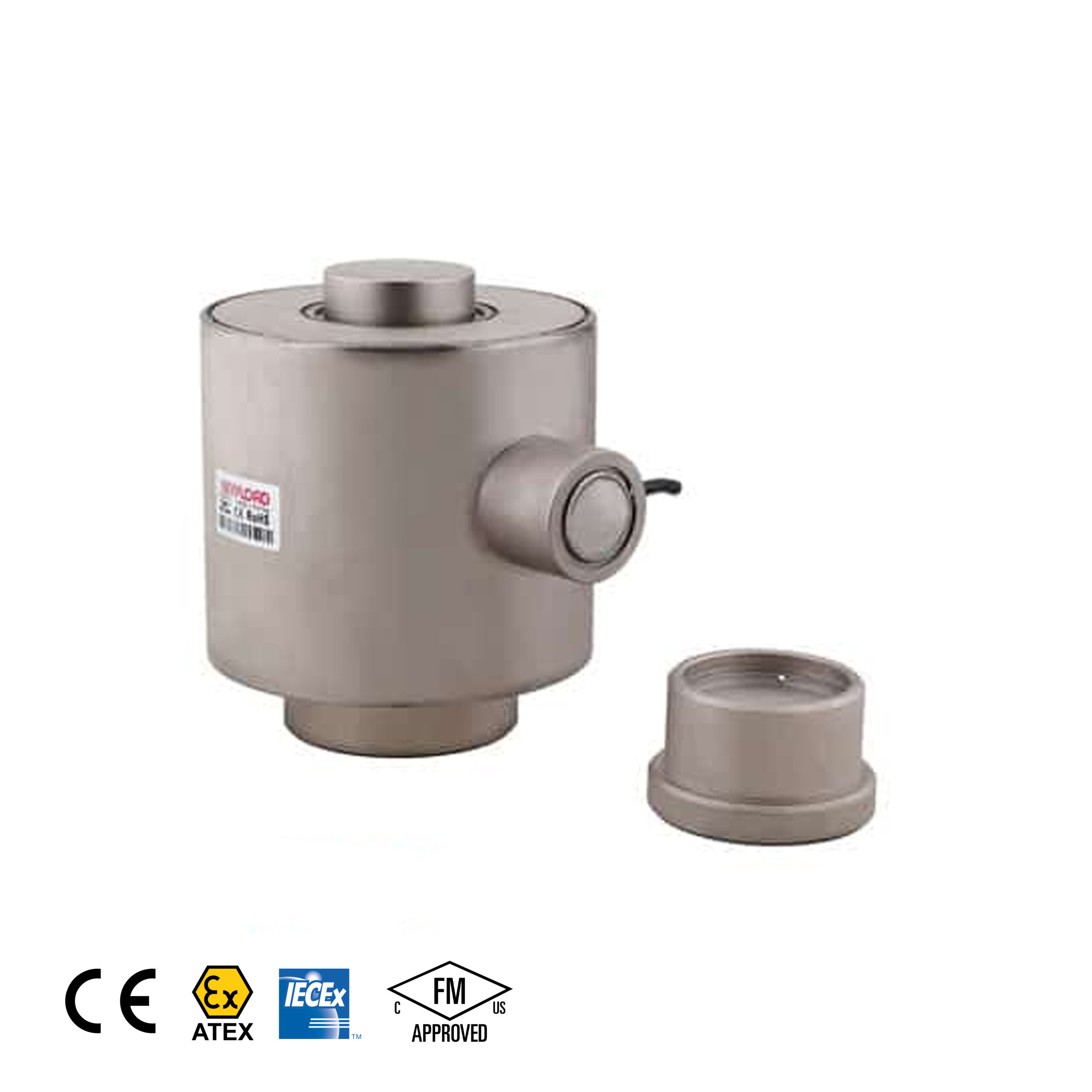

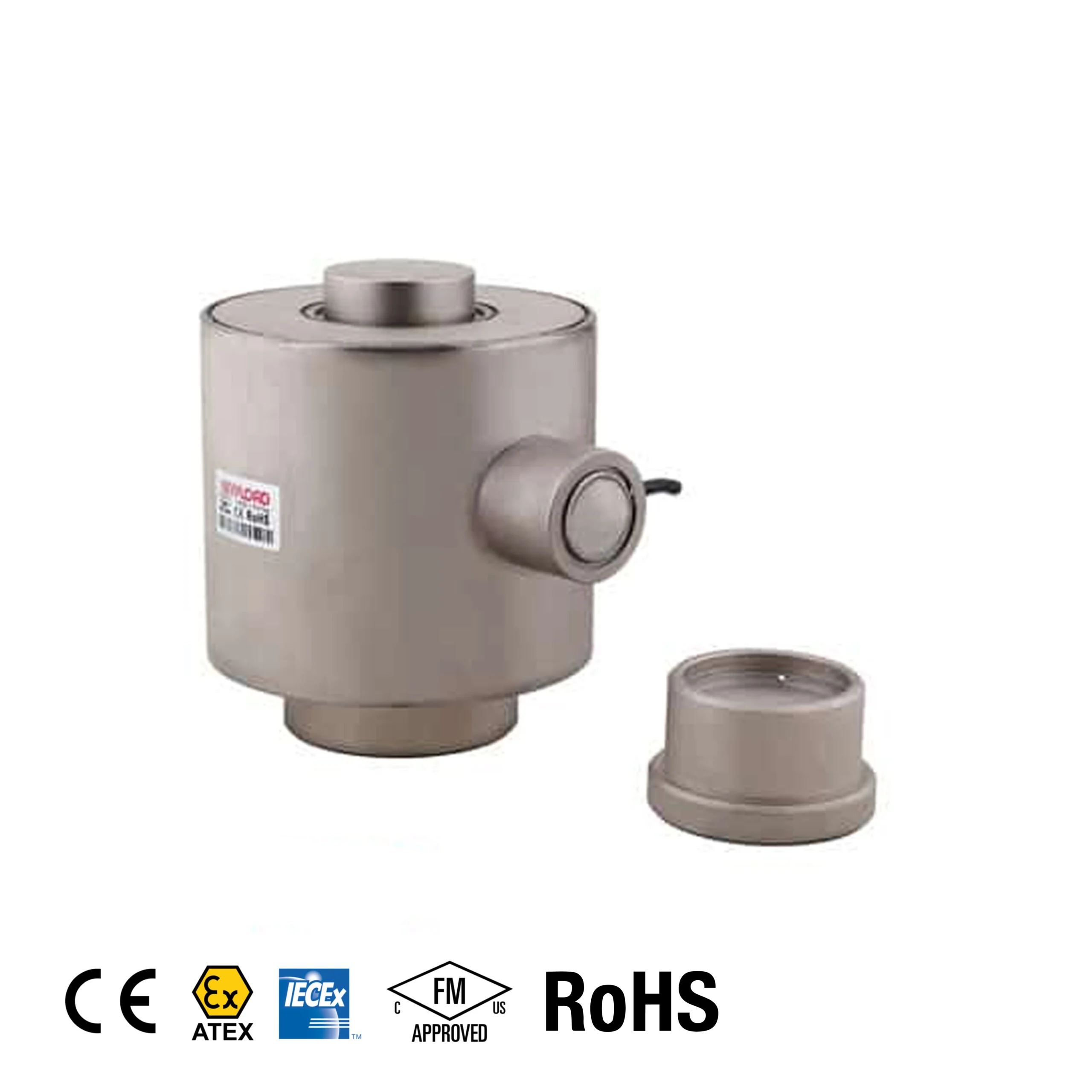

106BH Canister Load Cell
The 106BH canister load cell is a high-capacity alloy steel compression sensor designed for heavy-duty industrial weighing. Its welded IP67 sealing, high overload protection, and certified accuracy ensure reliable and stable performance in truck scales, tanks, silos, and other high-load applications.
- Material: Alloy steel
- Rated Capacities: 100t, 200t, 300t, 500t, 800t, 1000t
- Full Scale Output: 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Features
- Material: Alloy steel
- Rated Capacities: 100t, 200t, 300t, 500t, 800t, 1000t
- Full Scale Output: 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 100t, 200t, 300t, 500t, 800t, 1000t |
|---|---|
| Full Scale Output | 2mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
