102RH Double Ended Beam Load Cell, Alloy Steel, Welded Seal, IP67

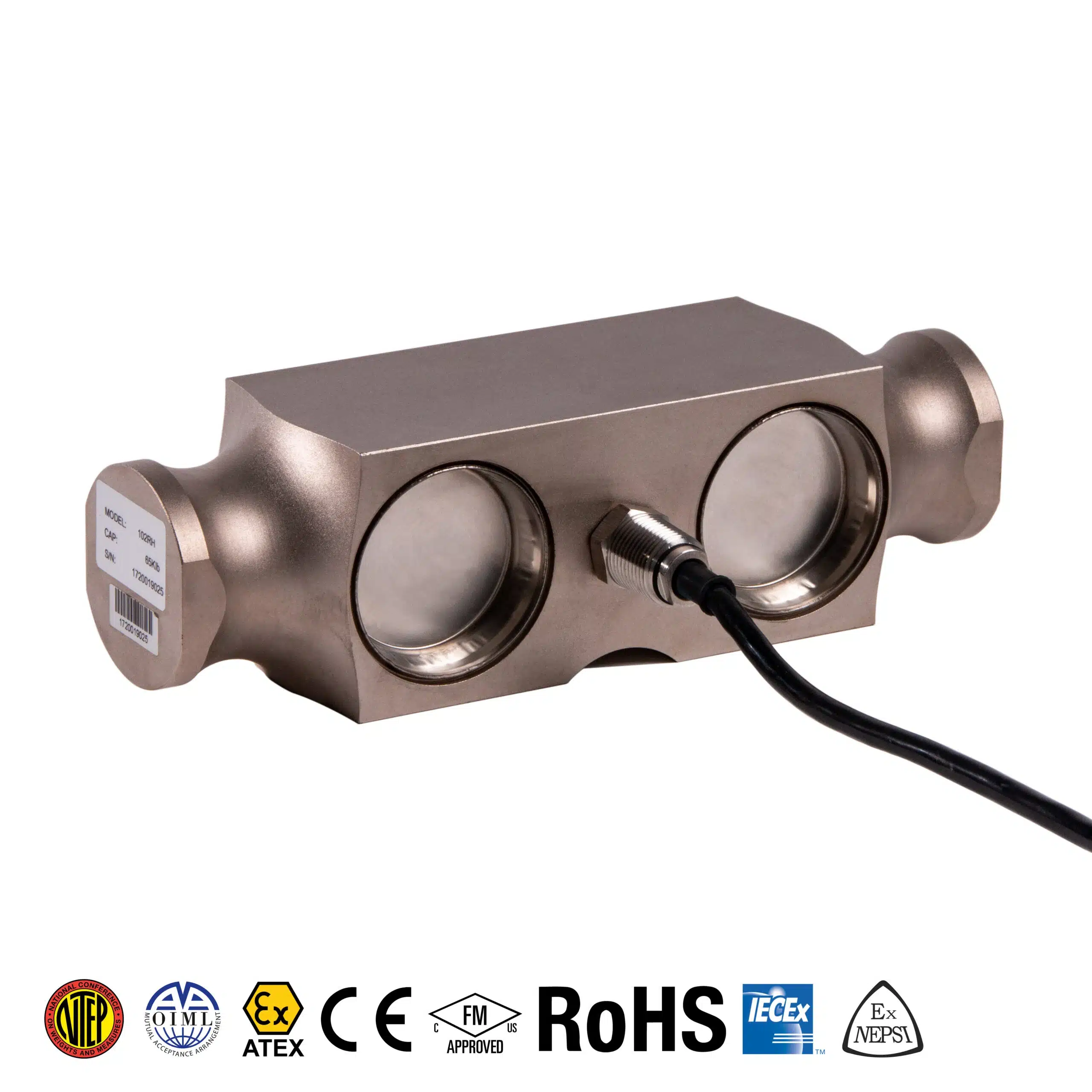

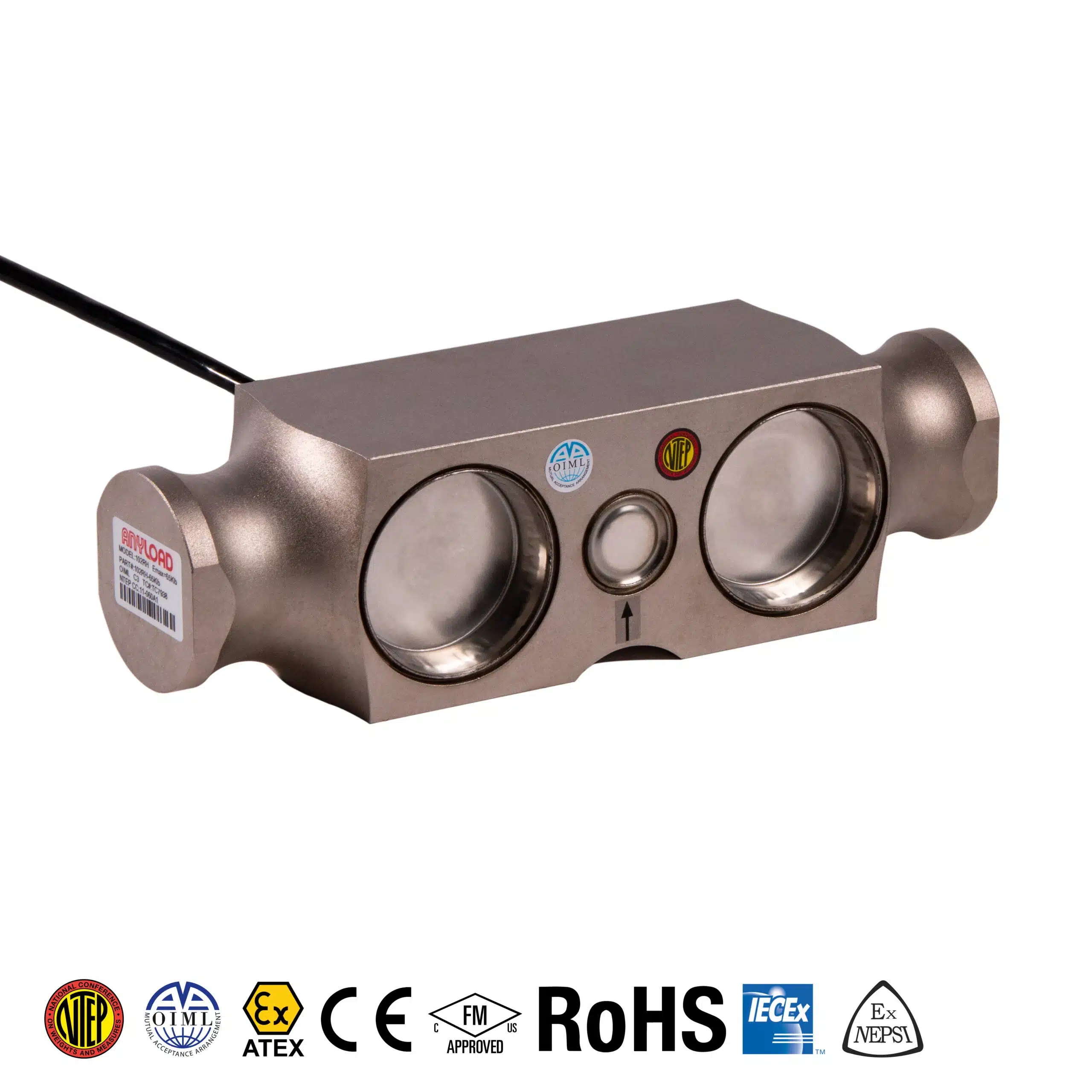

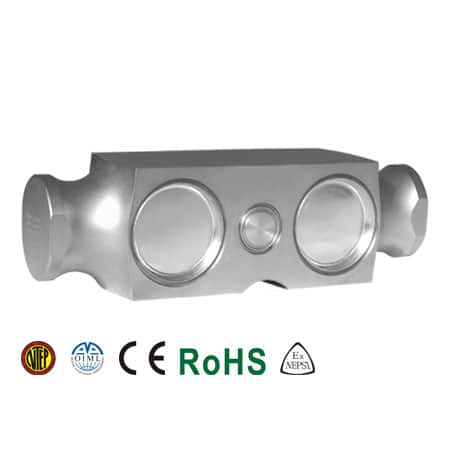

102RH Double Ended Beam Load Cell

Descriptions:

This double-ended shear beam load cell is constructed with heavy-duty alloy steel and welded sealed to provide IP68-class water resistance. The robust, low-profile, and center-supported design is suited for higher-capacity applications, capable of operating under challenging conditions. This load cell is commonly used in truck scales, railroad scales, and is designed to be easily integrated into a wide variety of systems.

Features:

  • Material: Alloy steel
  • Rated Capacities: 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-125Klb
  • OIML MAA C4, Y=15 000 certified from 11t-55t
  • CE, RoHS and Ex certified
Clear
Product Enquiry
Rated Capacities 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t
Full Scale Output 3mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < 0.023± %
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 102RH-(10-125)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Coti Global CG-5223
Rice Lake RL75223
Vishay Revere Transducers 5223
Vishay Sensortronics 65040-1127W

* No Cφ 5 hole
(Not interchangeable with 100Klb, 125Klb of CG-5223; Interchangeable with 100Klb, 125Klb of RL75223, 5223, 65040-1127W)

For the Cφ 5 hole, refer to the datasheet
