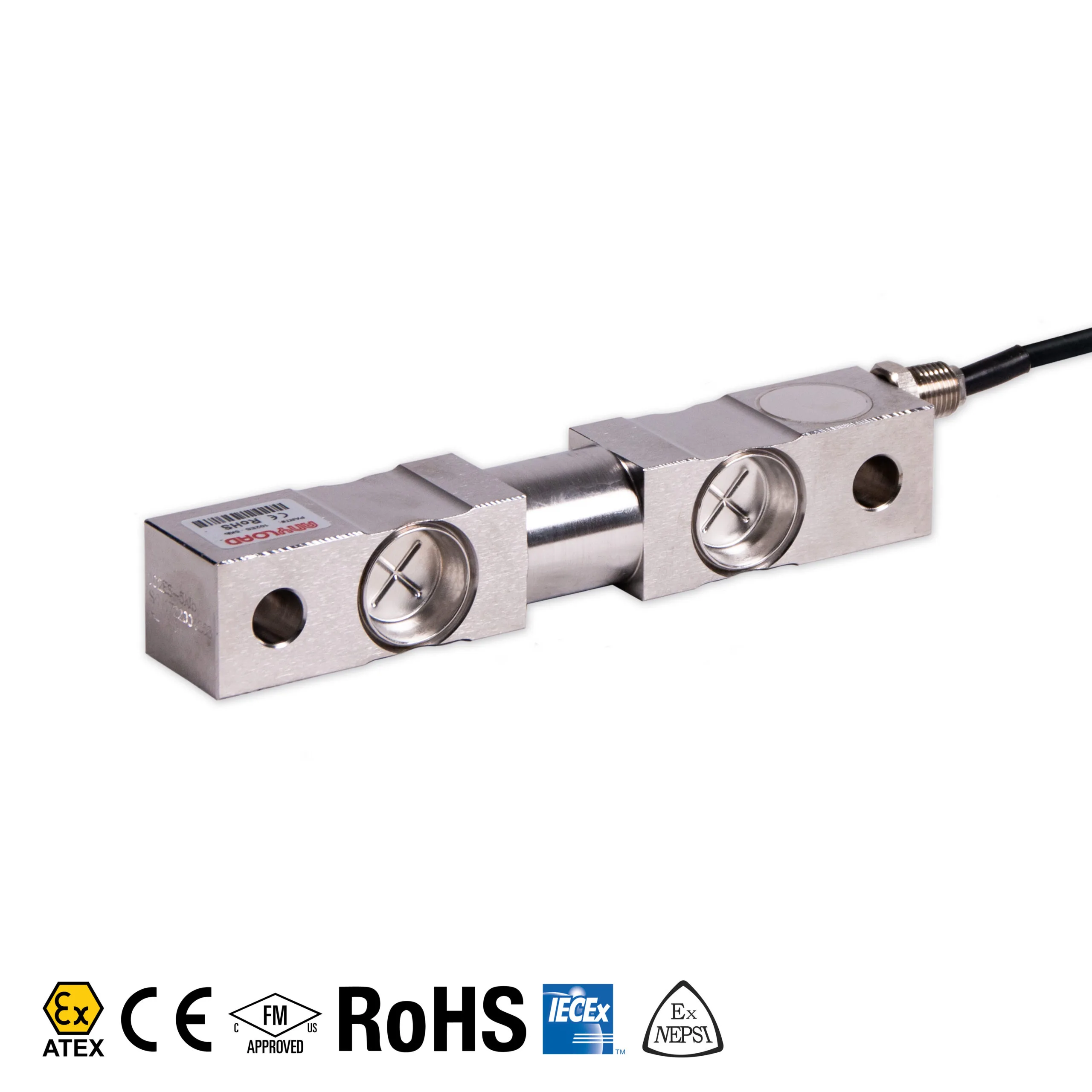

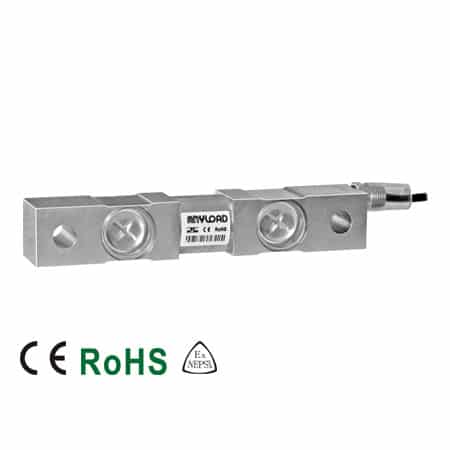

102ES Double Ended Beam Load Cell
The 102ES is a double-ended beam load cell with center loading to protect against irregular loading forces. The stainless steel welded sealed IP68-class water-resistant construction and corrosion resistance ensures excellent performance under harsh industrial conditions. A compression weigh module (102ESM2) is also available from Anyload that shields the load cell, minimizes off-center loading, protects from lifting, and compensates for thermal expansion all to provide the ideal weighing environment.
- Material: Stainless steel
- Rated Capacities: 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Features
- Material: Stainless steel
- Rated Capacities: 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb |
|---|---|
| Full Scale Output | 3.0mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Artech | SS70510 |
|---|---|
| Coti Global | CG-16-SSW |
| Rice Lake | RL75016WHE |
| Rice Lake | RL75016WHE* |
| Rice Lake | RL77032SS |
| Rice Lake | RL77032SS HE |
| Mettler Toledo | SLD525 |
| Vishay Celtron | DSR-SS |
| Vishay Revere Transducers | 9203 |
| Vishay Sensortronics | 65016W |
| Vishay Sensortronics | 65016WH* |
*Hermetically sealed
