102DS Double Ended Beam Load Cell

Description:

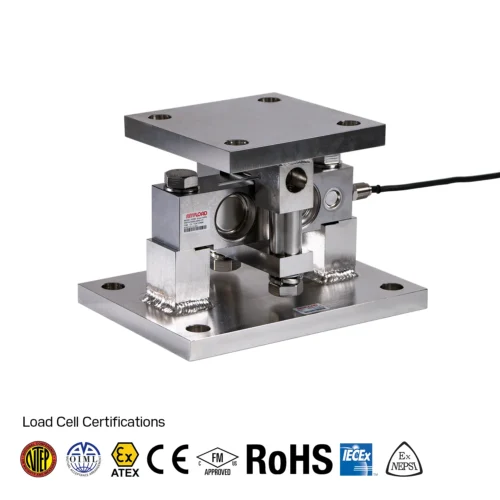

The stainless steel IP68 class water- and corrosion-resistant double-ended center loading shear beam is a compact, robust, and cost-effective compression weighing solution for high-capacity weighing needs. This product is commonly used in axel weighers, tank weighing, weighbridges, and many other applications. A compression weigh module (102DSM3) is also available from Anyload that, shields the load cell, minimizes off-center loading, protects from lifting, and compensates for thermal expansion all to provide the ideal weighing environment.

Features:

  • Material: Stainless Steel
  • Rated Capacities: 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • CE, RoHS and Ex certified
Clear
Product Enquiry
Rated Capacities 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
Full Scale Output 3mV/V ± 0.25%
Zero Balance  ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded sealed
IP Rating IP68

pdf- Download data sheet

pdf- 102DS-(5-75)klb

pdf- 102DS-(100-200)klb

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Coti Global CG-9103
Rice Lake RL70000SS
Vishay Revere Transducers 9103
Mettler Toledo SLD-530
