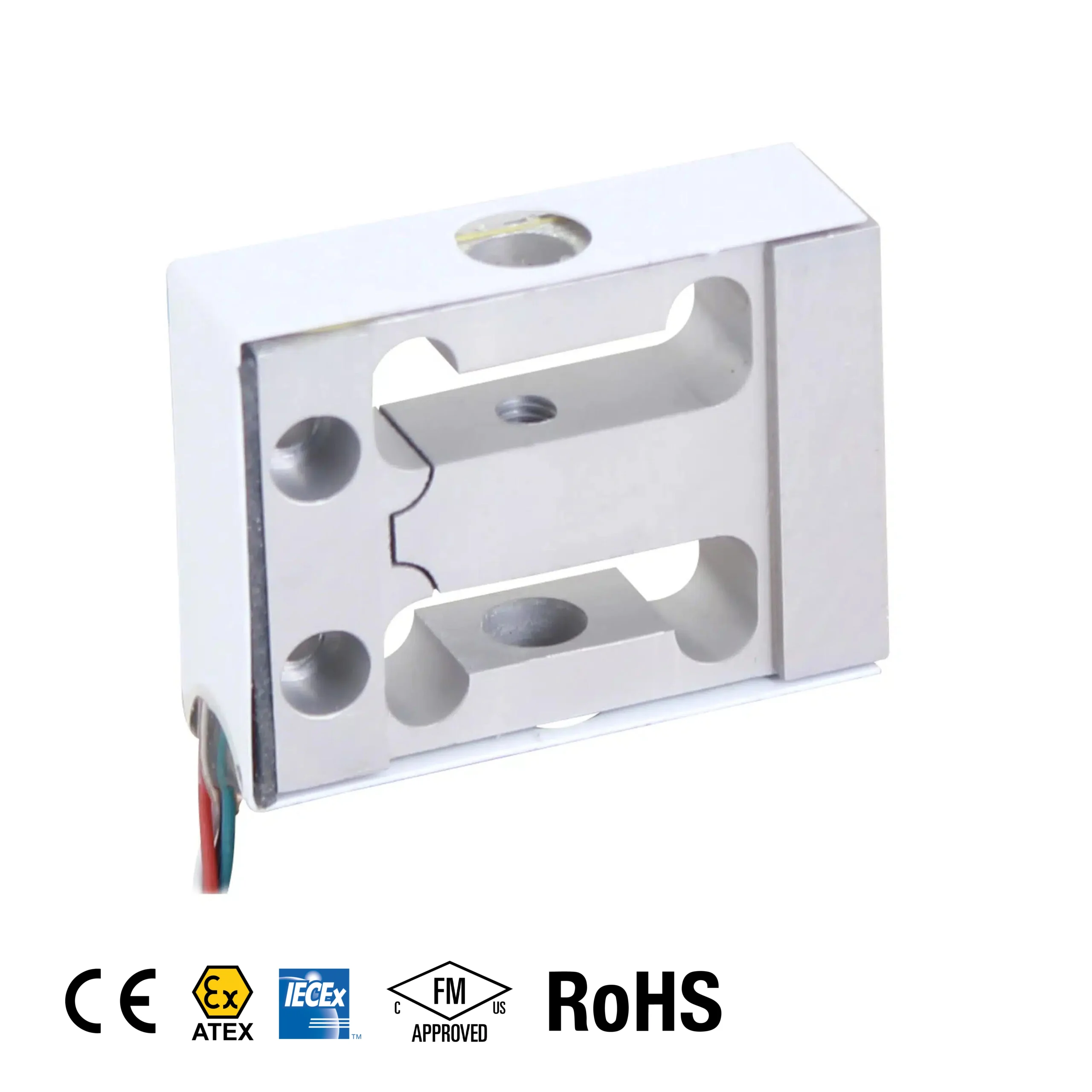

101AALS Side Mount Load Cell
The 101AALS “belt-buckle” side mount load cell provides high-accuracy force measurement for portable and compact applications. The clean and reliable design is precision machined to enable integral overload protection. The 101AALS is interchangeable with Futek LSM300.
Anyload is committed to equipping companies for growth in the force measurement industry, click here to see more force measurement products.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 2.2lb, 5lb, 10lb, 25lb, 50lb, 100lb
- Full Scale Output: 2.0mV/V ± 20%
- IP Rating: IP30
- CE, RoHS certified
- ATEX, FM, IECEx available upon request
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 2.2lb, 5lb, 10lb, 25lb, 50lb, 100lb
- Full Scale Output: 2.0mV/V ± 20%
- IP Rating: IP30
- CE, RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 2.2lb, 5lb, 10lb, 25lb, 50lb, 100lb |
|---|---|
| Full Scale Output | 2.0mV/V ± 20% |
| Zero Balance | < ± 0.02mV/V |
| Non-linearity | < ± 0.02% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.02% |
| Creep in 30 minutes | < ± 0.25% |
| Input Resistance | 1050Ω ±15Ω |
| Output Resistance | 1000Ω ± 3Ω |
| Recommended Excitation | 10V |
| Insulation Resistance | >5 [50V DC] GΩ |
| Nominal Temperature Range | –10°C to 40°C/-14°F to 104°F |
| Seal Type | Environmentally Sealed |
| IP Rating | IP30 |
Interchangeable
| Manufacturer | Model |
|---|---|
| Futek | LSM300 |
