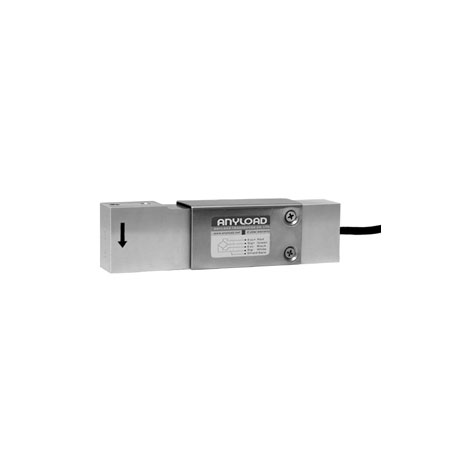

651TA and 651TAUN Single Point Load Cell, Aluminum, Environmentally Sealed, Potted, IP67

651TAUN Single Point Load Cell

Description:

Robust, low capacity compression weighing single point load cell that is simple to install and built to last, with 150% safe overload and IP67 waterproofing. Common applications include platform scales, process weighing, mail and packaging, and more.

Features:

  • Material: Aluminum
  • Thread: Imperial
  • Rated Capacities: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
Clear
Product Enquiry
SKU: N/A Category:
Rated Capacities 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
Reference Max. Platform Size 450mm x 500mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed, Potted
IP Rating IP67

pdf- Download data sheet

pdf- 651TAUN-(10-200)kg

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Coti Global CG-40
Rice Lake RL1040
Vishay Celtron LOC
Vishay Tedea-Huntleigh 1040 (mounting hole: 1/4”-28UNF)
Vishay Tedea-Huntleigh 1041 (mounting hole: 1/4”-28UNF)
