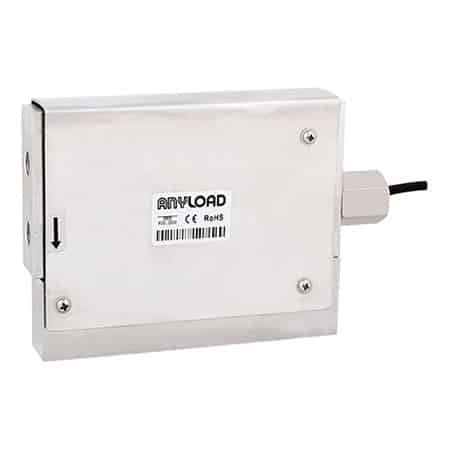

The ANYLOAD 651PS is a stainless steel single point load cell designed for accurate, repeatable weighing on small platforms. Built from 17-4PH stainless steel with a rated capacity of 50lb, it delivers a 2 mV/V full-scale output, with nonlinearity, repeatability, and hysteresis errors below ±0.02% of full scale and creep below ±0.03% over 30 minutes. Engineers and OEM designers benefit from a reference maximum platform size of 400 x 400 mm, making it a practical choice for platform-based weighing designs. The environmentally sealed construction carries an IP66 rating, with a safe overload of 150% and a breaking overload of 300% of full scale.
The dimensional drawing and metric/imperial dimension table cover the key housing and mounting dimensions, including the M12 mounting holes (20 mm / 0.79 in depth) and the 1/2-14 NPT thread. Wiring uses a clear cable color code (red excitation+, black excitation-, green signal+, white signal-, bare shield) on a standard 3.4 m, 5.1 mm diameter cable. The specification table also documents input resistance (450 Ω ±100), output resistance (350 Ω ±3), recommended 10 V excitation (15 V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F), with an approximate shipping weight of 2.9 kg, so you have everything needed to integrate the 651PS without guesswork.
The 651PS is RoHS compliant and is ordered under part number 651PS-50lb, giving dealers, service technicians, and procurement teams a single, clearly identified part number to specify.
