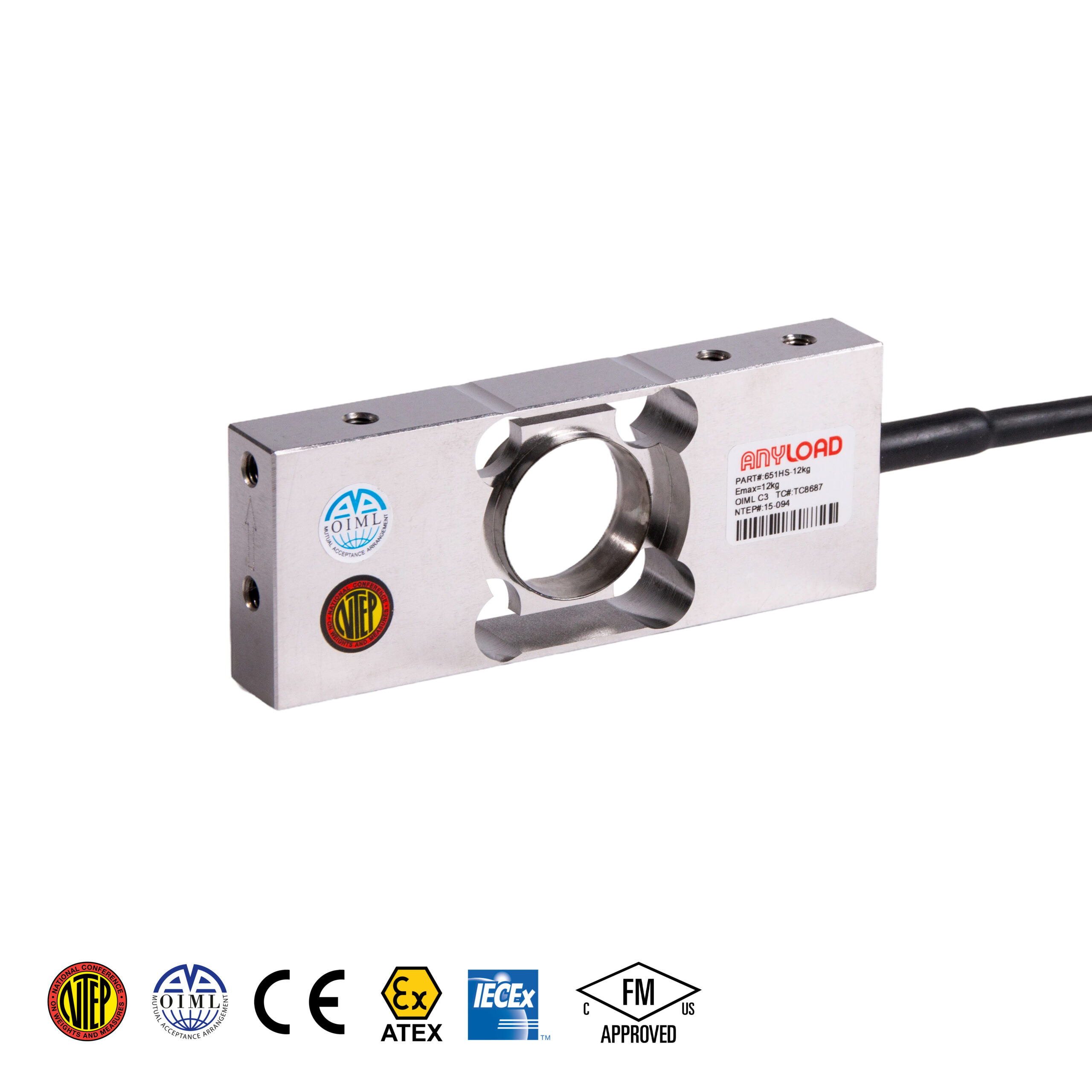

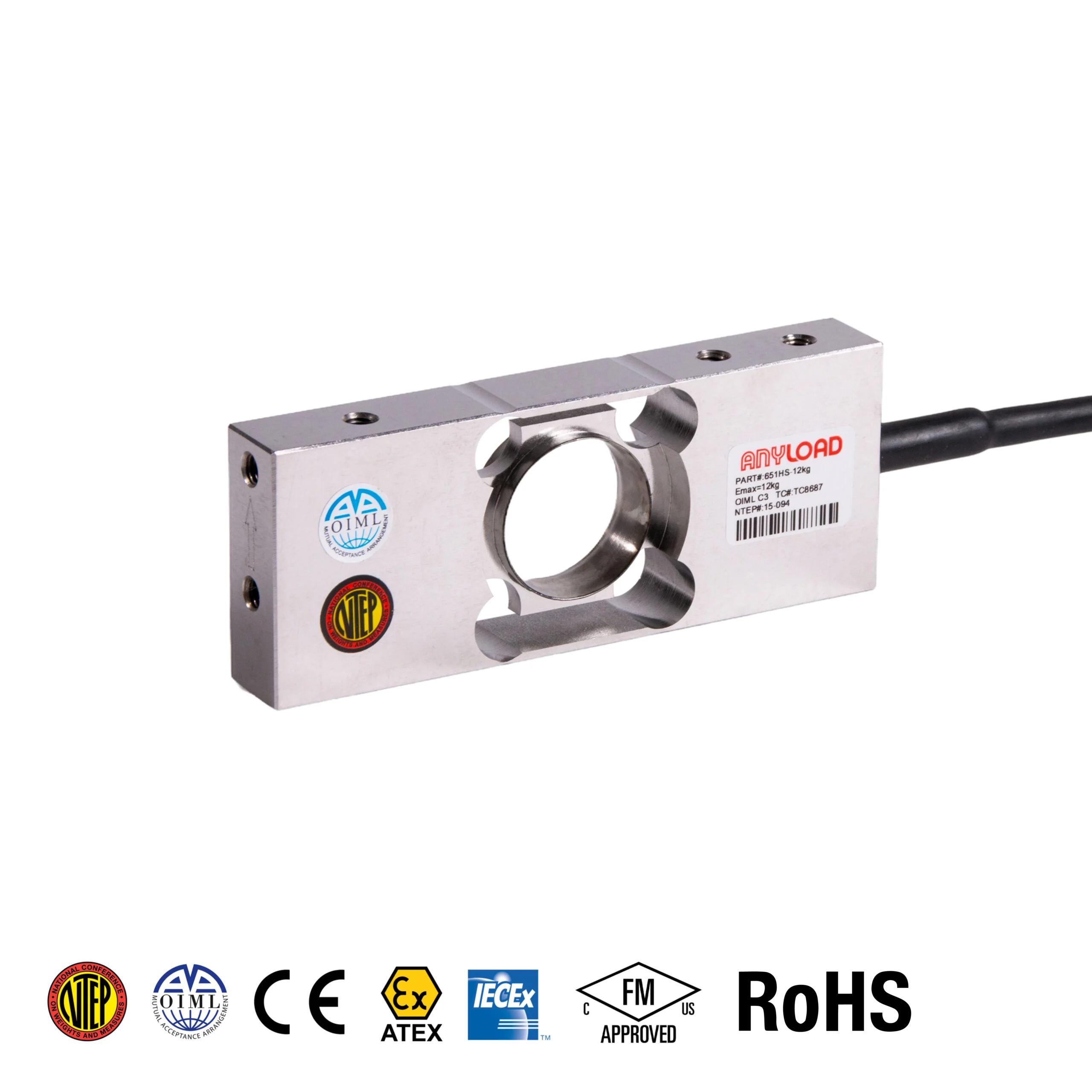

651HS Stainless Steel Single Point Load Cell Transducer

651HS Single Point Load Cell

Description:

OIML certified C9 from 10kg-100kg, this single point load cell is the highest accuracy legal-for-trade load cell available in the world. With IP68 stainless steel construction, 14°F to 122°F temperature compensation, and 150% safe overload, the 651HS is the ultimate weighing solution suited to an immense variety of applications.

Features:

  • Material: Stainless steel
  • Rated Capacities: 6kg, 12kg, 20kg, 30kg, 50kg, 60kg
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68/69K
  • OIML MAA C9, Y=18 000 certified from 10kg-100kg
  • OIML MAA C4, Y=26 000 certified from 101kg-500kg
Clear
Product Enquiry
SKU: N/A Category:
Rated Capacities 6kg, 12kg, 20kg, 30kg, 50kg, 60kg
Reference Max. Platform Size 350mm x 350mm
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.03%
Repeatability < ± 0.02%
Hysteresis Error < ± 0.03%
Creep in 30 minutes < ± 0.03%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 651HS-(6-60)kg

Note: You may need a software that can open/view STEP files.

pdf- OIML Certificate of Conformity

pdf- NTEP Certificate of Conformity

Manufacturer Model
Vishay Revere Transducers HPSM
