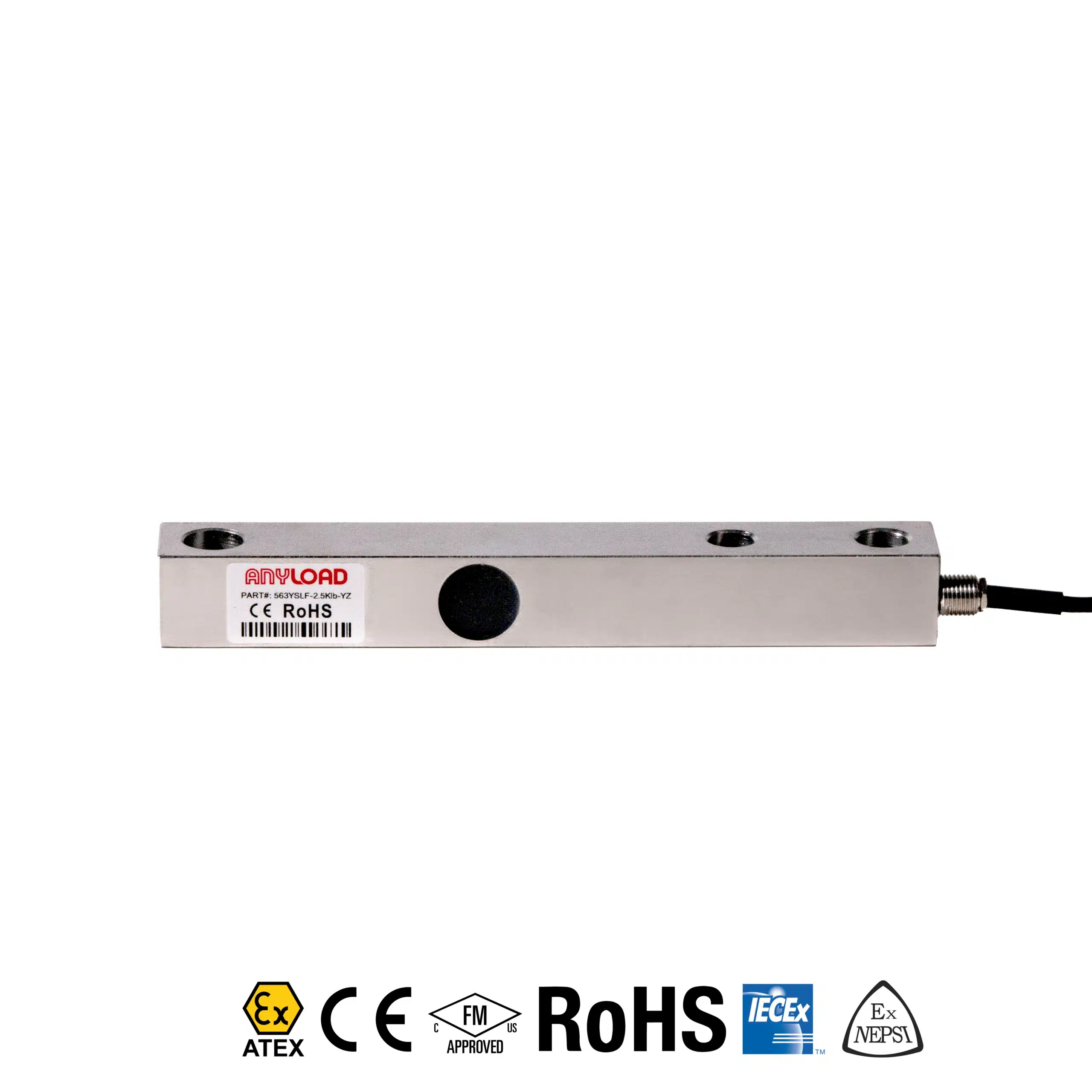

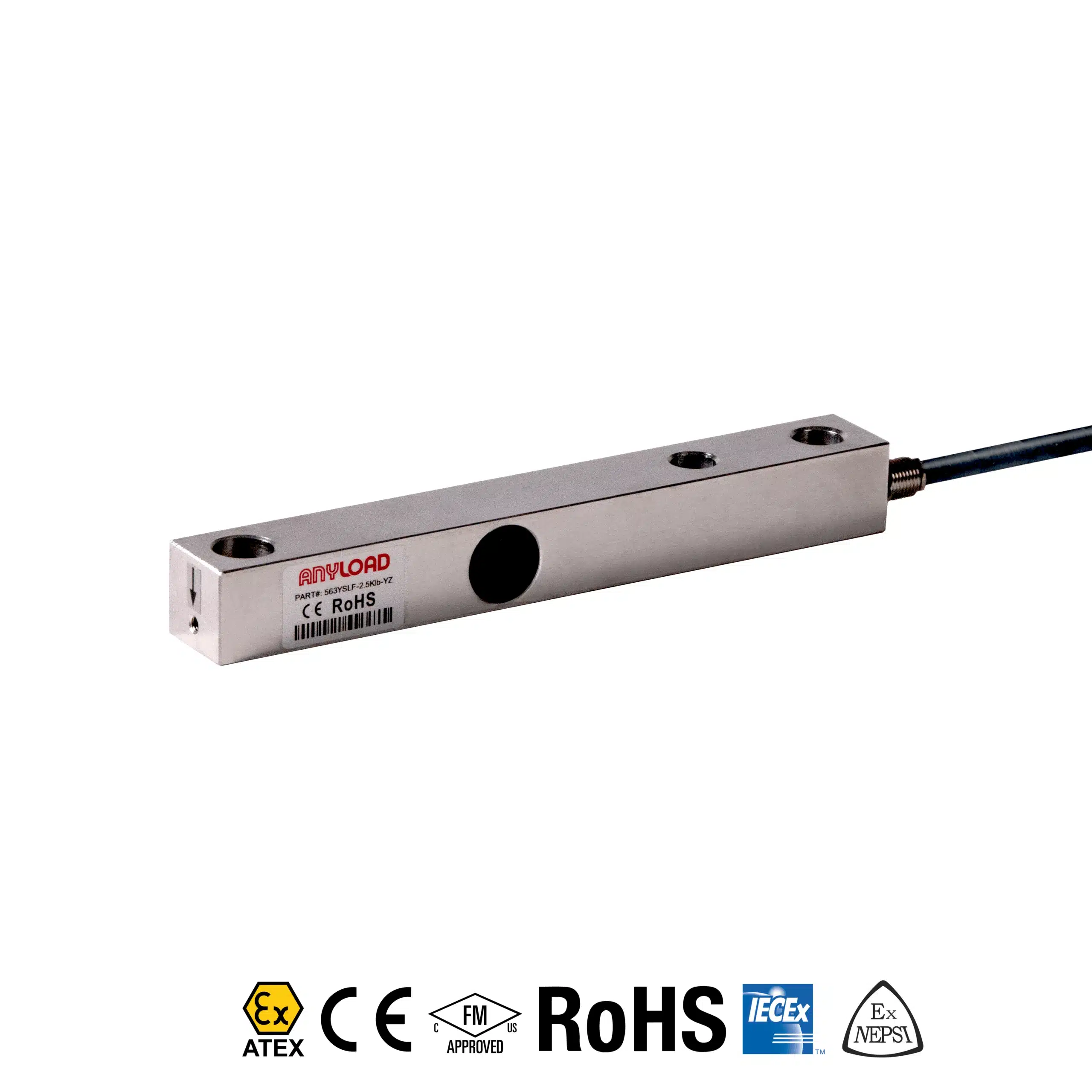

563YSLF Single Ended Beam Load Cell
The ANYLOAD 563YSLF is a single-ended beam load cell machined from 2Cr13 stainless steel, available in capacities of 1.5Klb, 2.5Klb, and 5Klb. Designed for platform and bench scale applications, it delivers a full scale output of 2.0 mV/V ±0.25% with non-linearity and hysteresis error both below ±0.030%, making it well-suited for industrial and commercial weighing systems that require consistent, repeatable measurement.
The 563YSLF features an IP67 environmentally sealed construction and a compensated temperature range of -10°C to 50°C (14°F to 122°F), providing reliable performance in washdown, food processing, and general industrial environments. With a safe overload rating of 150% and breaking overload of 300% of full scale, the load cell is built to withstand real-world mechanical stress without compromising measurement integrity. Its 1000Ω input and output resistance and 10V recommended excitation (15V maximum) make it compatible with a wide range of weighing indicators and controllers.
Available in ATEX, FM, and IECEx approved variants (carrying the “-Ex” suffix), the 563YSLF is suitable for use in hazardous and explosive atmospheres. It is verified as interchangeable with comparable single-ended beam load cells from Coti Global (CG-BLF), HBM (BLF), and Fairbanks (3-53581-X, 3-52921-1), offering a reliable drop-in alternative for OEM and replacement applications. RoHS compliant and CE marked, the 563YSLF is backed by ANYLOAD’s precision manufacturing standards and is well-suited for integration into floor scales, platform scales, retail weighing, and light industrial process weighing systems.
Features
- Rated capacities: 1.5Klb – 5Klb
- 2Cr13 stainless steel construction for enhanced durability
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- FM / ATEX / IECEx certified optional
Specifications
| Rated Capacities | 1.5Klb – 5Klb |
|---|---|
| Full Scale Output | 2.0 mV/V ± 0.25% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 min. | < ± 0.030% |
| Input Resistance | 1000Ω ± 15 |
| Output Resistance | 1000Ω ± 5 |
| Element Material | 2Cr13 Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
Interchangeable
| HBM | BLF |
|---|---|
| Coti Global | CG-BLF |
| Fairbanks | 3-53581-X |
| Fairbanks | 3-52921-1 |
