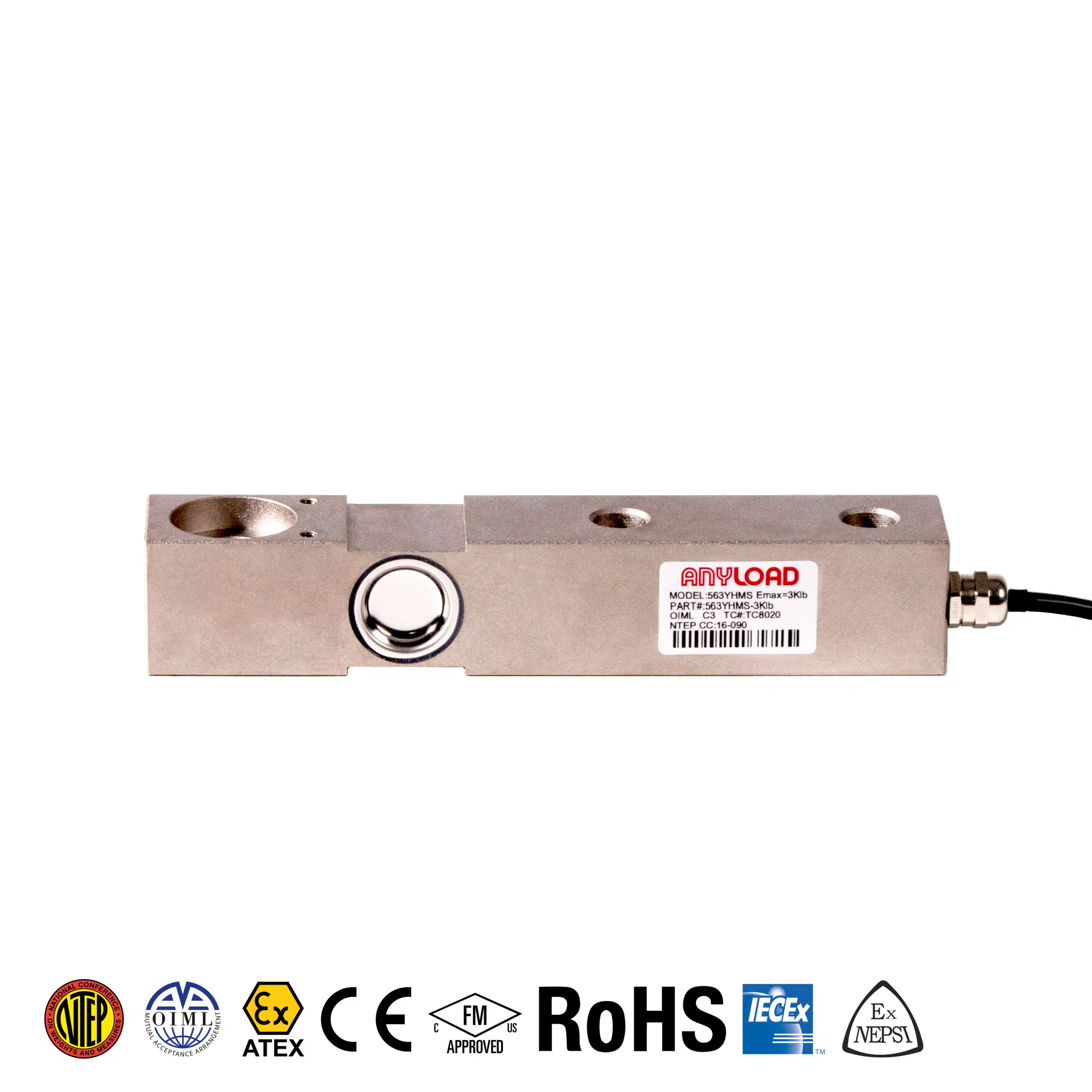

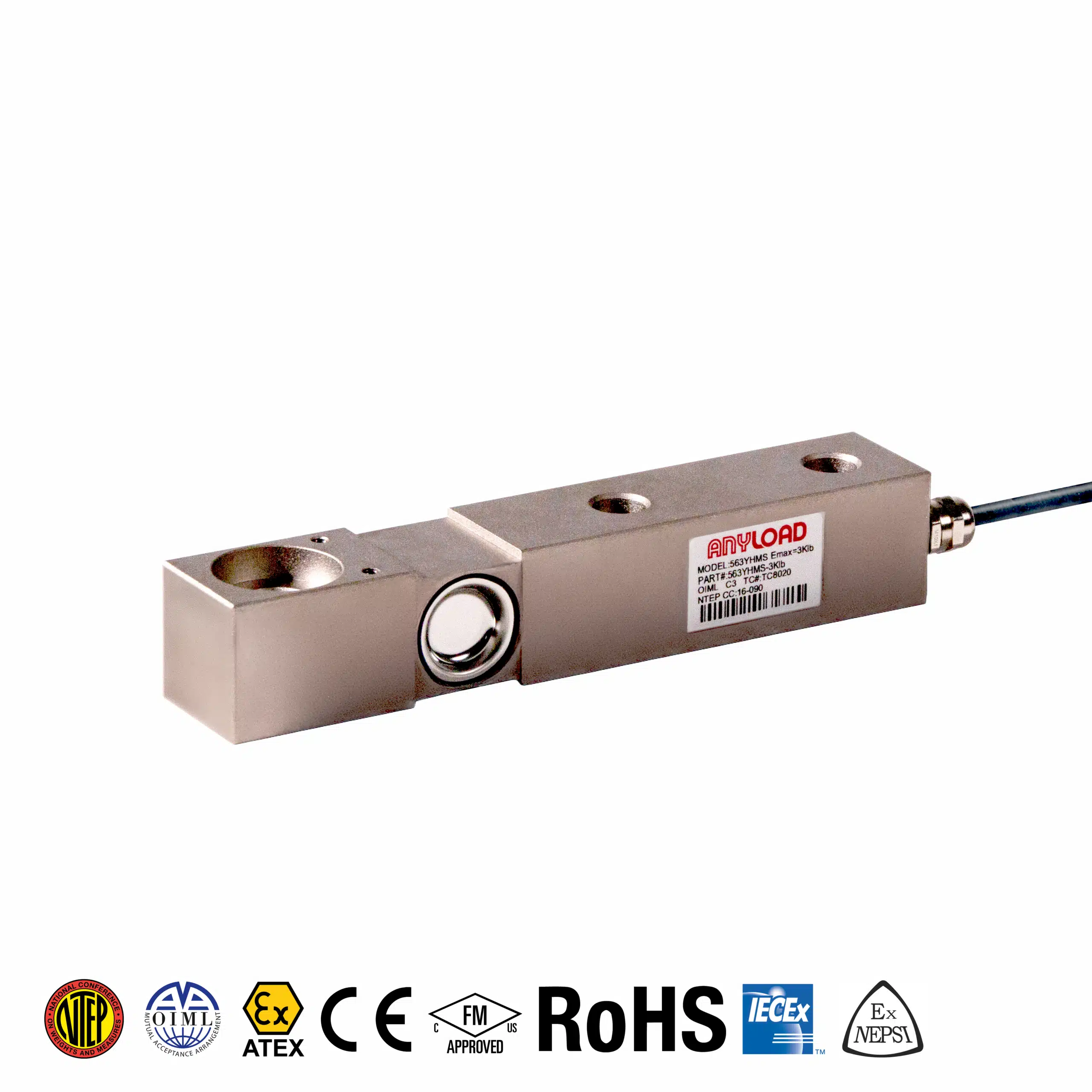

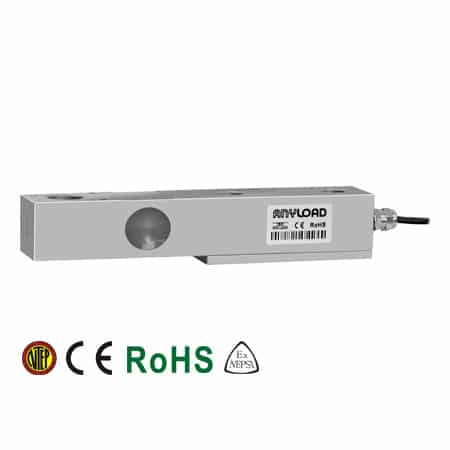

563YHMS Single Ended Beam Load Cell
Description:
The 563YHMS is a heavy-duty IP67 water-resistant weighing solution with superior accuracy and cost-effectiveness. It is interchangeable with Rice Lake (RLSB2MLW, RLSB2L) and Mettler-Toledo (ML4311-4449). Common applications include platform weighing, truck & rail scales, hopper weighing, and more.
Features:
- Material: Alloy steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 20Klb
- Full Scale Output: 2mV/V ยฑ 0.07%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- 1Klb-3Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
5Klb-20Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell - 1Klb-5Klb: up to OIML MAA C5, Y=26 000;
10Klb-30Klb: up to OIML MAA C6, Y=8 500 - CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 20Klb |
| Full Scale Output | 2mV/V ยฑ 0.07% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 350ฮฉ ยฑ 7ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | –30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Rice Lake | RLSB2MLW* |
| Rice Lake | RLSB2L** |
| Mettler -Toledo | ML4311-4449 |
| Coti Global | CG-SB2L/SB2M |
| Coti Global | CG-743 |
ย
* Rice Lake RLSB2MLW is stainless steel for capacities 1Klb-20Klb
** Rice Lake RLSB2L is alloy steel for capacities 35Klb and 45Klb
