108TSVS Single Point Load Cell, Stainless Steel, Environmentally Sealed, IP66

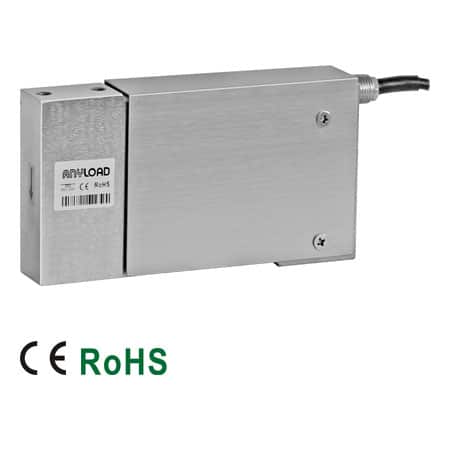

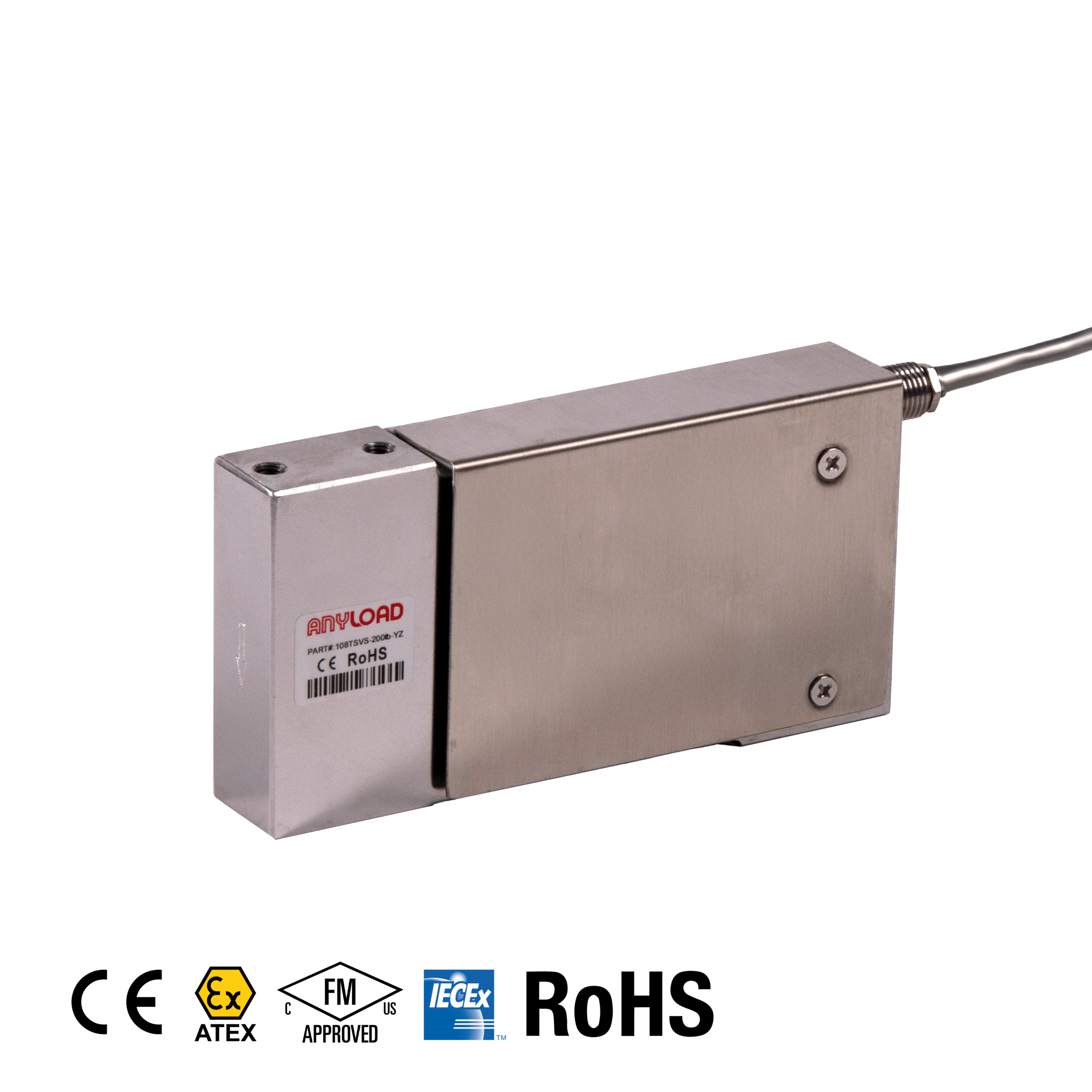

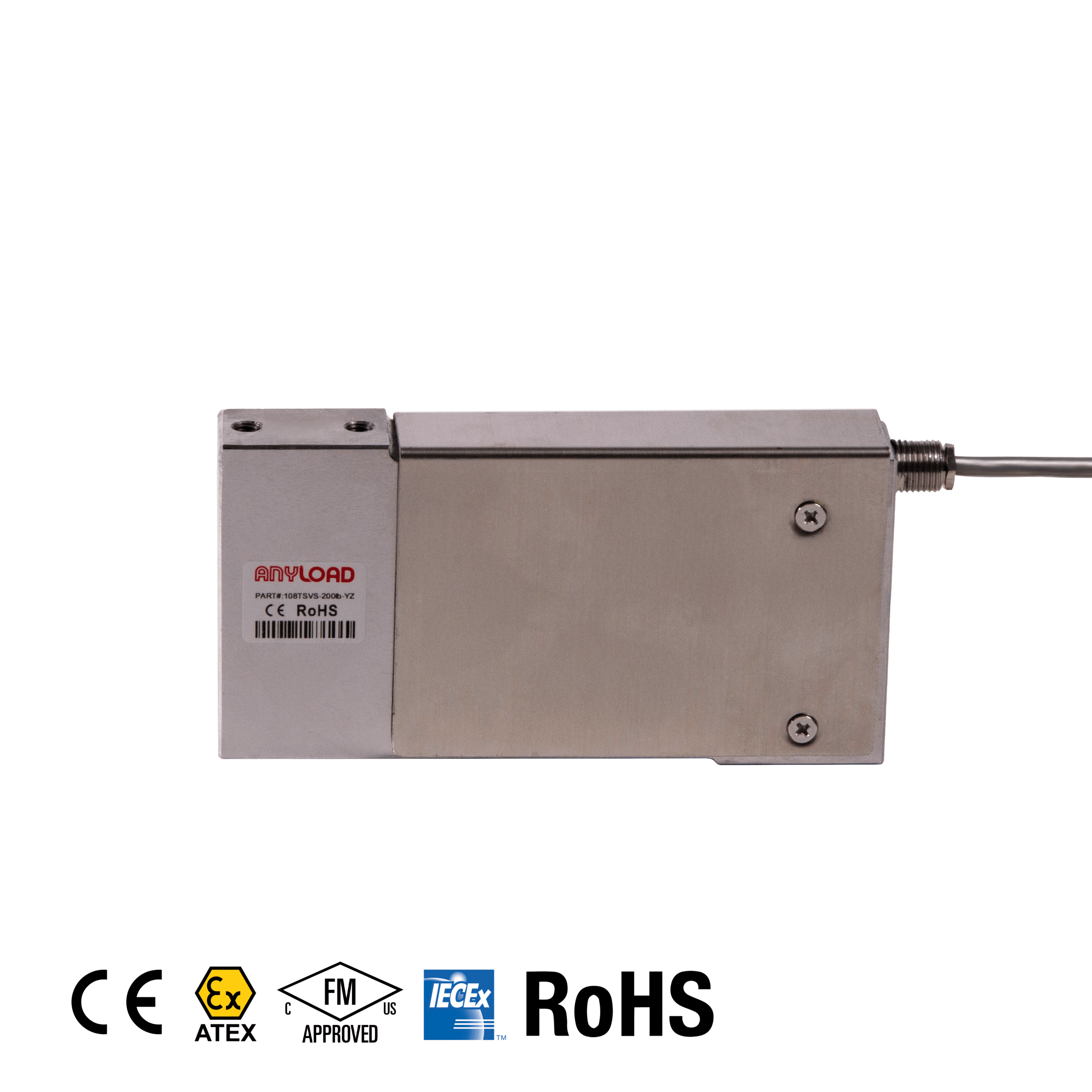

108TSVS Single Point Load Cell

Description:

The 108TSVS is a tough water- and corrosion-resistant stainless steel single-point load cell. Its versatile design makes it suitable for a wide range of weighing needs, providing excellent performance against eccentric loading and harsh environments. Common applications include hopper scales, belt scales, conveyor scales, process weighing, and more. The 108TSVS is interchangeable with Vishay Sensortronics 60048.

Features:

  • Material: Stainless steel
  • Rated Capacities: 50lb, 100lb, 200lb, 400lb, 500lb, 1Klb
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Clear
Product Enquiry
SKU: N/A Category: Tag:
Rated Capacities 50lb, 100lb, 200lb, 400lb, 500lb, 1Klb
Reference Max. Platform Size < 500lb 500mm x 500mm
Reference Max. Platform Size > 1Klb 750mm x 750mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.017%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Rated Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108TSVS-(50-1000)lb

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Coti Global CG-60048
Vishay Sensortronics 60048
