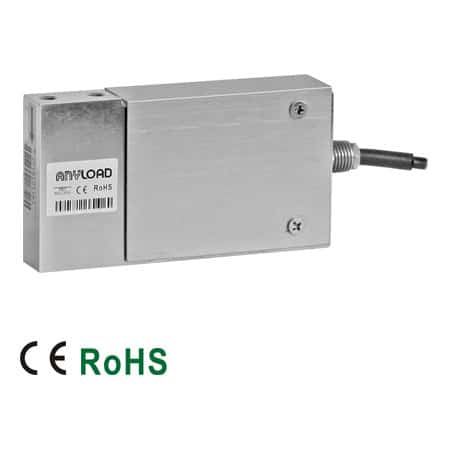

108TSST Single Point Load Cell
Description:
The 108TSST is a robust and cost-effective stainless steel single-point load cell built for high-performance weighing in lower-capacity applications. This model delivers high-precision results without compromising affordability to a wide range of uses, including hopper scales, check weighing, process weighing, retail scales, livestock weighing, and more. The 108TSST is also interchangeable with Vishay Sensortronics 60051.
Features:
- Material: Stainless steel
- Rated Capacities: 10lb, 15lb, 25lb, 50lb, 100lb
- Full Scale Output: 2mV/V ยฑ 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
| Rated Capacities | 10lb, 15lb, 25lb, 50lb, 100lb |
| Reference Max. Platform Size < 25lb | 200mm x 250mm |
| Reference Max. Platform Size > 50lb | 300mm x 300mm |
| Full Scale Output | 2mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 385ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Artech | SS60210 |
| Coti Global | CG-51 |
| Vishay Sensortronics | 60051 |
