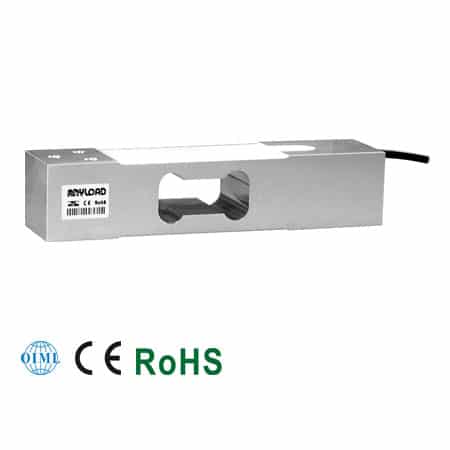

108TAAL Single Point Load Cell

Description:

The 108TAAL is an OIML-certified single-point that provides high-accuracy performance while maintaining affordability. This model is ideal for lower capacity applications, including platform scales, retail scales, process weighing, and more. The 108TAAD is interchangeable with A&D LC-4103.

Features:

  • Material: Aluminum
  • Rated Capacities: 30kg, 60kg, 150kg
  • Full Scale Output: 1mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • OIML C3 certified from 30kg-200kg
  • CE and RoHS certified
Rated Capacities 30kg, 60kg, 150kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 1mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range 10°C to 40°C/14°F to 104°F
Service Temperature Range 18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108TAAL-(30-150)kg

Note: You may need a software that can open/view STEP files.

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
A & D LC-4103
