108QS Single Point Load Cell

Description:

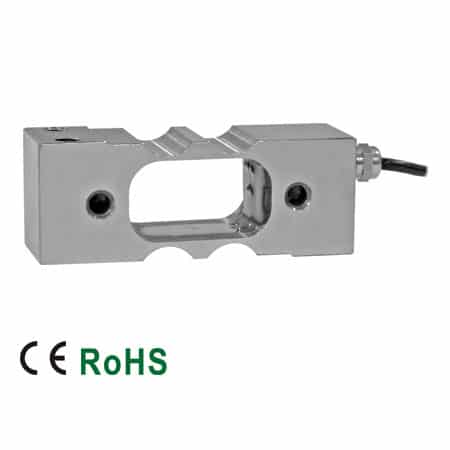

The 108QS is a tough stainless steel single-point load cell with a wide range of rated capacities up to 1Klb. This simple, easy-to-install, and affordable model is resistant to irregular loading and is also interchangeable with Cardinal SP6lb-100lb. Common applications include platform scales, bench scales, check weighing, and more.

Features:

  • Material: Stainless steel
  • Rated Capacities: 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Rated Capacities 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb
Reference Max. Platform Size ≤ 100lb 400mm x 450mm
Reference Max. Platform Size 200lb 500mm x 550mm
Reference Max. Platform Size ≥ 500lb 650mm x 700mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range 10°C to 40°C/14°F to 104°F
Service Temperature Range 18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108QS-(6-100)lb

pdf- 108QS-(200-1000)lb

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Cardinal SP 6lb-100lb*
Cardinal SP 200lb, 500lb, 1000lb
Coti Global CG-SPL
Coti Global CG-SPLM



* Cardinal SP 6lb-100lb capacities have aluminum elements
