108PA Single Point Load Cell, Aluminum, Environmentally Sealed, IP66

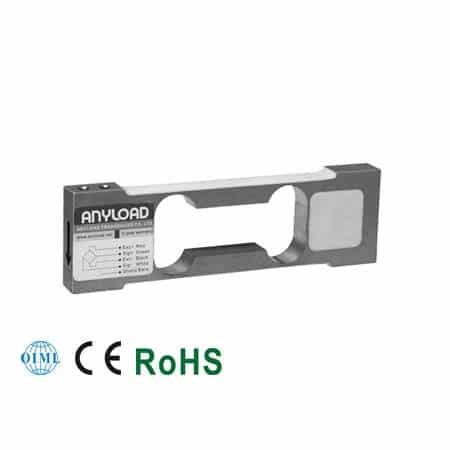

108PA Single Point Load Cell

Description:

The 108PA is a compact high-accuracy OIML-certified single-point load cell. This model is ideal for high precision applications such as jewelry scales, pharmaceutical scales, cannabis scales, and other sensitive weighing needs. The 108PA is interchangeable with Vishay Tedea-Huntleigh 1004 and HBM SPL.

Features:

  • Material: Aluminum
  • Rated Capacities: 200g, 300g, 600g, 1kg, 2kg, 3kg, 6kg
  • Full Scale Output: 1mV/V ± 20%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • OIML C3 certified from 1kg-500kg
  • CE and RoHS certified
Clear
Product Enquiry
SKU: N/A Categories: , Tag:
Rated Capacities 200g, 300g, 600g
Reference Max. Platform Size 200mm x 200mm
Full Scale Output 1mV/V ± 20%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.050%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
Reference Mounting Socket-head cap screw: M3-6

Tightening torque: 2Nm

Rated Capacities 1kg, 2kg, 3kg, 6kg
Reference Max. Platform Size 230mm x 230mm
Full Scale Output 1mV/V ± 20%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
Reference Mounting Socket-head cap screw: M3-6

Tightening torque: 2Nm

pdf- Download data sheet

pdf- 108PA-(200-6000)g

Note: You may need a software that can open/view STEP files.

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
HBM SPL
Vishay Tedea-Huntleigh 1004
