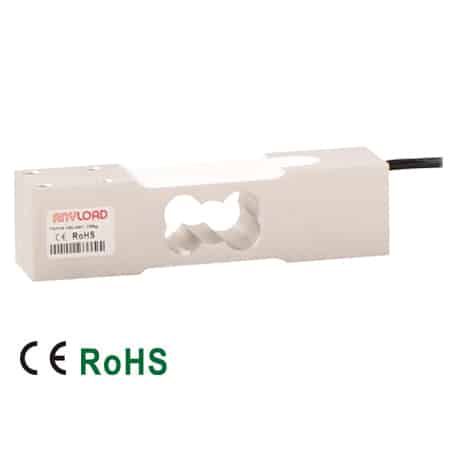

108LAMT Single Point Load Cell
The 108LAMT Single Point Load Cell from ANYLOAD is constructed from clear-anodized aluminum and designed for platform scales with a reference maximum platform size of 500 × 500 mm. It offers rated capacities of 30 kg, 50 kg, 60 kg, 100 kg, 150 kg, 200 kg, and 300 kg, with a 2 mV/V ±10% full scale output. The load cell features IP66 environmental sealing, along with 150% safe overload and 300% breaking overload for dependable performance in demanding weighing applications.
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 50kg, 60kg, 100kg, 150kg, 200kg, 300kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Specifications
| Rated Capacities | 30kg, 50kg, 60kg, 100kg, 150kg, 200kg, 300kg |
|---|---|
| Reference Max. Platform Size | 500mm x 500mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Anyload | 108JA-21 |
|---|---|
| Mettler Toledo | MT1241 |
