ANYLOAD | 108AA3MUN Single Point Load Cell

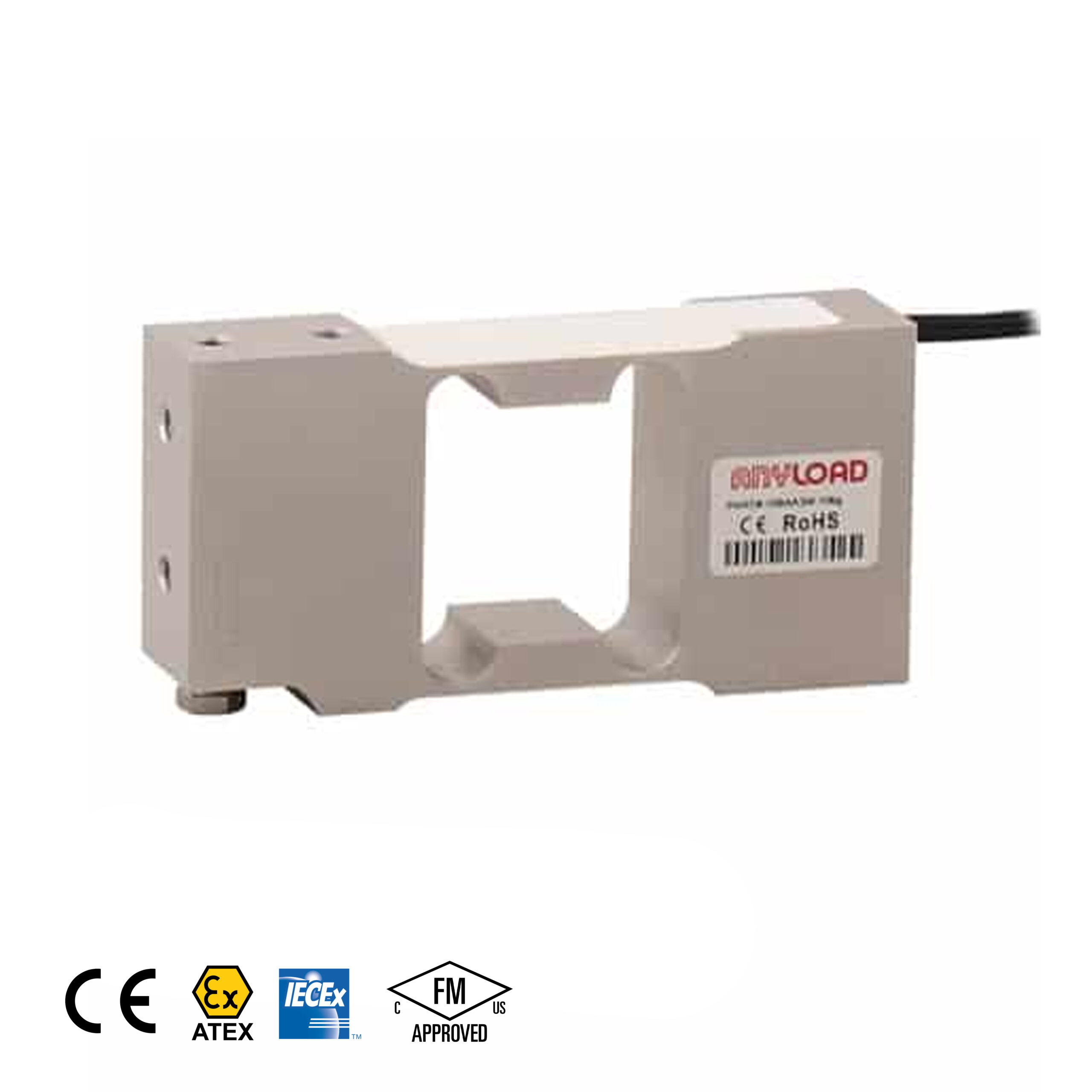

108AA3MUN Single Point Load Cell

Description:

Offering superior value and reliability, the 108AA3MUN is a robustly designed single-point load cell popularly used in packaging scales and other direct mounting applications. The 108AA3MUN is interchangeable with Avery Weigh-Tronix FLS and Rice Lake RLFLS.

Features:

  • Material: Aluminum
  • Rated Capacities: 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 90kg
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
  • CE and RoHS certified
Clear
Product Enquiry
Rated Capacities 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 90kg
Reference Max. Platform Size 500mm x 500mm
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.030%
Hysteresis Error < ± 0.030%
Creep in 30 minutes < ± 0.030%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Vishay Tedea-Huntleigh 1010
Vishay Tedea-Huntleigh 1015
