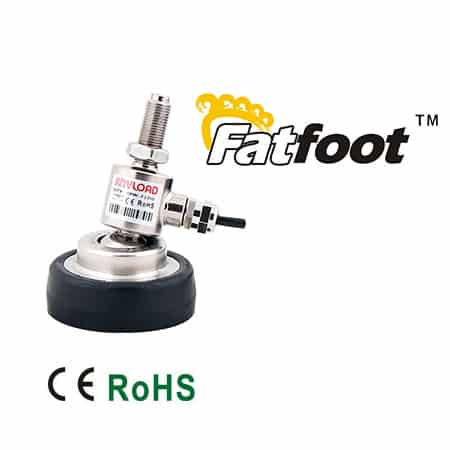

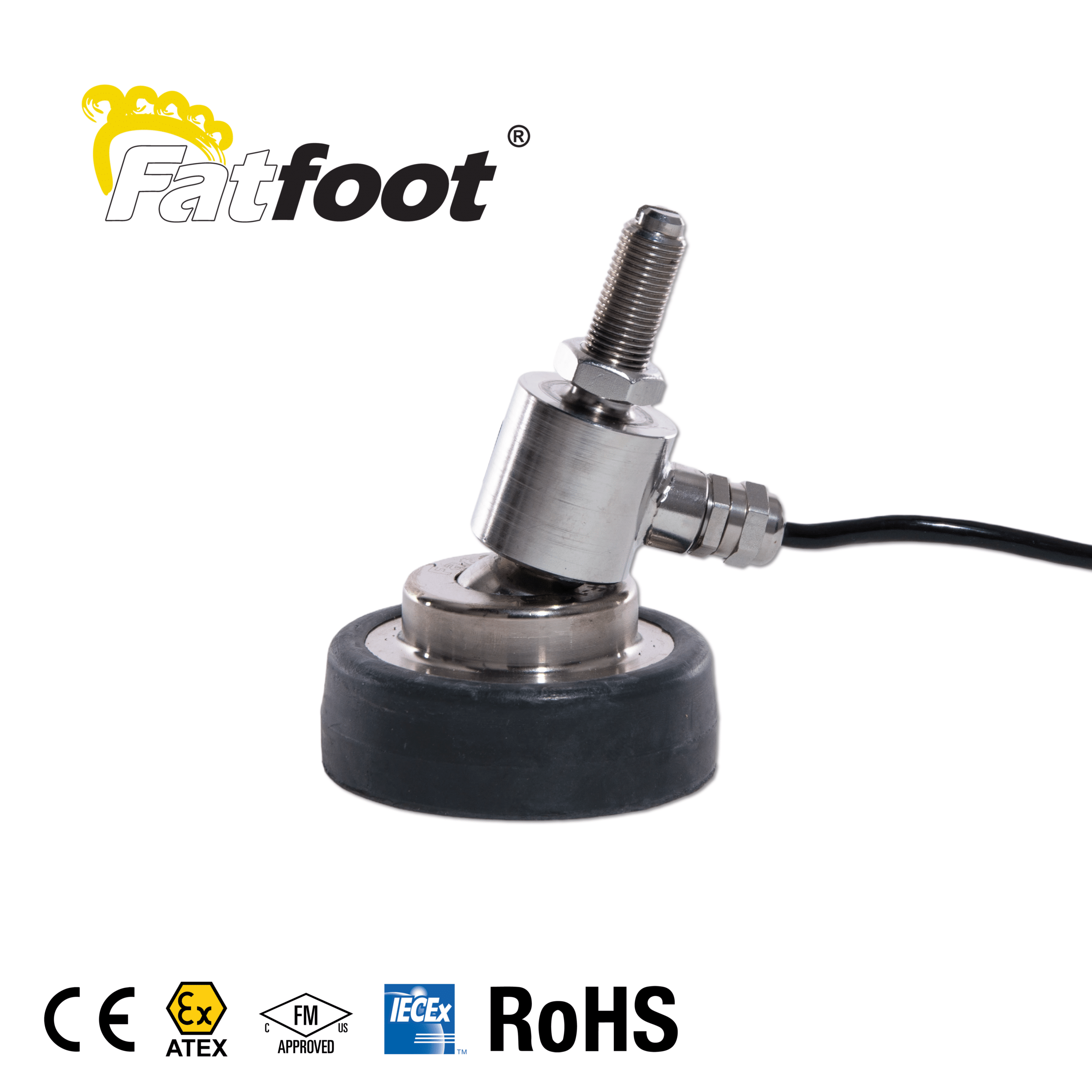

106MS-F-YZ FatFoot Load Cell with Fixed Cable
Description:
The Fatfoot™ load cell integrates a load cell foot with a patented custom-designed load cell that provides an elegant and time-saving weighing solution for a wide range of applications. Engineered to be center-pivoted, self-checking, and with a 50% rated safe lifting protection, the Fatfoot™ leads the industry in load cell innovation. Six meters of cable is fixed to the load cell for easy integration and is a user-friendly solution that is efficient, cost-effective, and requires no professional training. Common applications include hopper weighing, floor scales, tank weighing, and many more.
Features:
- Material: Stainless steel
- Rated Capacities: 500kg, 1t, 2t, 5t, 10t, 1Klb, 2.5Klb, 5Klb, 10Klb, 20Klb
- Full Scale Output: 2.0mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
- Multiple patents, innovative design
- User friendly, professional training not required
- Compact structure saves more space than traditional weigh modules
- Cable (6m) is fixed to load cell
| Rated Capacity | 500kg, 1t, 2t, 5t, 10t, 1Klb, 2.5Klb, 5Klb, 10Klb, 20Klb |
| Full Scale Output | 2.0mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | Cap. 2t: <±0.050%; Cap.>2t: <±0.2% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.050% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 380Ω ±20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
Note: You may need a software that can open/view STEP files.
