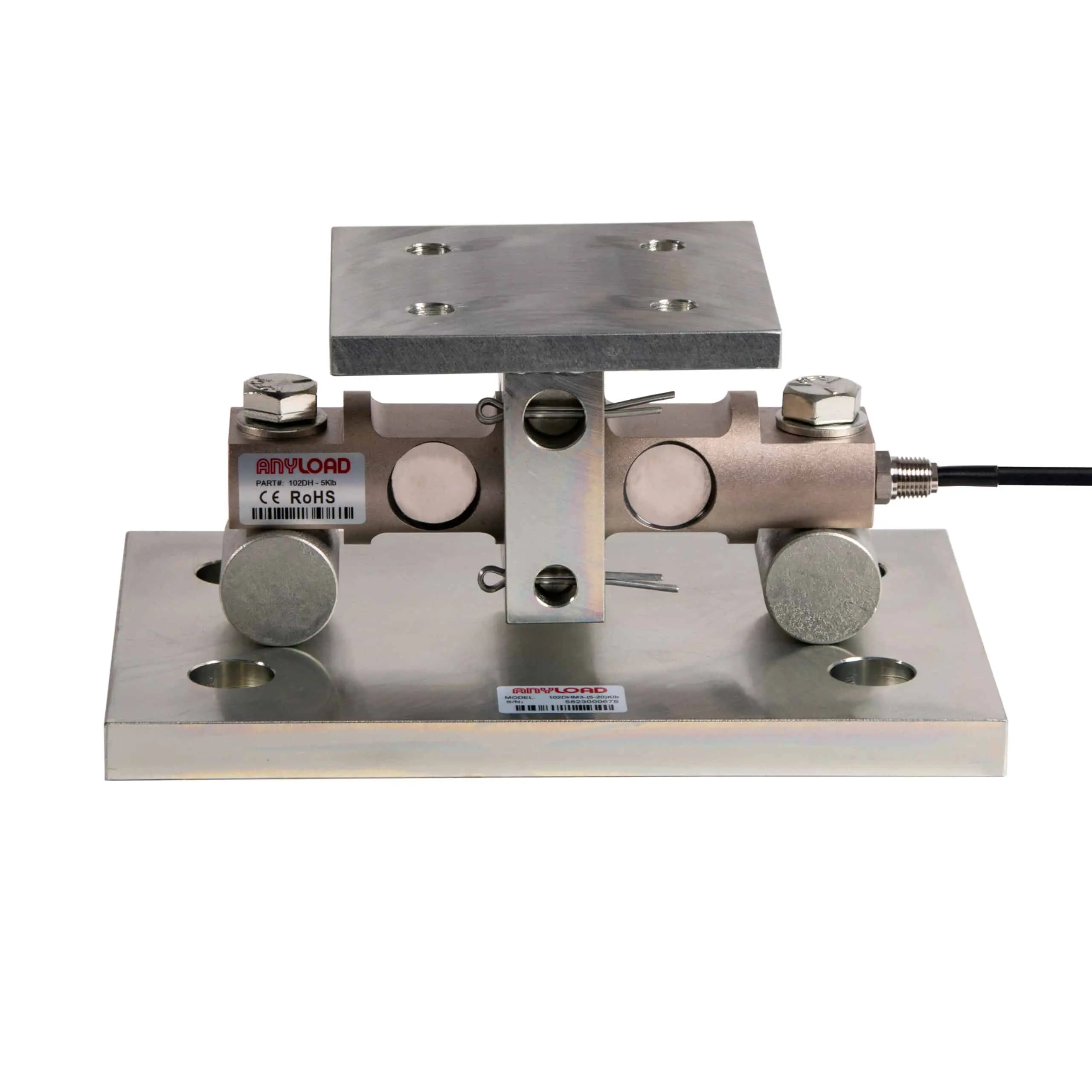

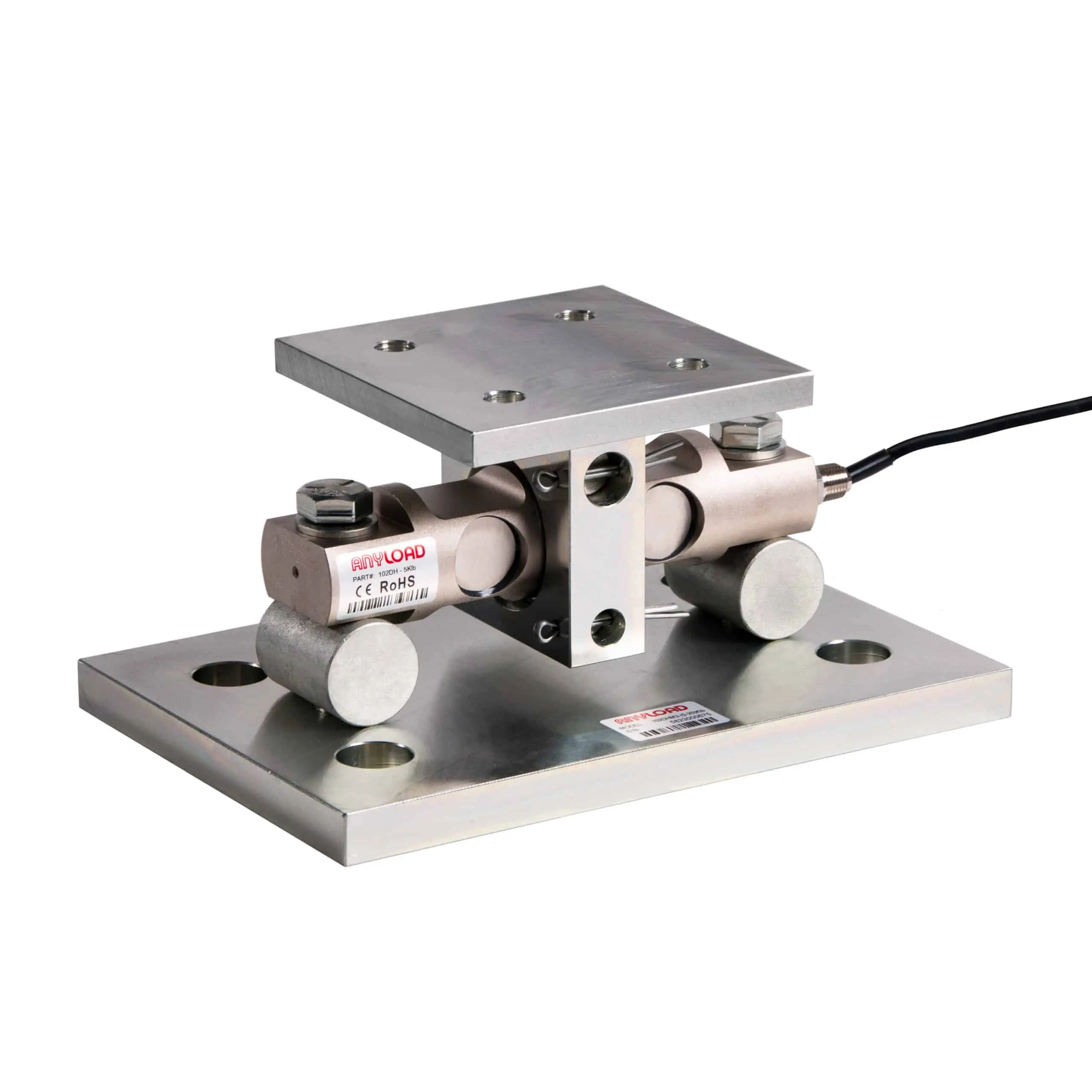

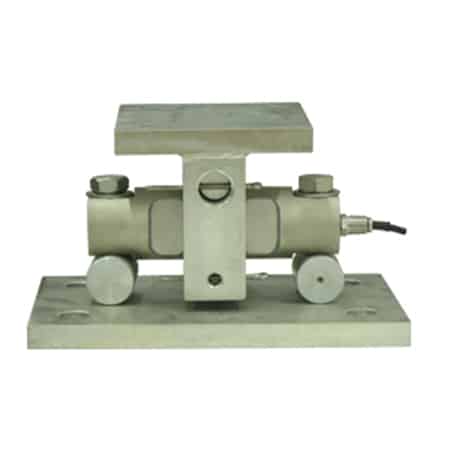

102DHM3 Compression Weigh Module

The ANYLOAD 102DHM3 Compression Weigh Module is a rugged, high-performance weighing component designed for precise compression load measurement. Built for industrial scale systems, it delivers dependable accuracy and durability in heavy-duty applications.

Assembles: 102DH double ended beam load cell
Material: Alloy steel
Capacities: 5Klb-250Klb
NTEP certified load cells from 10Klb-100Klb
OIML certified load cells from 9t-45t
CE , RoHS and Ex certified load cells
Center pivoted and self-checking with 50% rated load anti-lifting and side force protection
Sliding pin design compensates for thermal expansion and contraction
Load cell not included

Datasheet

Part Number

Clear

Features

Assembles: 102DH Double Ended Beam Load Cell
Material: Alloy steel
Capacities: 5Klb-250Klb
NTEP certified load cells from 10Klb-100Klb
OIML certified load cells from 9t-45t
CE , RoHS and Ex certified load cells
Center pivoted and self-checking with 50% rated load anti-lifting and side force protection
Sliding pin design compensates for thermal expansion and contraction
Load cell not included
