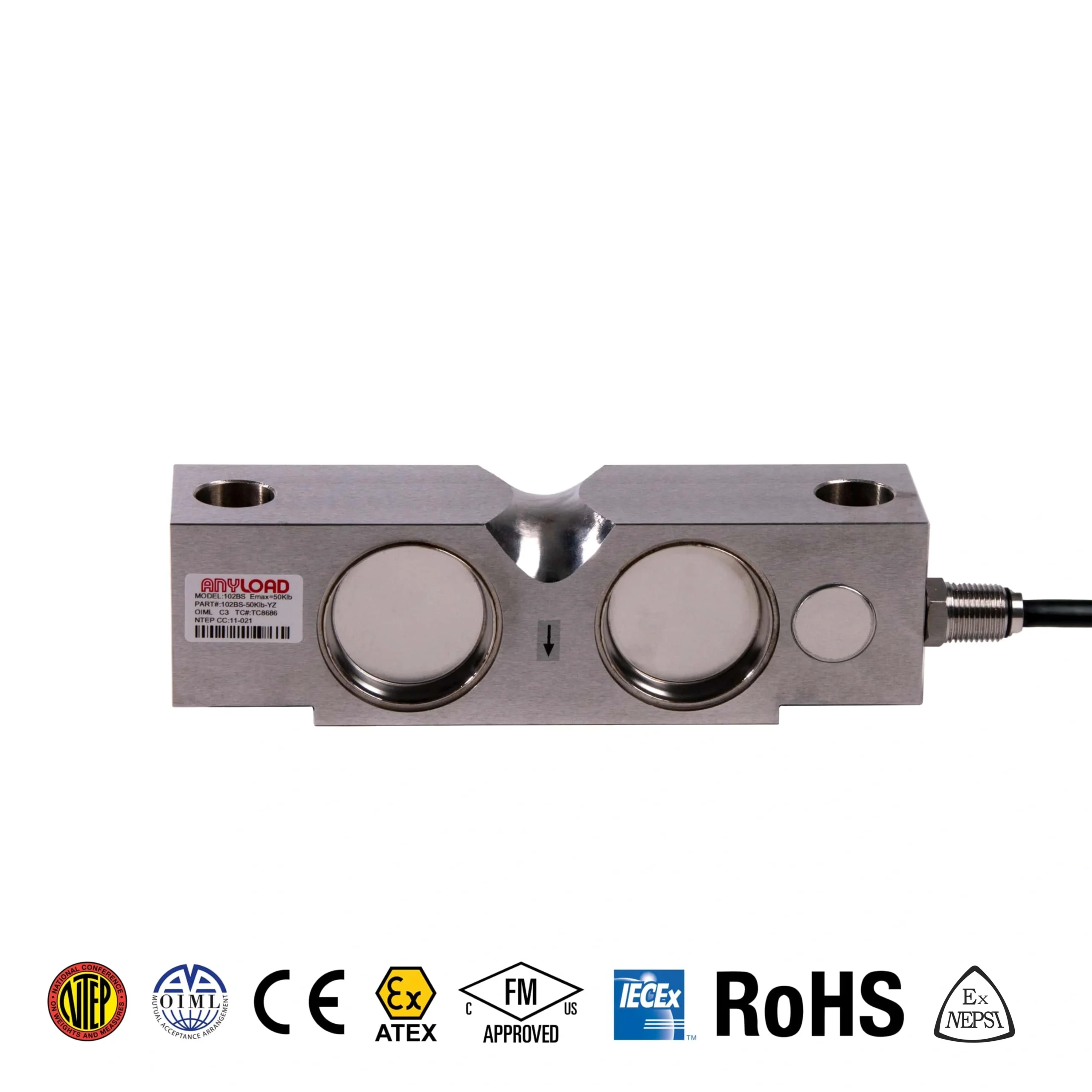

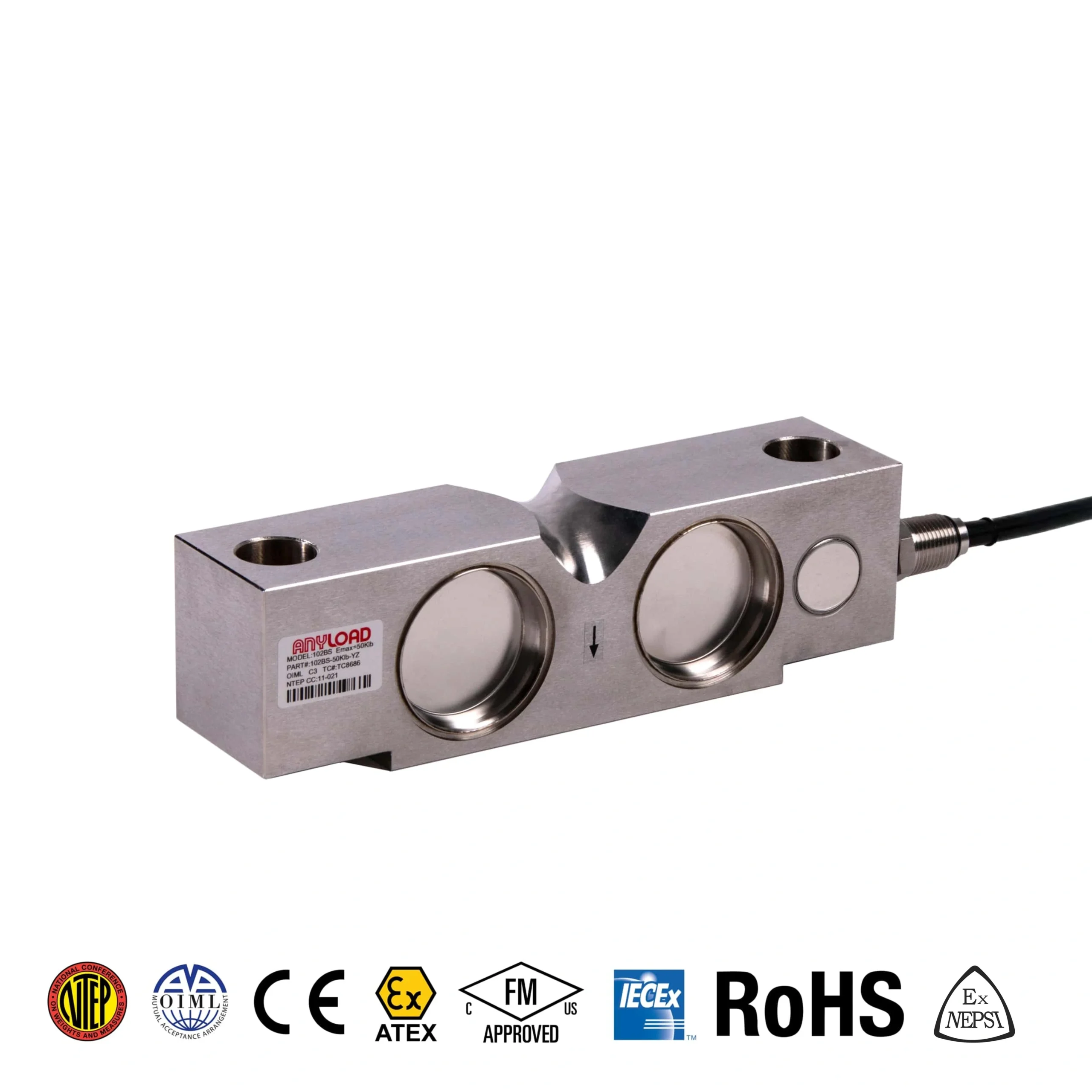

102BS Double Ended Beam Load Cell

The 102BS is an OIML and NTEP-certified robust double-ended beam built to perform reliably under hostile environments. The welded sealed and stainless steel IP68-class water resistance is a superior compression weighing solution ideal for automotive, rail/track, and other heavy-duty applications. The 102BS is interchangeable with Artech SS70310, Rice Lake 75060S, Vishay Revere 9303, and Sensortronics 65058S.

Material: Stainless steel
Rated Capacities: 10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb
Full Scale Output: 3 mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP68
NTEP: 25Klb-125Klb: NTEP 1:10000 Class IIIL, Multiple Cell
OIML: 11t-55t: OIML MAA C5, Y=15000
CE, RoHS and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Datasheet

Part Number

Clear

Features

Material: Stainless steel
Rated Capacities: 10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb
Full Scale Output: 3 mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP68
NTEP: 25Klb-125Klb: NTEP 1:10000 Class IIIL, Multiple Cell
OIML: 11t-55t: OIML MAA C5, Y=15000
CE, RoHS and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Specifications

Rated Capacities	10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb
Full Scale Output	3mV/V ± 0.25%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.030%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.023%
Creep in 30 minutes	< ± 0.023%
Input Resistance	700Ω ± 10Ω
Output Resistance	700Ω ± 5Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0040% of Cn/k
Compensated Temperature Range	–10°C to 50°C/14°F to 122°F
Service Temperature Range	–30°C to 70°C/-20°F to 160°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Welded seal
IP Rating	IP68
