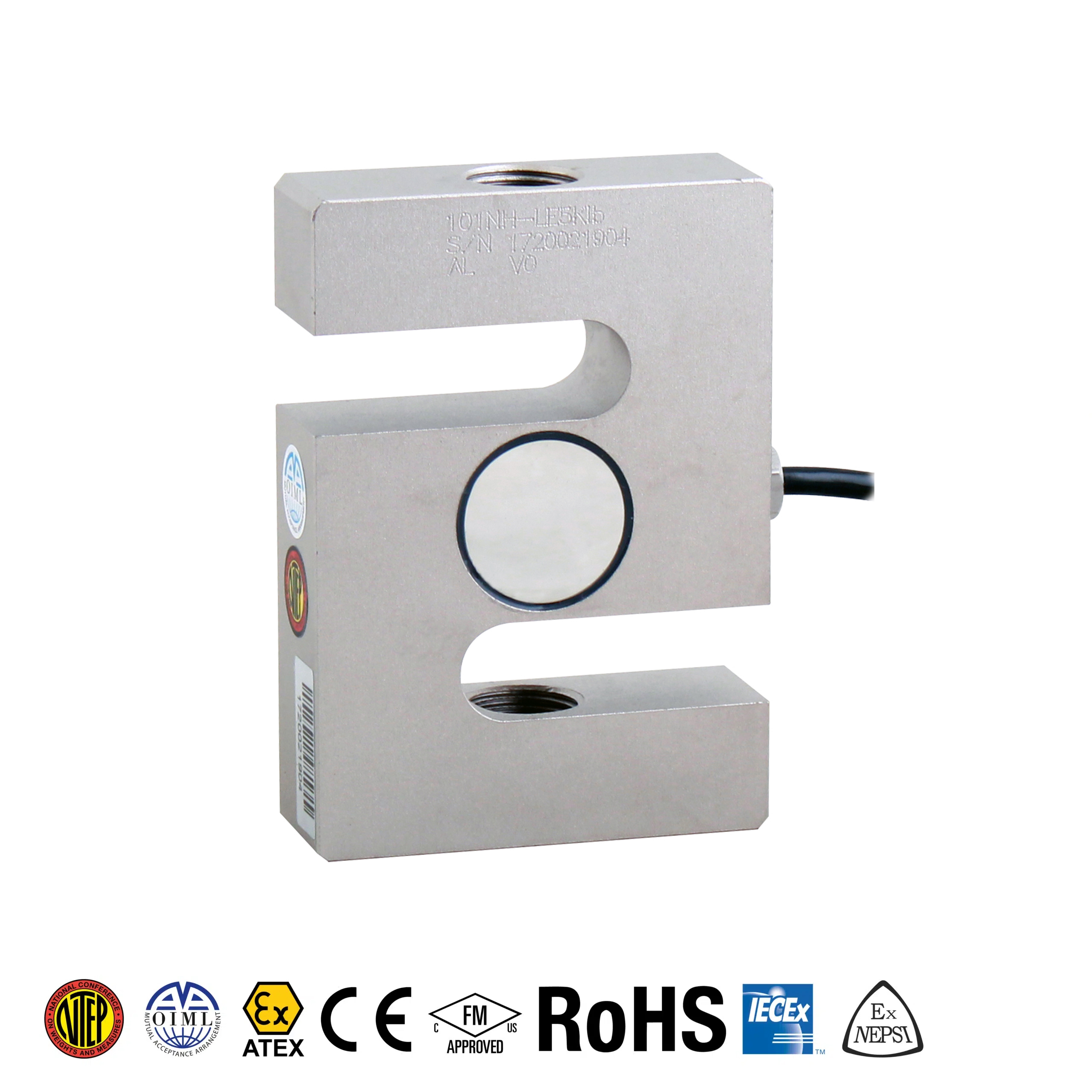

101NH-LE S-Beam Load Cell

The Anyload 101NH-LE is a precision force transducer S-Beam Load Cell designed for reliable tension and compression measurement in industrial weighing and force monitoring applications. Made from robust alloy steel and sealed to IP67 for excellent environmental protection, this S-beam offers stable, linear output with low non-linearity and repeatability errors.

Material: Alloy steel
Rated Capacities: 5Klb, 10Klb
Full Scale Output: 3.0mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
NTEP 1:5000 Class III, Multiple Cell certified from 5Klb-10Klb
OIML MAA C4.5, Y=14000
CE, RoHS, and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Datasheet

Part Number

Clear

Features

Material: Alloy steel
Rated Capacities: 5Klb, 10Klb
Full Scale Output: 3.0mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
NTEP 1:5000 Class III, Multiple Cell certified from 5Klb-10Klb
OIML MAA C4.5, Y=14000
CE, RoHS, and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Specifications

Rated Capacities	5Klb, 10Klb
Full Scale Output	3.0mV/V ± 0.25%
Zero Balance	± 1.0 mV/V
Non-linearity	< ± 0.050%
Repeatability	< ± 0.03%
Hysteresis Error	< ± 0.02%
Creep in 30 minutes	< ± 0.02%
Input Resistance	385Ω ± 10Ω
Output Resistance	350Ω ± 3Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Nominal Temperature Range	–10°C to 50°C/14°F to 122°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Environmentally sealed
IP Rating	IP67
