ANYLOAD | 106MH-ES-F Fatfoot Load Cell with Fixed Cable, Stainless Steel, Welded Seal, IP67

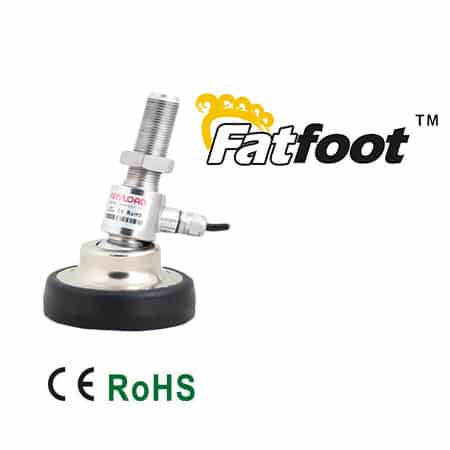

106MH-ES-F FatFoot Load Cell with Fixed Cable

Description:

The Fatfoot load cell integrates a load cell foot with a patented custom-designed load cell that provides an elegant and time-saving weighing solution for a wide range of applications. Six meters of cable is fixed to the load cell for easy integration and is a user-friendly solution that is efficient, cost-effective, and requires no professional training. Common applications include hopper weighing, tank weighing, and many more.

With the 106MHM1 compression weigh module, the Fatfoot™ is augmented with 50% side load and lifting protection, with additional allowances for thermal contraction and expansion.

Features:

  • Material: 2Cr13 Stainless steel
  • Rated Capacities: 500kg, 1t, 2t, 5t, 10t, 1Klb, 2.5Klb, 5Klb, 10Klb, 20Klb
  • Full Scale Output: 2.0mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
  • Multiple patents, innovative design
  • User friendly, professional training not required
  • Compact structure saves more space than traditional weigh modules
  • Cable (6m) is fixed to load cell
Clear
Product Enquiry
SKU: N/A Categories: , Tag:
Rated Capacities 500kg, 1t, 2t, 5t, 10t, 1Klb, 2.5Klb, 5Klb, 10Klb, 20Klb
Full Scale Output 2.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < Cap. < 2t: < ± 0.050%; Cap >2t: < ± 0.20%
Repeatability < ± 0.030%
Hysteresis Error < ± 0.050%
Creep in 30 minutes < ± 0.030%
Input Resistance 380Ω ±20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67

pdf- Download data sheet

 pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
