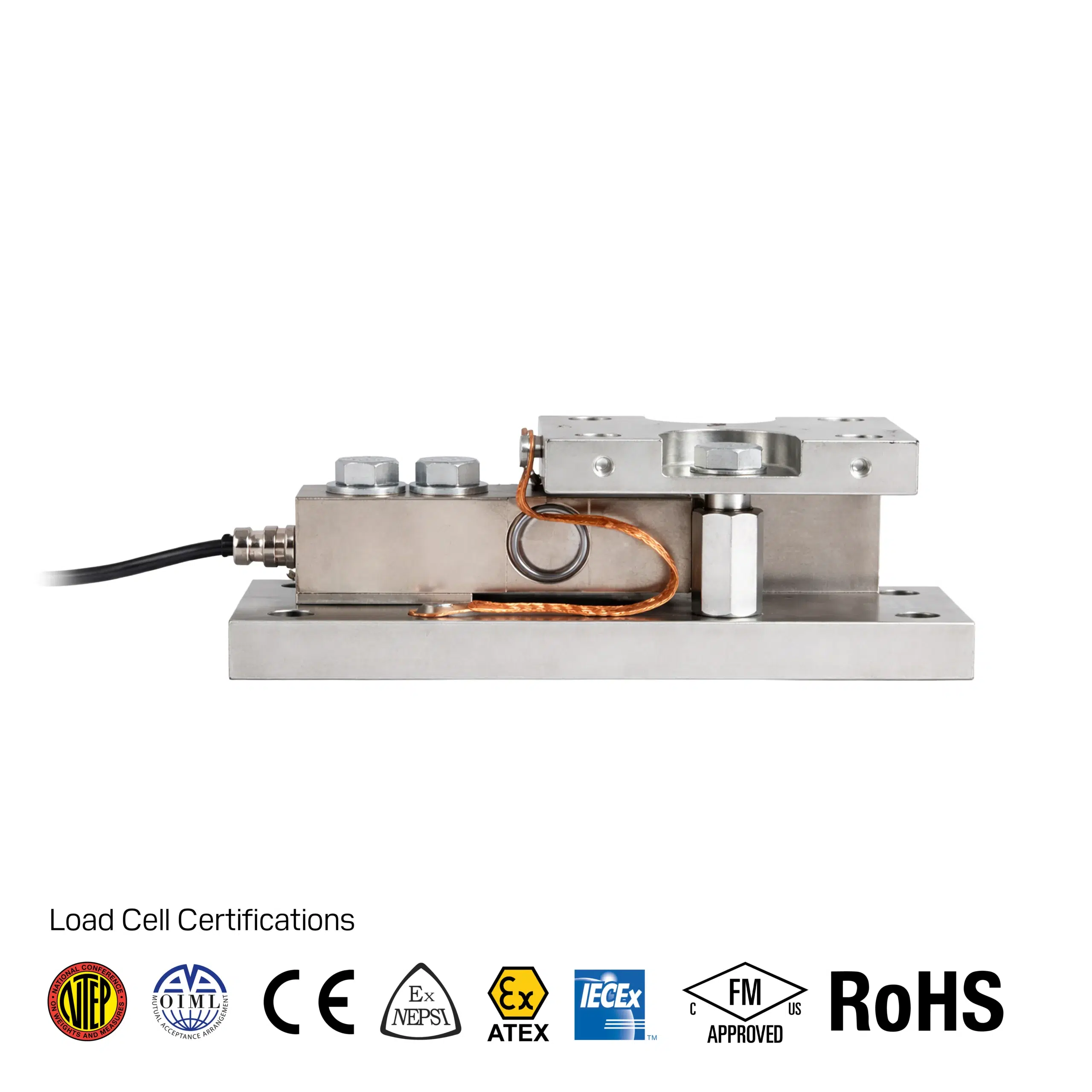

<span style="font-family: Pilat; font-weight: 800; color: #D52B1E;">563YHM4-02</span> Módulo de pesaje por compresión

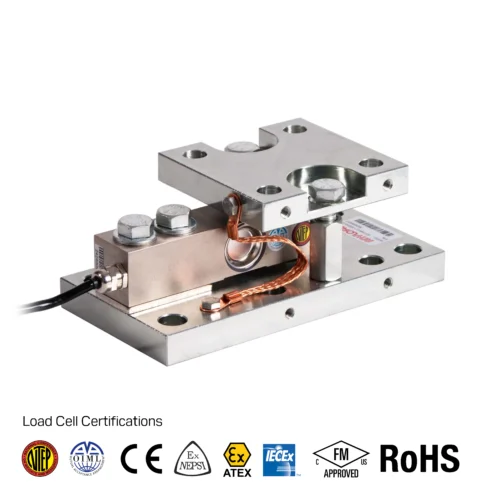

<span style="font-family: Pilat; font-weight: 800; color: #D52B1E;">563YHM4-02</span> Compression Weigh Module - Imagen 2

563YHM4-02 Módulo de pesaje por compresión

  • Monta: 563YH Alloy Steel Shear Beam Load Cell
  • Capacities: 100lb-20Klb/100kg-10t
  • Integral “Jacking” for easy load cell removal/installation
  • Rocker pin design-allows for 360° thermal expansion
  • Both uplift and overload protection with lateral stops
  • Versatile mounting options for conventional tank/vessel leg
    • Able to use existing 4-square tank leg mount holes in floor
    • Free to rotate for fixed position 360° w/same 4-mount holes
    • Able to flip entire mount 180° for further mount options
  • Side holes each side for shipping & installation brackets
  • Flexible copper braided grounding strap
  • Célula de carga no incluida

Nota: Es posible que necesite un software que pueda abrir/ver archivos STEP.
