Pesaje de plataformas de perforación en alta mar

Solución de pesaje para la construcción en la industria petrolera y del gas

Las células de carga ANYLOAD se utilizan para medir el peso y el centro de gravedad de grandes plataformas de perforación en alta mar para el control de calidad de la superestructura, el cumplimiento de la normativa y para garantizar la seguridad durante el transporte y la explotación.

Desafío

  1. Accurate Weight Verification: Offshore drilling platforms must have their total weight accurately measured before transportation and installation to ensure structural integrity and regulatory compliance.
  2. Center of Gravity Determination: Engineers need precise center-of-gravity calculations to safely ballast transport vessels and maintain platform stability during lifting and marine transport.
  3. Limited Installation Space: Due to the massive size of offshore platforms, the weighing solution must fit beneath the structure with minimal lifting height while maintaining measurement accuracy.
  4. Multi-Point Load Measurement: Large offshore structures require synchronized weight data from dozens of lifting points to accurately determine both total weight and load distribution.

Solución

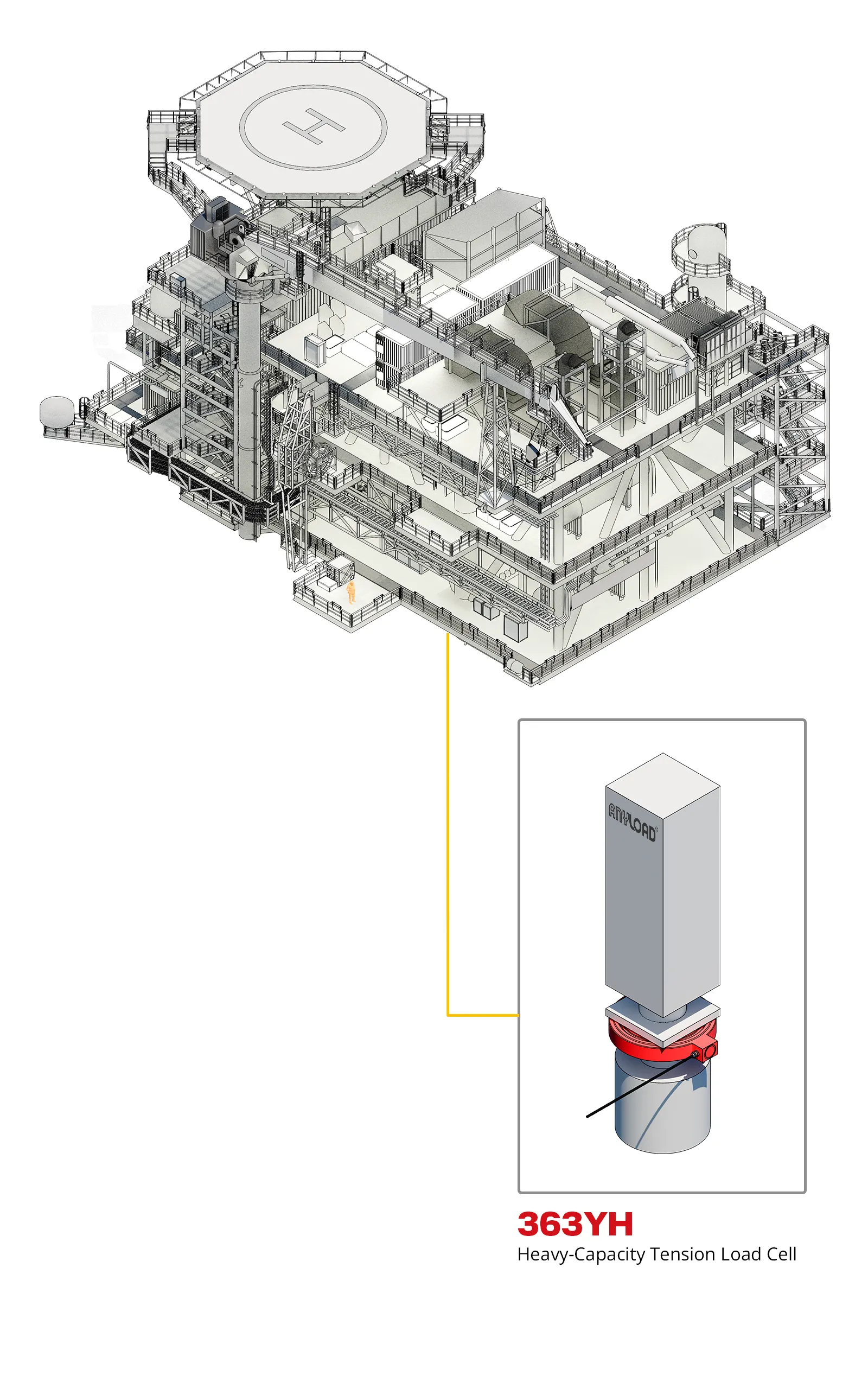

  1. High-Capacity Weighing: ANYLOAD 363YH heavy-capacity compression load cells provide precise weight measurements for extremely large offshore structures, supporting safe quality verification before deployment.
  2. Accurate Center-of-Gravity Analysis: By collecting synchronized data from multiple load cells, the system accurately calculates the platform’s center of gravity, helping engineers safely plan transportation and installation.
  3. Low-Profile Design: The compact, low-profile load cells integrate easily beneath hydraulically lifted platforms, minimizing lifting requirements while maintaining reliable performance.
  4. Scalable Data Acquisition: ANYLOAD supplied an integrated weighing solution capable of monitoring more than 50 load cells individually, by section, and as a complete system, providing comprehensive weight distribution data for complex offshore structures.
Enviar consulta

Conclusión

By integrating ANYLOAD’s heavy-capacity compression load cells and multi-channel data acquisition system, offshore platform builders obtain accurate weight and center-of-gravity measurements for quality control, transportation planning, and regulatory compliance. The low-profile, high-capacity solution delivers reliable performance for large-scale weighing applications, helping improve operational safety while supporting efficient offshore construction and installation.

Palabras clave:

Oil rig platform weighing, offshore platform weighing, offshore load cell, center of gravity measurement, heavy capacity load cell, compression load cell, offshore construction, industrial weighing, oil and gas weighing, structural load monitoring

Productos destacados

363YH
Célula de carga de compresión de gran capacidad
Véase la versión estándar.

The ANYLOAD 363YH is a canister-style alloy steel load cell engineered for both compression and tension force measurement across an exceptionally wide capacity range — from 1 tonne to 300 tonnes. Built with a nickel-plated alloy steel element and a welded IP67 seal, the 363YH delivers reliable performance in demanding industrial weighing environments where durability and measurement accuracy are critical.
