Pesaje de depósitos de productos químicos
Célula de carga y módulo de pesaje de tanques
Las células de carga ANYLOAD se integran en una instalación de fabricación de productos químicos en entornos corrosivos y de alta temperatura para proporcionar información de peso crítica para controlar los procesos, incluida la dosificación, la gestión de inventarios y el cumplimiento de las normas de seguridad dentro de la industria química.
Desafío
- Accurate Process Control: Chemical manufacturing requires continuous and precise weight monitoring to ensure accurate batching, mixing, and material transfer throughout the production process.
- Harsh Operating Environment: Reactor vessels are exposed to high temperatures, corrosive chemicals, and hazardous environments that demand robust and reliable weighing equipment.
- Safety and Regulatory Compliance: Weighing systems operating in hazardous locations must meet strict safety requirements while preventing ignition risks and ensuring safe plant operation.
- Seamless System Integration: The weighing solution must integrate with existing reactor vessels without major structural modifications while maintaining long-term accuracy and reliability.
Solución
- Precision Weight Monitoring: ANYLOAD 102DS load cells provide continuous, high-accuracy weight measurements, enabling precise process control for batching, inventory management, and quality assurance.
- Designed for Extreme Environments: Constructed with stainless steel, welded hermetic sealing, and customized high-temperature strain gauges, the load cells deliver reliable performance in corrosive and high-temperature chemical applications.
- Intrinsically Safe Design: The 102DS load cells are available with FM, ATEX, and IECEx intrinsically safe certifications, while the M3 weigh modules provide uplift, sideload, and overload protection for safe operation in hazardous environments.

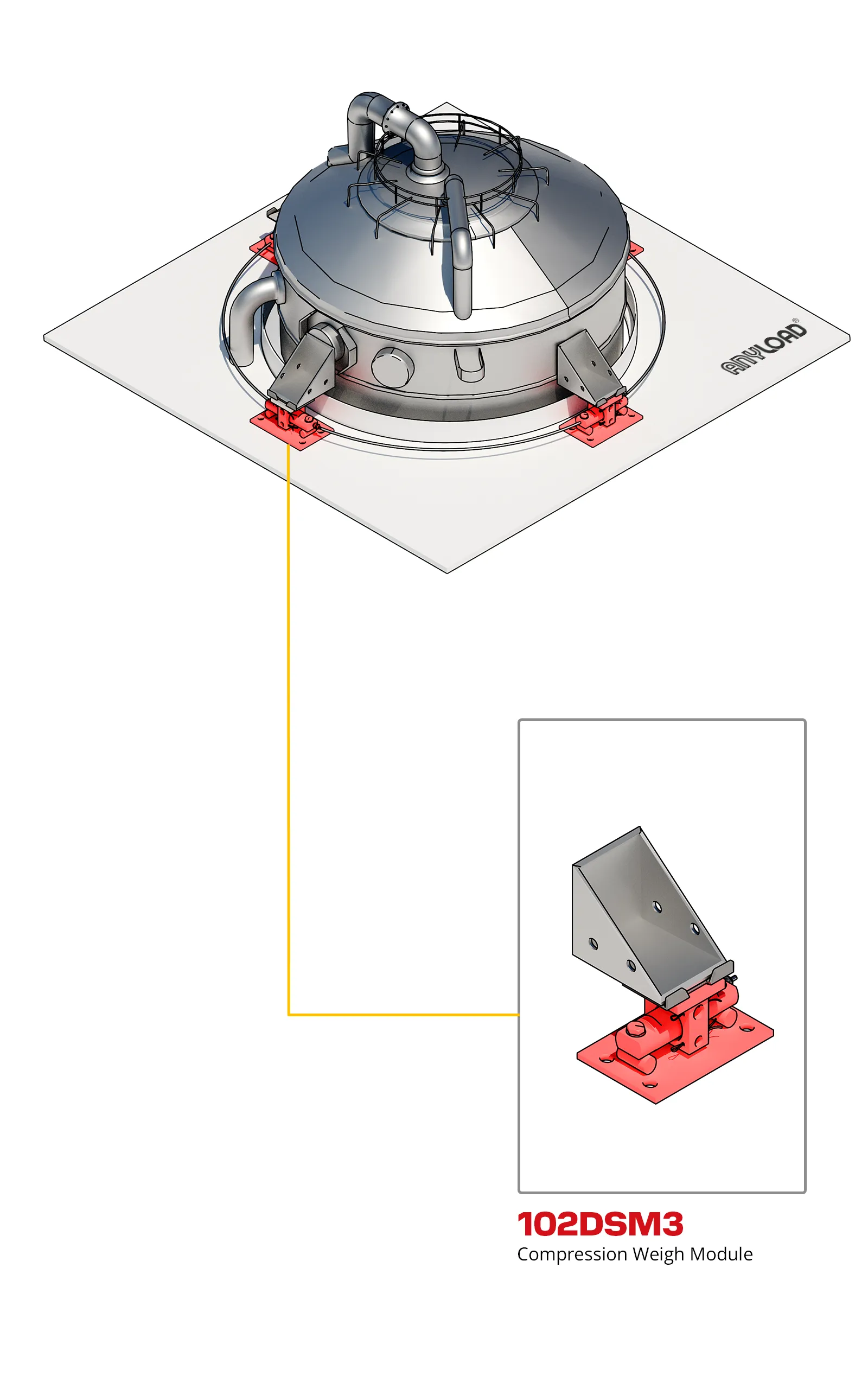

- Easy Retrofit Installation: The low-profile 102DS load cells paired with M3 weigh modules integrate directly beneath existing reactor vessels, simplifying installation while minimizing downtime and maintaining long-term weighing accuracy.
Conclusión
By integrating ANYLOAD 102DS load cells and M3 weigh modules, the chemical processing facility achieves accurate, reliable tank weighing for process control, inventory management, and regulatory compliance. The rugged, intrinsically safe weighing solution withstands high temperatures and corrosive environments while delivering long-term performance, helping improve production efficiency, operational safety, and overall process reliability.
Palabras clave:
Chemical tank weighing, tank weighing load cell, weigh module, reactor vessel weighing, process weighing, batching system, inventory management, chemical manufacturing, hopper weighing, intrinsically safe load cell
102DSM3
Módulo de pesaje
Véase la versión estándar.
En 102DSM3 provides a heavy-duty, certified, and thermally stable weigh module solution for mounting 102DS double‑ended beam load cells, supporting loads from 5 klb to 250 klb. It’s designed for reliable and accurate performance in demanding industrial environments.
102DS-25Klb-EX
Viga a cortante de doble extremo
Véase la versión estándar.
The stainless steel IP68 class water- and corrosion-resistant double-ended center loading shear beam is a compact, robust, and cost-effective compression weighing solution for high-capacity weighing needs. This product is commonly used in axel weighers, tank weighing, weighbridges, and many other applications.
