Grain Bin Weighing

Load Cell for Bin Weighing Application

Bin weighing systems are essential in industrial and agricultural settings where accurate, continuous monitoring of storage bin or tank contents is required. Whether measuring grains, chemicals, or liquids, ensuring precise load measurements directly impacts process control, inventory accuracy, and operational efficiency. This requires a weighing module that integrates smoothly into existing infrastructure while offering long-term reliability, high accuracy, and protection in harsh environments.

Desafío

  1. Adaptability: Many tanks or bins are already installed and in use, leaving limited flexibility for adding weighing solutions without significant downtime or structural changes.
  2. Environmental Exposure: Outdoor or partially sheltered installations are subject to temperature shifts, moisture, and dust, which can affect sensor accuracy and longevity.
  3. Accuracy Under Load Variability: The system must accommodate large capacities (from 250lb to 20Klb) while resisting side loads and maintaining high measurement accuracy.machine.

Solución

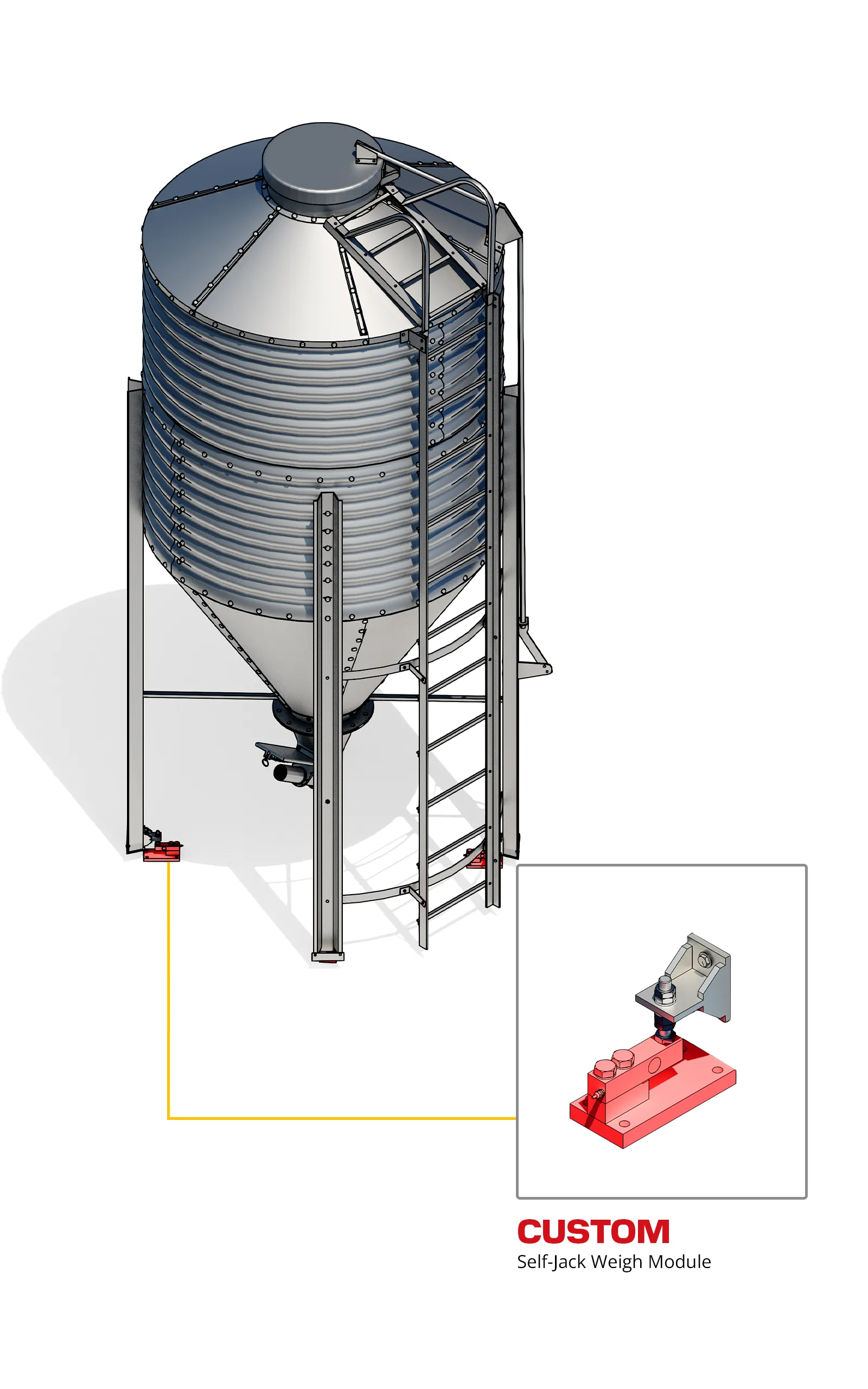

ANYLOAD provides a highly adaptable and rugged solution using the 563YHM7 self-jacking weigh module, paired with the 563YH-23 load cell and J04EP-E/J04ES-E junction box.

  1. The 563YHM7 weigh module allows easy retrofitting: it can be mounted directly to an existing tank leg and jacks the bin itself without the need for external lifting tools.
  2. The 563YH-23 load cell delivers NTEP Class III and OIML C4–C6 accuracy, with optional ATEX and FM-certified versions for hazardous environments.
  3. Designed to resist side loads and meet IP67 standards, the load cell maintains reliable performance even in tough outdoor conditions.
  4. The J04EP-E/J04ES-E junction box simplifies cable runs, supports multi-cell trimming, includes a breather vent for moisture control, and is expandable beyond four cells.

Conclusión

ANYLOAD’s bin weighing module—featuring the 563YHM7 weigh module and 563YH-23 load cell—provides a compact, high-performance solution for retrofitting tanks and bins with accurate, industrial-grade weighing. Its durability, ease of installation, and resilience in challenging environments make it ideal for outdoor or factory applications. For more information, please contact ANYLOAD.

Enviar consulta
AL-Grain-Bin-Weigh

Palabras clave:

Grain bin weighing, bin weighing, silo weighing, tank weighing, load cell, weigh module, inventory monitoring, bulk storage, grain storage, agricultural weighing, industrial weighing, weight monitoring, process control, storage tanks, hopper weighing, precision weighing, weighing system, load measurement, inventory management, retrofit weighing.

Productos destacados

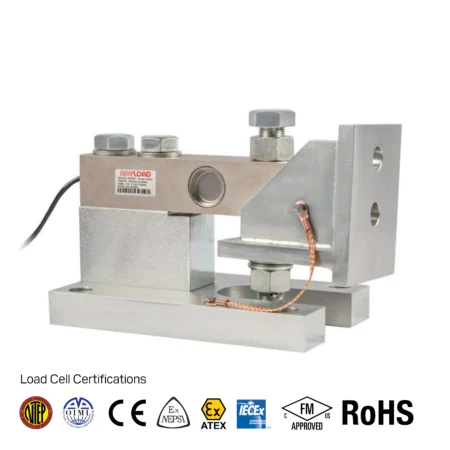

563YHM7
Módulo de pesaje por compresión
Véase la versión estándar.

  • Monta: 563YH, 563YH-23 Single Ended Beam
  • Capacities: 15Klb-20Klb
  • Self jacking feature that can lift the structure without external support
  • Simplified installation and levelling procedure using a screw to set height
  • Low mounting height achieved by being parallel to the weighed leg
  • Easy installation on already-installed bins
  • Spherical washer assembly keeps load centered
  • 50% rated side load and uplift protection
  • Célula de carga no incluida

563YH-23
Single Ended Load Cell
Véase la versión estándar.

Rentable y resistente, la 563YH-23 es una célula de carga de viga simple. Su diseño de perfil bajo con resistencia al agua IP67 y alta resistencia a sobrecargas y golpes y cargas laterales. Este modelo es popular en aplicaciones de mayor precisión, como básculas de plataforma, básculas de palés, pesaje de procesos, etc.

Módulos de pesaje por compresión (563YHM2  / 563YHM4-02) están disponibles para facilitar la instalación para una carga ideal, con opciones de montaje fáciles de instalar, tolerancia a la expansión térmica y protección frente a cargas irregulares.

Explorar casos prácticos

Meat Blender Hopper Células de carga

Industrial meat blenders and CO₂ blending equipment require highly accurate batch weighing to maintain recipe consistency, maximize production yield, and meet strict food processing standards. Load cell technology provides continuous weight monitoring that supports automated ingredient control while operating reliably in demanding washdown environments.

Máquina llenadora de bolsas Células de carga

Bagging machines require fast and accurate weighing to ensure each bag is filled to the correct target weight while maintaining high production throughput. Variations in material density, vibration, and continuous operation can negatively affect weighing accuracy, resulting in product giveaway, inconsistent fills, or increased waste. The weighing system must also withstand harsh industrial environments and integrate easily into automated filling equipment.

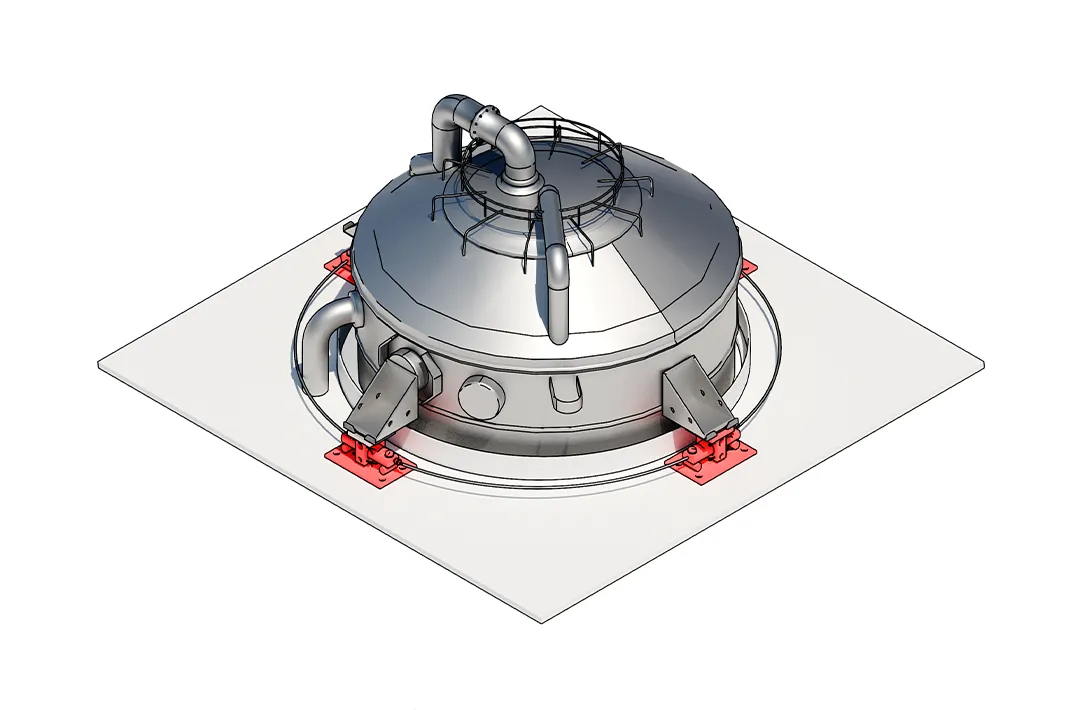

Tanque químico Pesaje
