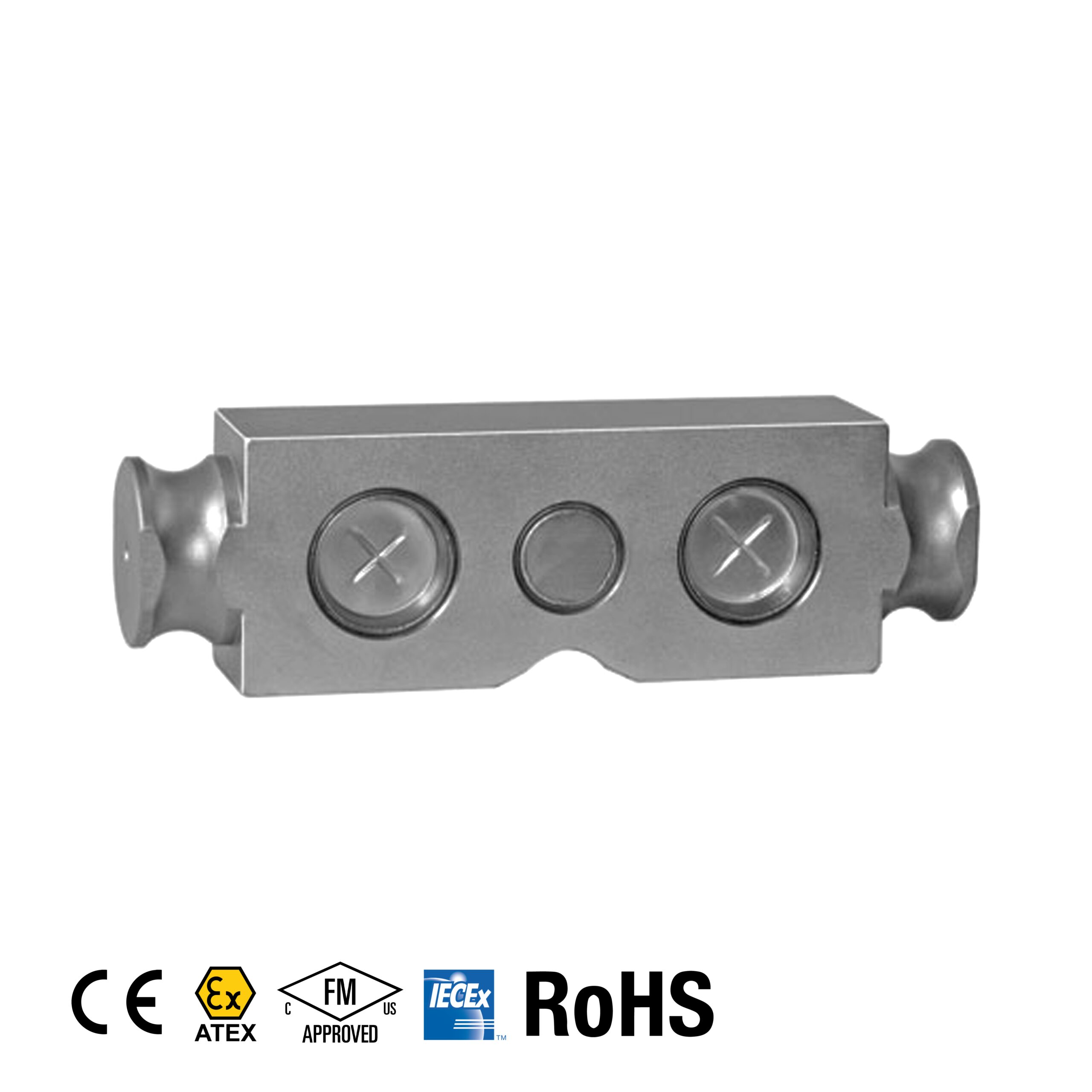

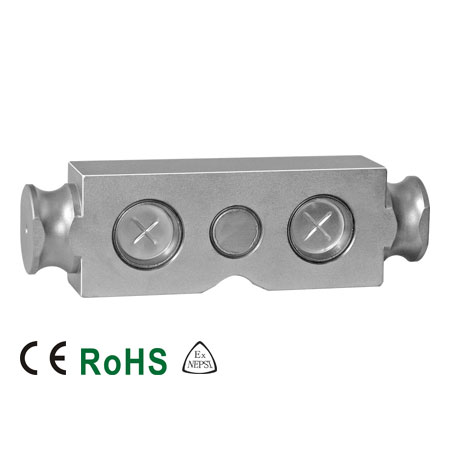

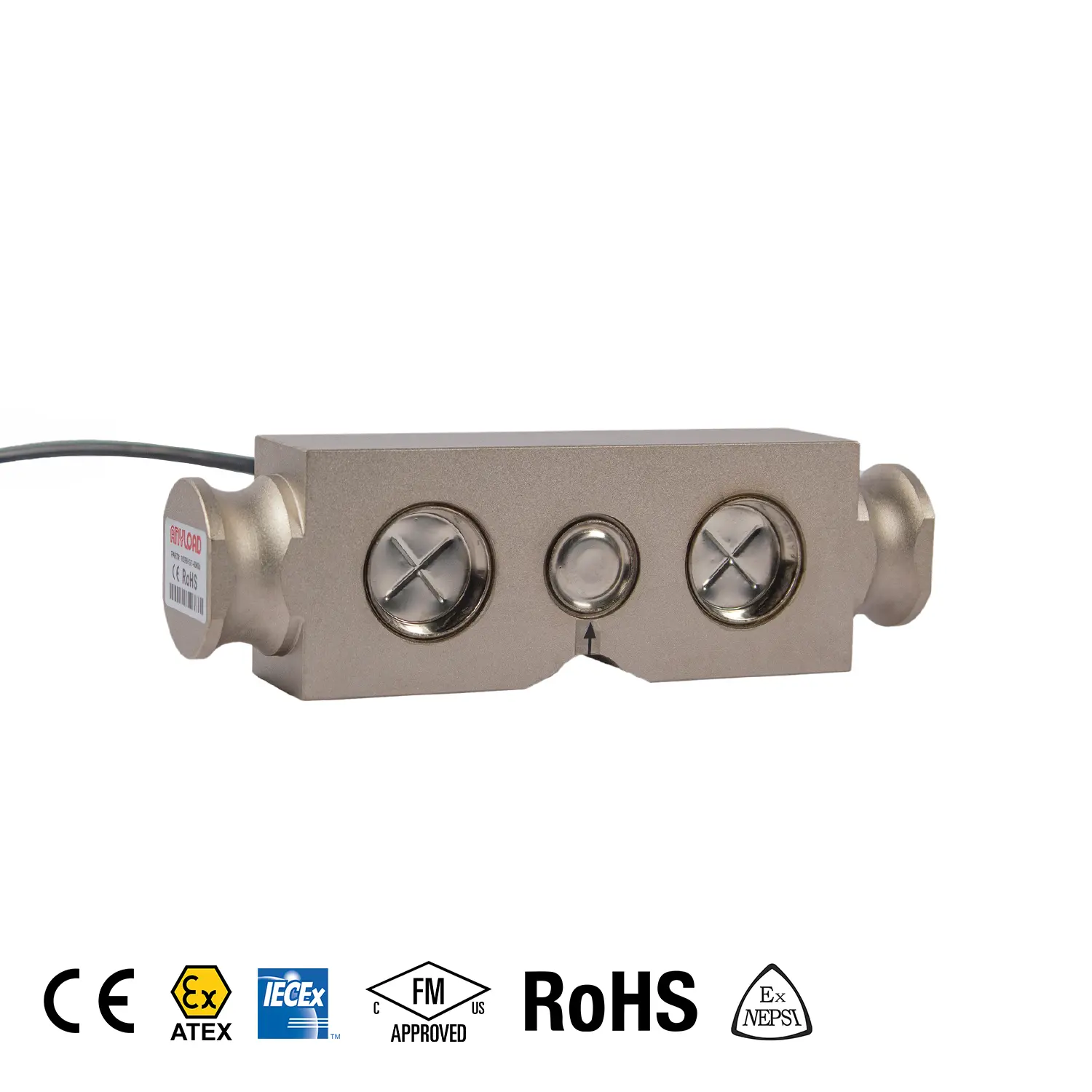

The ANYLOAD 102RHGT is a nickel-plated alloy steel double ended beam load cell designed for accurate, repeatable force and weight measurement in demanding installations. This datasheet documents the 102RHGT-60Klb model, rated for 60Klb, with a full scale output of 3.0 mV/V and a zero balance of ±0.02 mV/V. Nonlinearity, repeatability, hysteresis, and 30-minute creep are each held to a few hundredths of a percent, giving engineers and OEM designers the performance data they need to specify the cell with confidence. The welded seal carries an IP68 rating, and the load cell tolerates a safe overload of 150% of full scale and a breaking overload of 300% of full scale.
For installation and integration, the datasheet provides a full dimensional drawing and table in both millimeters and inches, with a 1/2-14 NPT callout and an approximate unit weight of 6.4 kg. It lists the 700 ohm input and output resistance, a recommended excitation of 10V (15V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F). The standard cable is 7.6 mm in diameter and 18 m long, and the color code is clearly documented: Exc+ red, Exc- black, Sig+ green, Sig- white, and a bare shield wire. With wiring, dimensions, and electrical specifications in one place, installers and designers can integrate the 102RHGT without guesswork.
The 102RHGT is RoHS compliant, and ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix. The datasheet also includes an interchangeable reference table that cross-references the BIM SDB60Klb, helping dealers, service technicians, and procurement teams quickly find a direct ANYLOAD replacement.
