A1A-D25C Amplificador digital de célula de carga

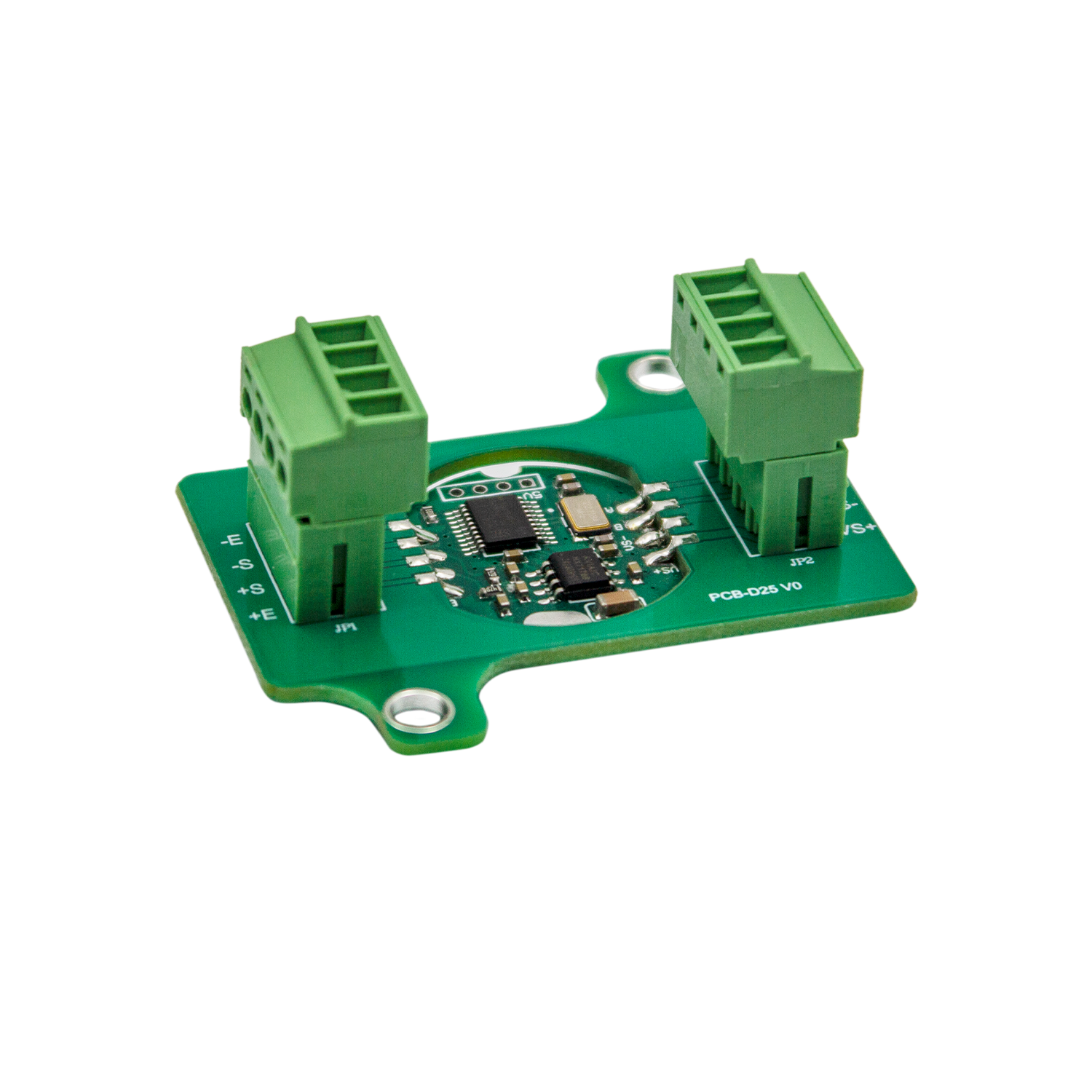

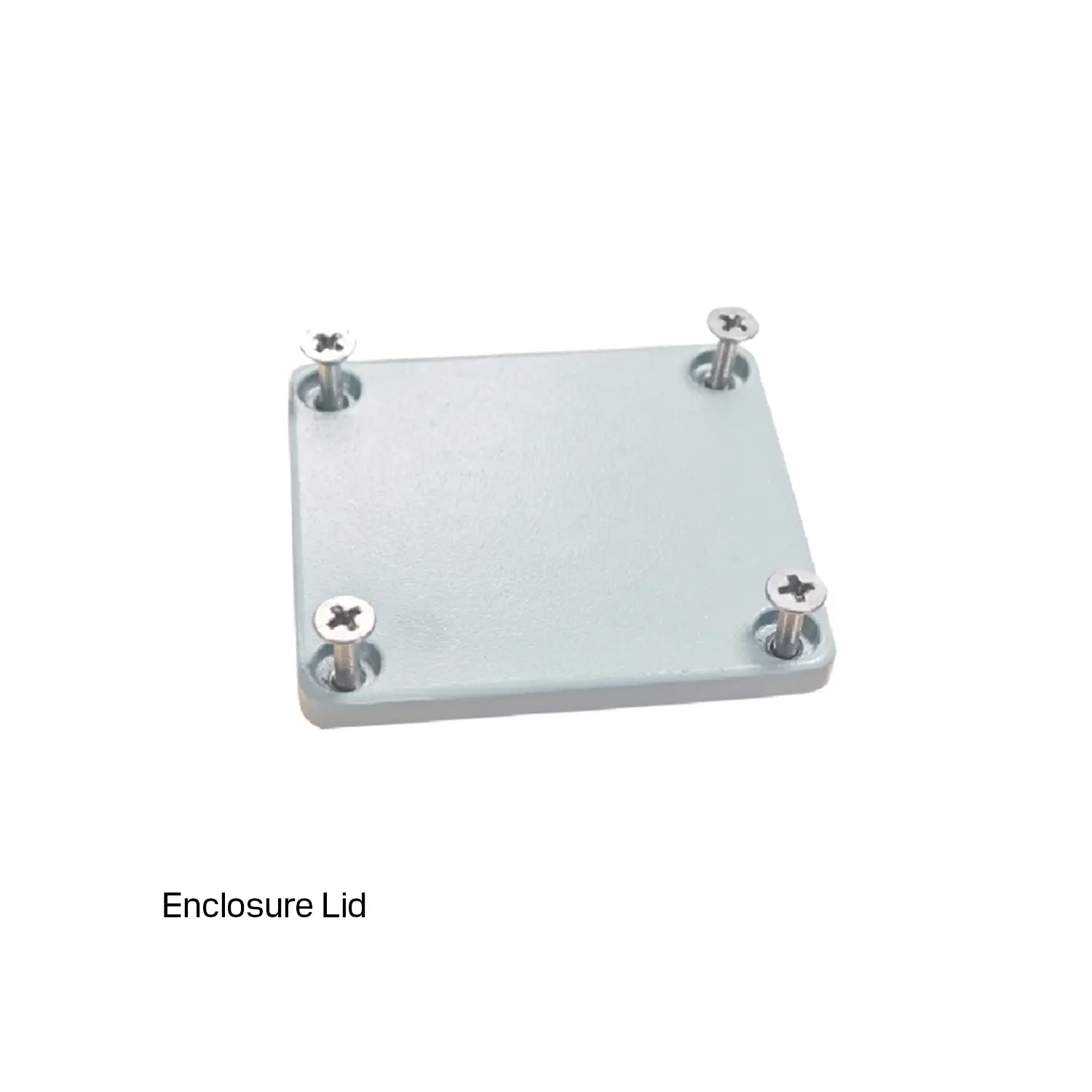

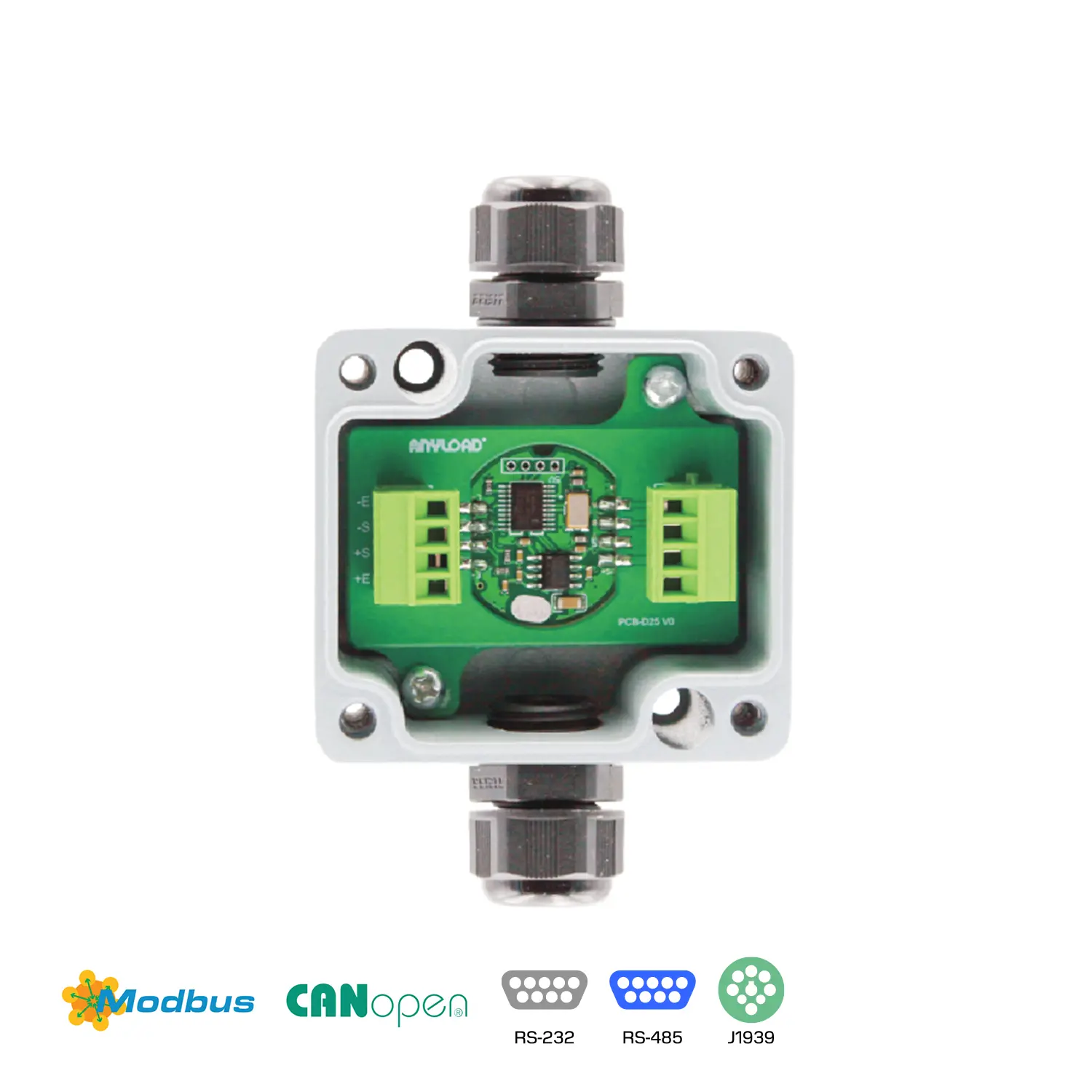

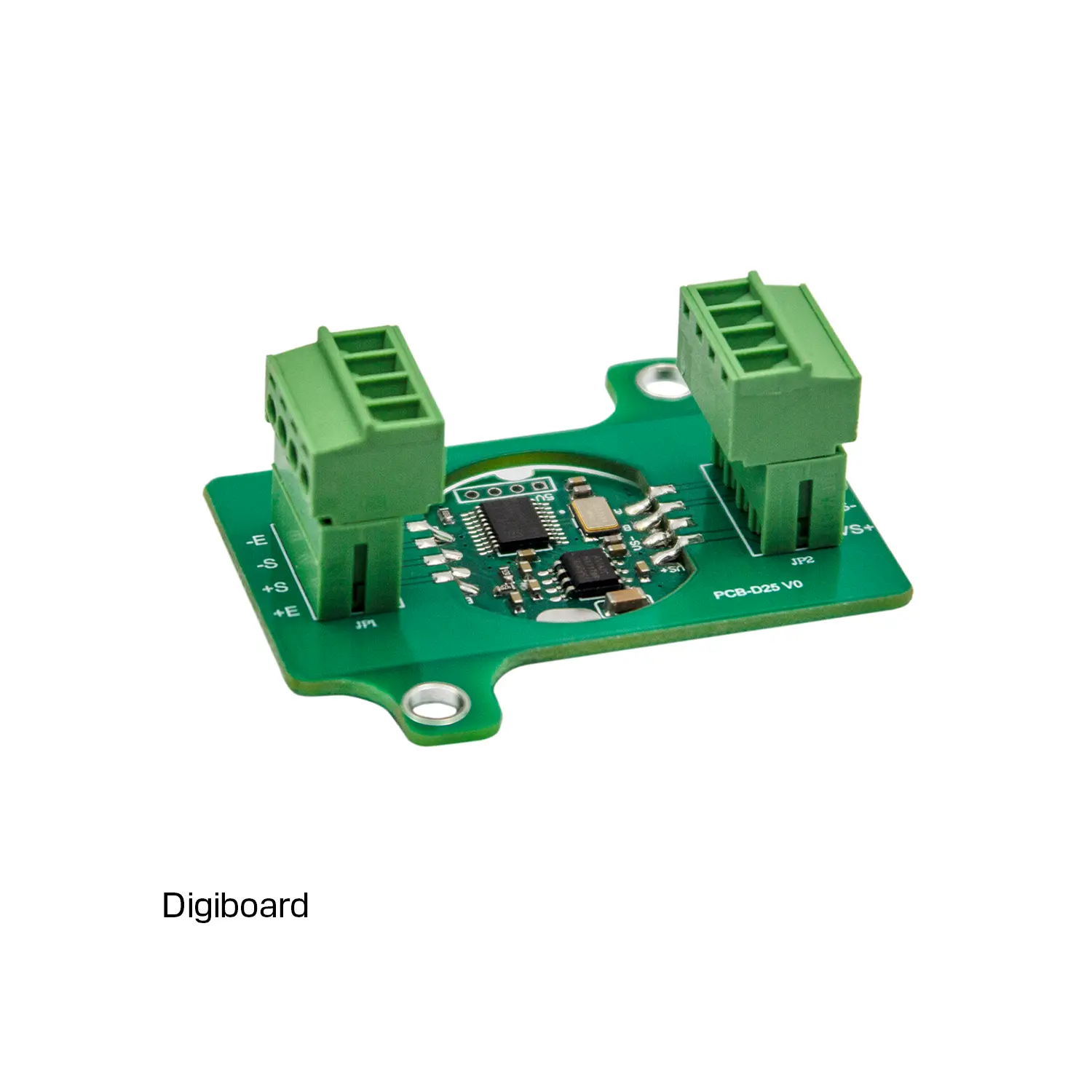

ANYLOAD A1A-D25C strain gage amplifiers provide load cell and transducer signal conditioning. The A1A-D25C series strain gage amplifiers are DC-powered amplifiers that can drive 1 load cell connected directly. They can also drive several load cells up to 4 x 350Ω load cells or 8 X 700Ω load cells through a junction box. Housed in an aluminum casting enclosure. The A1A-D25 digitizer module includes both RS232 and RS485 communication interfaces with ModBus protocol.
Características
- One input port, can connect directly to 1 x 350 Ω load cell, or max 4 x 350 Ω (or higher resistance) load cells through a junction box
- 24-bit A/D Converter, high speed processor
- Internal digital filter and strong anti-interference ability
- Contains ability for 9 point linear calibration
- Applied to all kinds of strain gauge bridge-type load cell, such as, tension, compression, torque and so on.
Especificaciones
| Load Cell Type | All strain gage types |
|---|---|
| Fuente de alimentación | 9-24 V DC |
| Input Range | −3.9 to +3.9 mV/V |
| Output Signal | RS232 (A1A-DM2507C) / RS485 (A1A-DM2508C) / CAN Bus (A1A-DC2508C) / CAN Bus, CAN J1939 (A1A-DC2508-J1939C) |
| Protocolo de comunicación | Modbus RTU/CANOpen |
| Resolución | >1000000 |
| Temperature Coefficient | ≤100ppm/°C |
| Temperatura de trabajo | -22 °F to 122 °F / -30 °C to 50 °C |
| Excitation Voltage to Load Cell | 5V |
