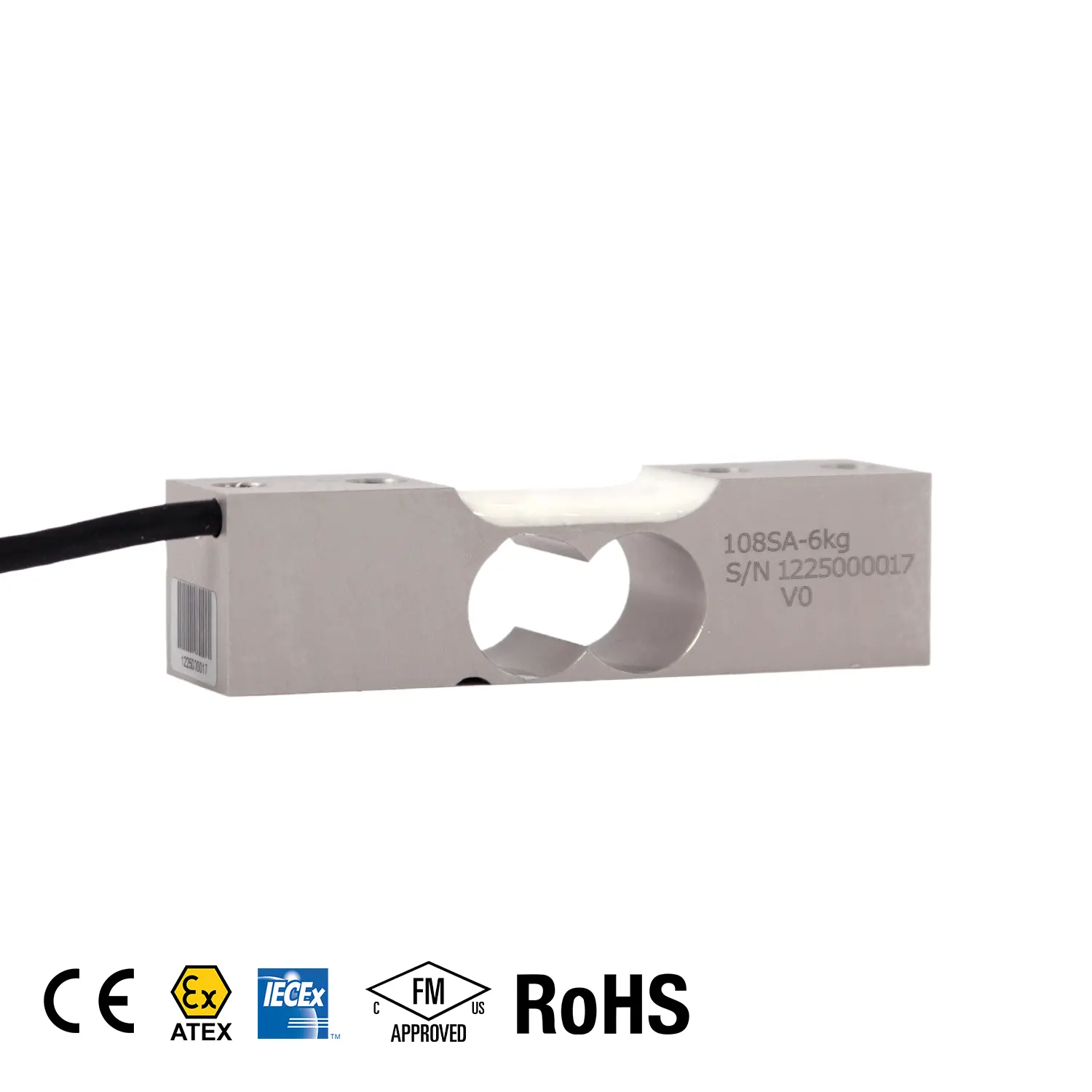

108SA Célula de carga monopunto
The ANYLOAD 108SA is a compact, low-capacity single point load cell constructed from clear anodized aluminum, designed for small platform scales, kitchen scales, and light-duty OEM weighing applications. Available in capacities from 6kg to 30kg, it offers reliable and consistent performance in a space-efficient form factor supporting platform sizes up to 250mm x 250mm.
With an IP66-rated environmental seal, the 108SA is protected against dust and water ingress, making it suitable for both indoor and light industrial environments. CE and RoHS certified for compliance with international safety and environmental standards.
Características
- Material: Aluminio, anodizado transparente
- Rated Capacities: 6kg, 10kg, 15kg, 20kg, 30kg
- Full Scale Output: 1.5mV/V ± 10%
- Sobrecarga segura: 150%
- Sobrecarga de rotura: 300%
- Clasificación IP: IP66
- Certificado CE y RoHS
Especificaciones
| Capacidades nominales | 6kg, 10kg, 15kg, 20kg, 30kg |
|---|---|
| Referencia Max. Tamaño de la plataforma | 250mm x 250mm |
| Salida a fondo de escala | 1.5mV/V ± 10% |
| Saldo cero | ± 0,02mV/V |
| No linealidad | < ± 0,050% |
| Repetibilidad | < ± 0,030% |
| Error de histéresis | < ± 0,050% |
| Creep en 30 minutos | < ± 0,020% |
| Resistencia de entrada | 1000Ω ± 3Ω |
| Resistencia de salida | 1000Ω ± 3Ω |
| Excitación recomendada | 10 V (15 V máximo) |
| Resistencia del aislamiento | > 2GΩ (50V CC) |
| Efecto de la temperatura en la sensibilidad | < ±0,0012% de Cn/k |
| Efecto de la temperatura en el balance cero | < ± 0,0040% de Cn/k |
| Temperatura nominal | –10°C to 40°C/14°F to 104°F |
| Temperatura de servicio | –18°C to 65°C/0°F to 149°F |
| Temperatura de almacenamiento | -50°C a 85°C/-58°F a 185°F |
| Sobrecarga segura | 150% del fondo de escala |
| Romper la sobrecarga | 300% del fondo de escala |
| Tipo de junta | Sellado ecológico |
| Clasificación IP | IP66 |
