106AS Célula de carga de bidón

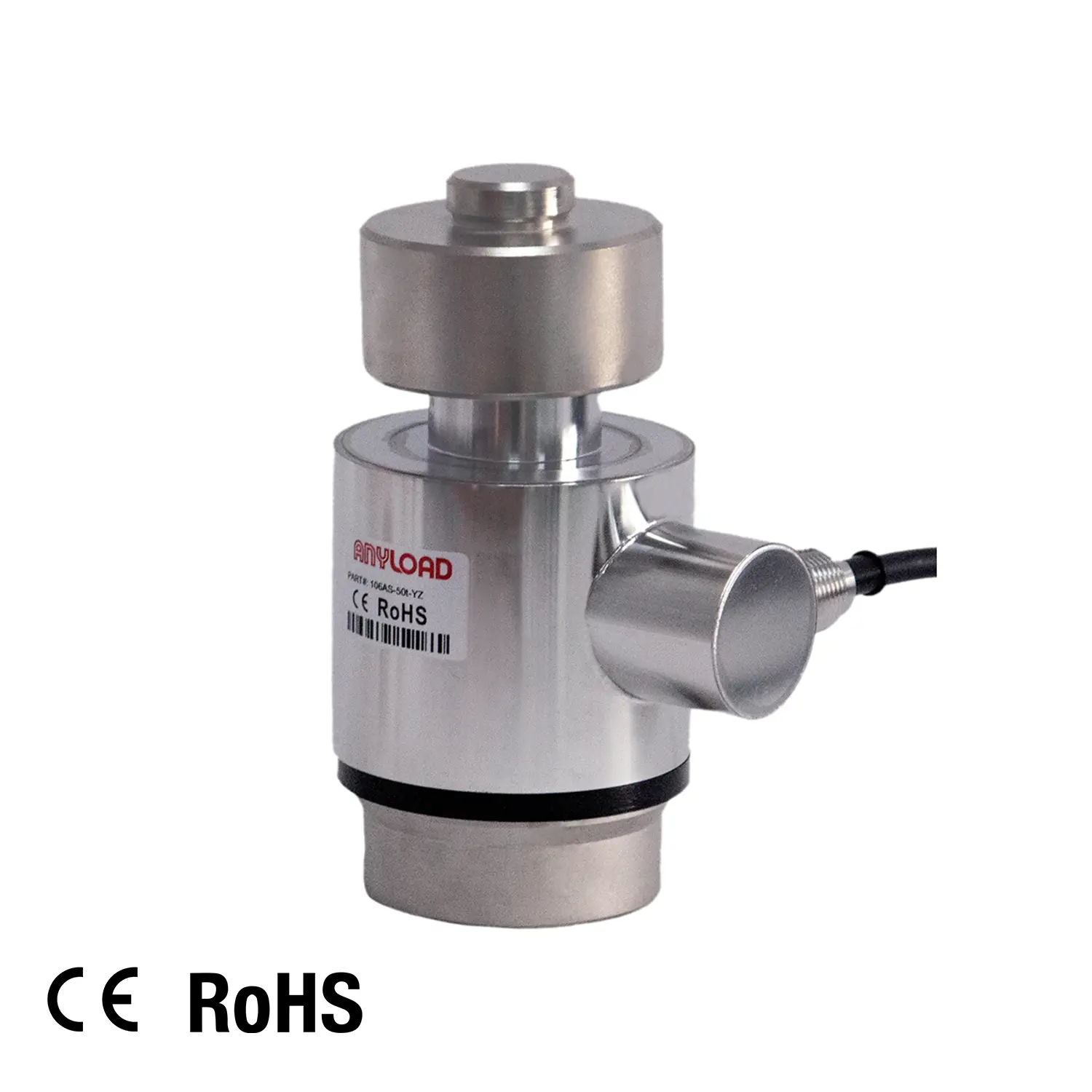

The ANYLOAD 106AS is a stainless steel canister-style compression load cell designed for high-capacity weighing applications ranging from 5 to 50 metric tons. Built from 2Cr13 stainless steel, the 106AS delivers reliable and repeatable performance in demanding industrial environments, with an IP67 environmental seal rating that protects against dust and water ingress. Its compact canister-and-disk form factor makes it well-suited for use in tank weighing, hopper scales, platform scales, silo weighing, and other structural compression weighing systems where durability and long-term stability are critical.
The 106AS offers strong metrological performance, with non-linearity and hysteresis each rated below ±0.023% and repeatability below ±0.017%, making it appropriate for industrial process weighing and inventory management applications. With a full scale output of 1.5 mV/V and a recommended excitation of 10V (15V maximum), it integrates cleanly into standard analog weight instrumentation.

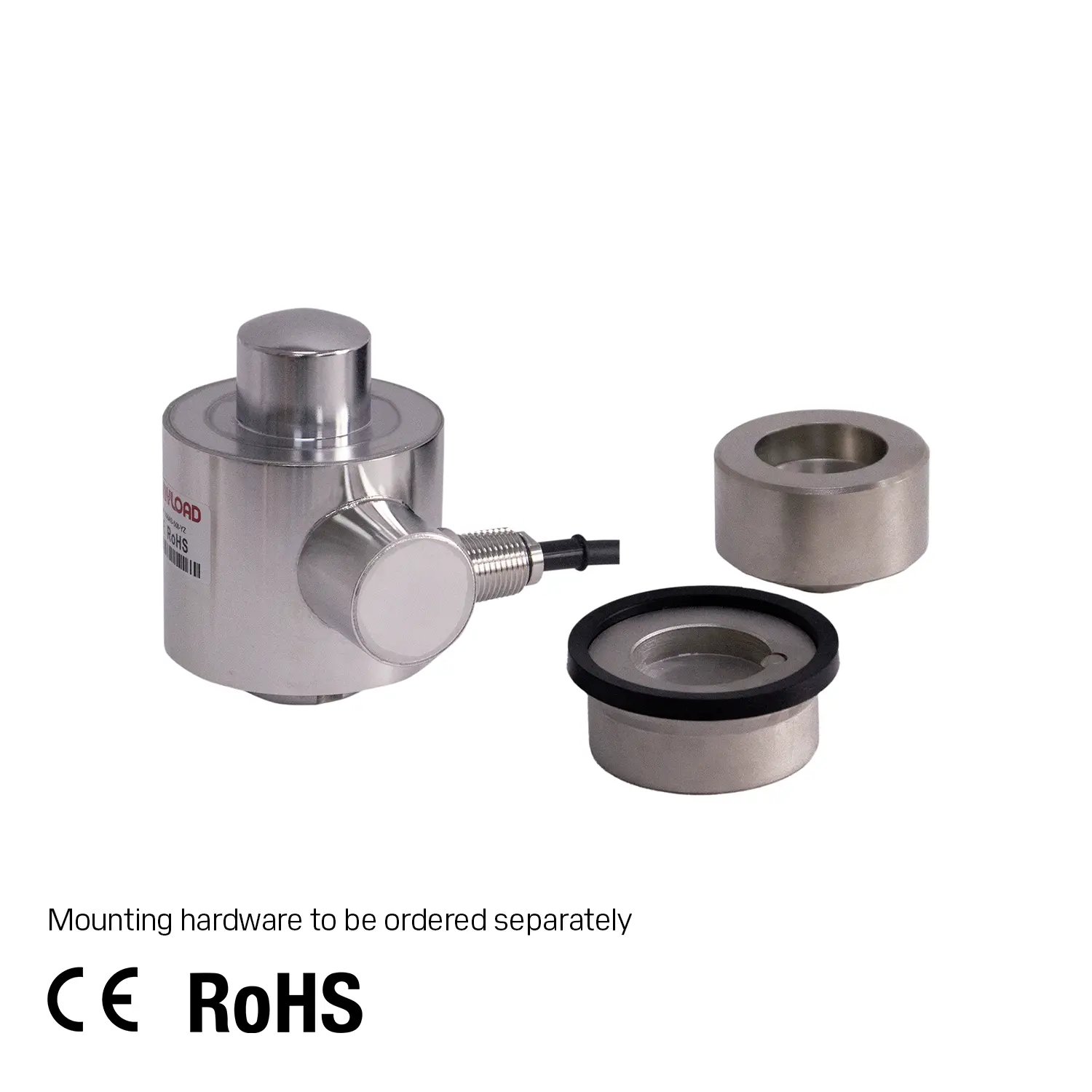

Mounting hardware — including the MC106AH mounting cap, MB106AH mounting base, and F106A-2A rubber O-ring — is available separately for all capacity ranges. These accessories are made from alloy steel and are designed to ensure proper load introduction and alignment in installed weighing systems. The 106AS is CE and RoHS certified and is suitable for use across a wide range of industries including aggregate processing, bulk storage, food and beverage, chemical, and general industrial weighing.
If your application requires high-capacity compression load cells for tank, hopper, silo, or platform weighing, ANYLOAD can assist with load cell selection, mounting hardware configuration, and system integration. Contact our team to discuss capacity requirements, environmental conditions, or replacement and upgrade needs.
Características
- Material: Acero inoxidable
- Rated Capacities: 5t, 10t, 20t, 30t, 50t
- Full Scale Output: 1.5mV/V ± 0.25%
- Sobrecarga segura: 150%
- Sobrecarga de rotura: 300%
- Clasificación IP: IP67
- Certificado CE y RoHS
Especificaciones
| Capacidades nominales | 5t, 10t, 20t, 30t, 50t |
|---|---|
| Salida a fondo de escala | 1.5mV/V ± 0.25% |
| Saldo cero | ± 0,02mV/V |
| No linealidad | < ± 0,023% |
| Repetibilidad | < ± 0,017% |
| Error de histéresis | < ± 0,017% |
| Creep en 30 minutos | < ± 0,023% |
| Resistencia de entrada | 770Ω ± 30 |
| Resistencia de salida | 700Ω ± 5 |
| Elemento Material | Acero inoxidable 2Cr13 |
| Excitación recomendada | 10 V (15 V máximo) |
| Resistencia del aislamiento | > 2GΩ (50V CC) |
| Rango de temperatura compensado | –10°C to 50°C / 14°F to 122°F |
| Sobrecarga segura | 150% del fondo de escala |
| Romper la sobrecarga | 300% del fondo de escala |
| Tipo de junta / grado IP | Environmentally Sealed / IP67 |
Intercambiable
| Vishay Tedea Huntleigh | 120* |
|---|
* Vishay Tedea Huntleigh 120 has a stainless steel element with an input resistance of 670Ω ± 10Ω and output resistance of 605Ω ± 5Ω.
The 106AS-5t to 30t with mounting cups is interchangeable with Vishay Tedea Huntleigh 120.
