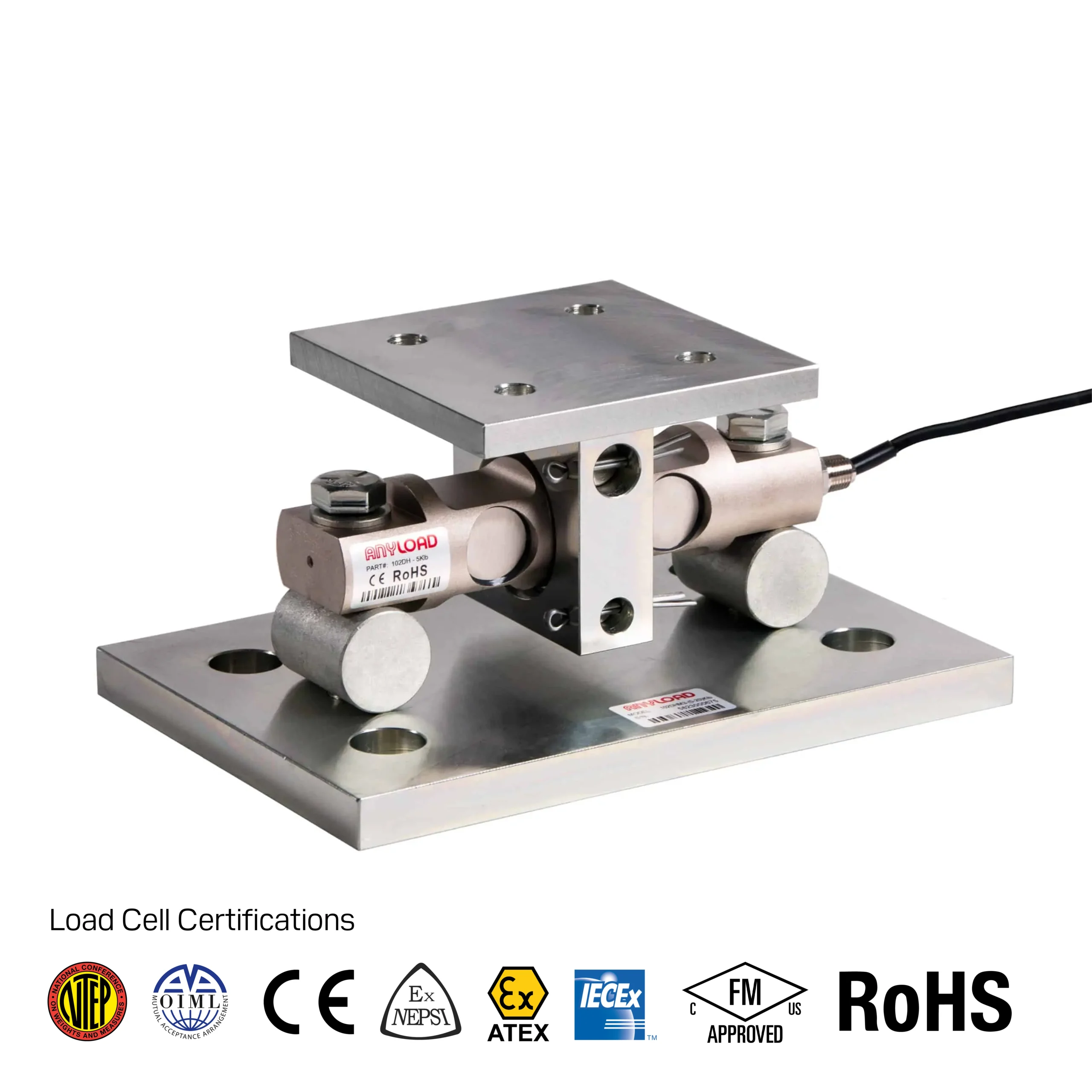

102DHM3 Módulo de pesaje por compresión
The ANYLOAD 102DHM3 Compression Weigh Module is a rugged, high-performance weighing component designed for precise compression load measurement. Built for industrial scale systems, it delivers dependable accuracy and durability in heavy-duty applications.
Características
- Assembles: 102DH Double Ended Beam Load Cell
- Material: Acero de aleación
- Capacities: 5Klb-250Klb
- NTEP certified load cells from 10Klb-100Klb
- OIML certified load cells from 9t-45t
- Células de carga certificadas CE , RoHS y Ex
- Center pivoted and self-checking with 50% rated load anti-lifting and side force protection
- Sliding pin design compensates for thermal expansion and contraction
- Célula de carga no incluida
Especificaciones
| Capacidades nominales | 5Klb-250Klb |
|---|
Technical Files
Ficha de datos
Installation Manual
Sales
Folleto
3D Drawings
102DHM3-(5-20)Klb
102DHM3-(30-75)Klb
102DHM3-(100)Klb
102DHM3-(150)Klb
Intercambiable
| Lago Rice | EZ Mount 1 |
|---|
