Sistema de pesaje para avicultura
Tension Weighing Solution for Poultry Farming
En avicultura, es crucial vigilar de cerca y controlar el peso y el crecimiento de las aves, ya que tanto el sobrepeso como el bajo peso pueden entorpecer la producción y reducir la rentabilidad de la explotación.
Traditionally, farmers randomly select and weigh poultry at regular intervals and record the data to attempt to monitor growth. However, this method is time-consuming, labor-intensive, and may not accurately represent the average poultry weight.
With these parameters and considerations, we developed a weighing system that automatically and continuously monitors poultry weight, eliminating the need for manual labor. This allows farmers to precisely control feeding and optimize poultry growth.
Desafío
- Poultry is constantly moving. This requires a weighing system with high dynamic precision to accurately measure the birds despite their movement on the scale.
- The weighing system is operating at all times. Long-term stability is essential, as it must maintain high accuracy over time, and withstand changes in temperature and humidity.
- The farms have differing layouts and the height of the poultry also changes as they grow. The system’s weighing platform needs to feature adjustable height to accommodate varying bird heights and farm structures.
Solución

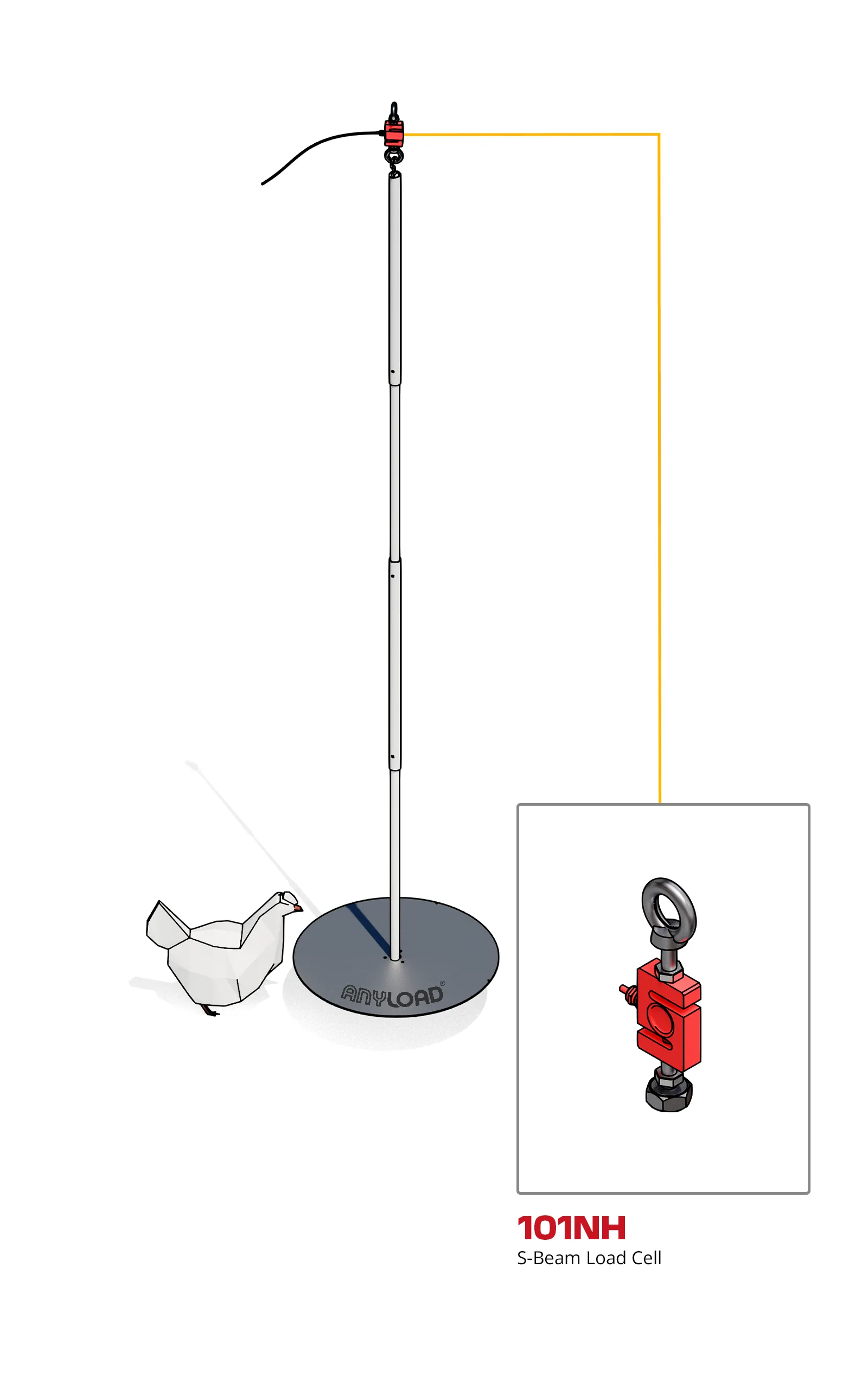

- The weighing system incorporated a multi-joint design with high-precision load cells to accurately weigh poultry even while they are in motion.
- The load cells have undergone extensive testing, including creep, temperature and humidity, and fatigue tests to ensure consistent accuracy in long-term working conditions.
- The weighing system integrated a telescopic rod design for farmers to easily adjust the platform height based on their requirements.
- Additionally, the load cells can be customized with a safety overload of 400% to 500%, to prevent accidental overloading during routine cleaning.
Conclusión
The ANYLOAD poultry weighing system effectively meets farm requirements for precise poultry weight measurement, providing long-term stable and accurate dynamic weighing. The weighing system and platform are designed for straightforward and efficient assembly and setup, enhancing ease of use. Additionally, the weighing platform is available in two corrosion-resistant options: stainless steel and oxidized aluminum, to offer effective protection against erosion from poultry excrement.
Productos destacados
101NH
Célula de carga S-Beam
Véase la versión estándar.
- OPCIÓN: Acero inoxidable o acero aleado
- Los orificios de montaje roscados facilitan el montaje en la mayoría de las luminarias
- Diseño versátil que se adapta a una amplia gama de aplicaciones
El haz en S 101NH es un haz en S con homologación OIML C3/C4.5 y NTEP adecuado para una amplia variedad de aplicaciones debido a su simplicidad, facilidad de instalación y fiabilidad general. Este haz en S resistente al agua IP67 también es intercambiable con Rice Lake RL20000, Revere 363, Coti Global CGSB / CSGB-1, etc.
OJO
Perno de ojo
Véase la versión estándar.
- Cast alloy steel
- Includes jam nut
- Imperial thread sizes: 1/4″, 1/2″, M12″
- Metric thread sizes: M12
ANYLOAD eye bolts are used in the assembly of tension weighing applications. Available in imperial and metric threads, the EYE series eye bolts are manufactured from cast alloy steel and are each supplied with a jam nut.

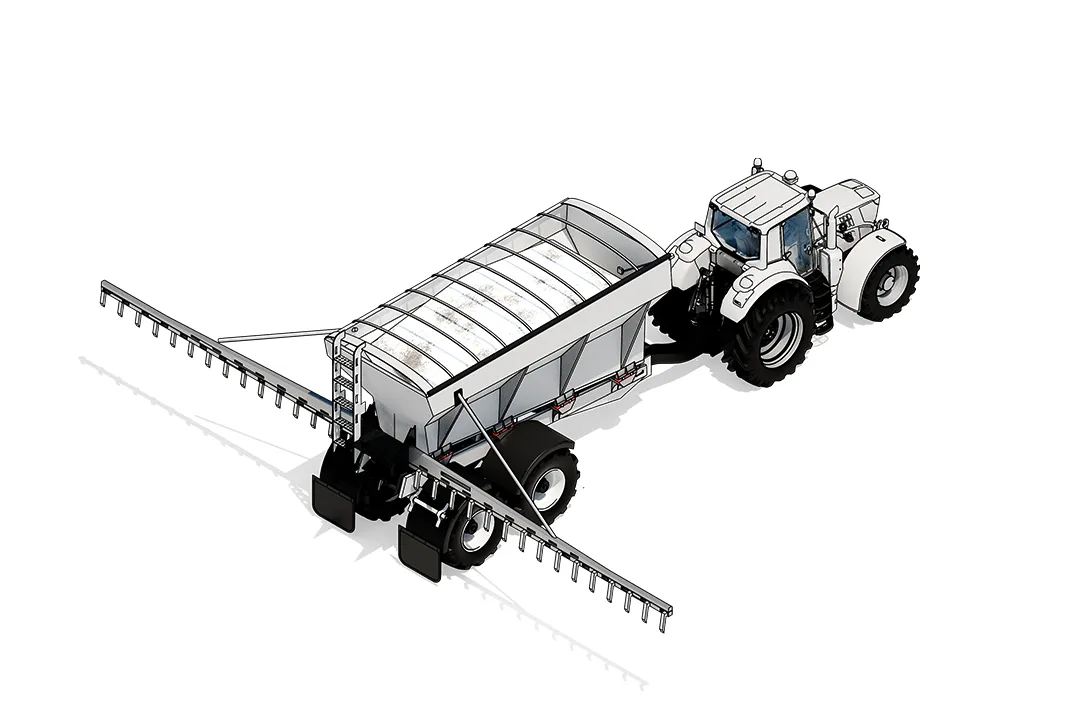

Soluciones de pesaje agrícola
