Torque Monitoring System for Auger Drills

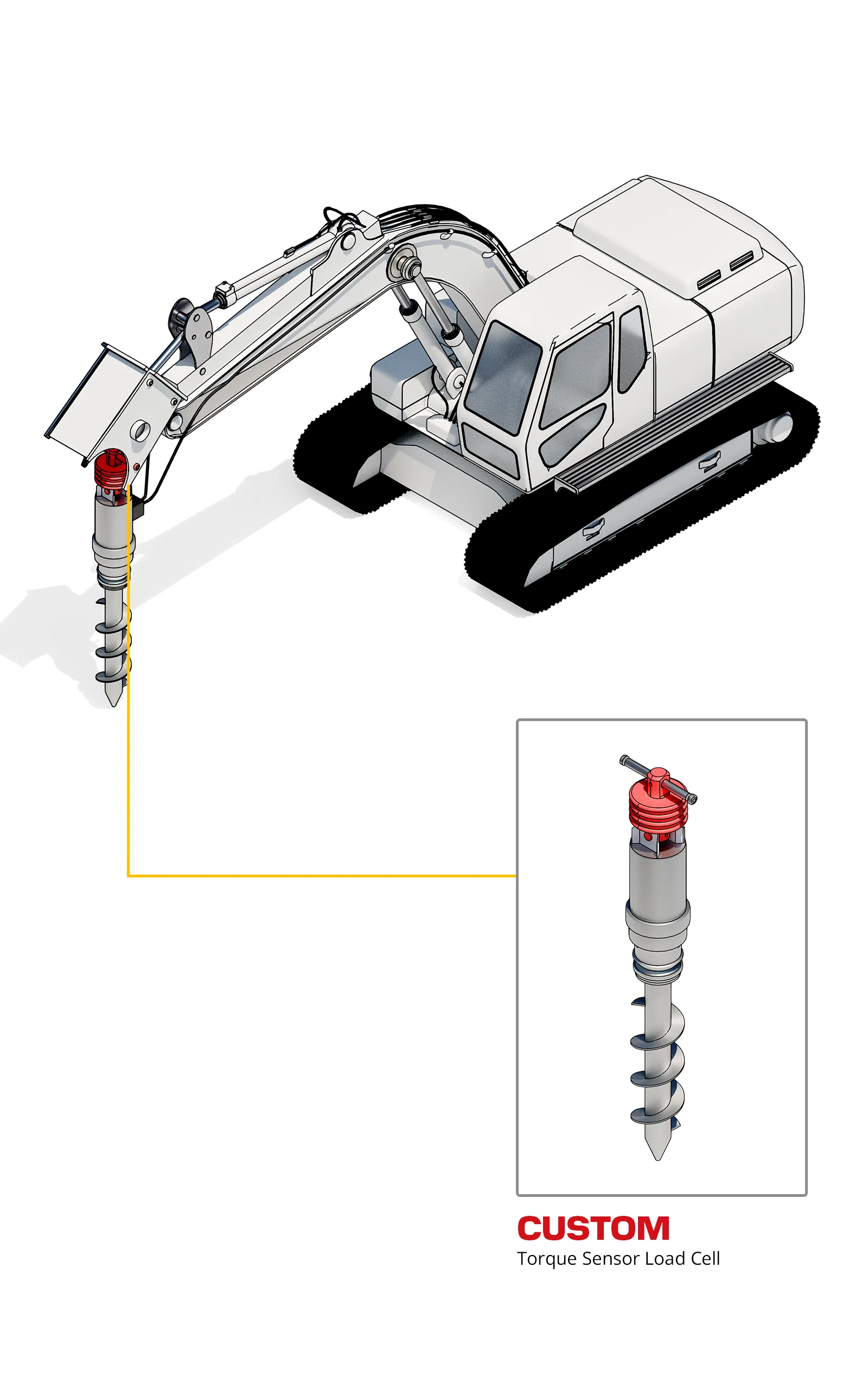

Torque Load Cell Integration

As core equipment in pile foundation engineering, geological exploration, and mining, the operational quality and safety of auger drilling machines depends heavily on precise control of the drill-string torque.  Torque information from ANYLOAD sensors not only indicates soil hardness, drill bit wear, and drilling efficiency, put also provides a quantitative defense against auger breakage, stuck drill events, and structural failure, increasing operational efficiency and safety.

Desafío

  1. Vibration & Impact: Drilling tools endure large cyclic impact loads, necessitating sensor fatigue resistance over prolonged operation.
  2. Site Contaminants: Harsh field environments expose sensors to debris such as dust and mud, requiring robust ingress protection, typically IP67 or higher.
  3. Wide Temperature Range: From -20°C to +85°C, sensors must avoid drift caused by thermal expansion/contraction of the body and temperature-dependent material property changes.
  4. Electromagnetic Interference: High power inverters and generators create strong interference, requiring strong protection against signal interference.

Solución

  1. Constructed from high-strength alloy steel engineered through mechanical analysis to withstand millions of high-impact cycles while safely handling loads exceeding 150% of full scale (FS) capacity.
  2. Designed with temperature compensation signal isolation measures that supress temperature-induced drift and EMI from surrounding equipment, ensuring long-term stability and accurate torque readings in harsh operating conditions.
  3. Built with a compact, high-stiffness structure that achieves a high natural frequency, enabling rapid response to changing torque loads.
  4. Paired with high-sample rate instrumentation, it enables real-time torque data acquisition and millisecond-level display of current torque values for immediate operator feedback.
ENVIAR CONSULTA

Conclusión

The ANYLOAD Custom Torque Sensor for auger drills delivers reliable, high-accuracy torque monitoring by leveraging our company’s years of technical expertise in mechanical design with robust environmental protection.  The rigid, high-stiffness structure ensures precise measurements under all loads even under vibration, temperature variation, and off-axis loading.  The forged alloy steel construction allows for a built in 150% FS safety margin, significantly reducing failure rates.
Using a quick-release axial mounted design, replacement time can be as short as 30 minutes.  The Custom Torque Sensor is a true plug-and-play replacement that requires no professional calibration on site, keeping downtime to a minimum.  Additionally, ANYLOAD offers complimentary topology optimization services to tailor to each individual drill shaft, special constraints, and load characteristics as we understand the importance of a reliable structure in heavy machinery environments.
By emphasizing mechanical reliability, structural optimization, and stable long-term performance, the Custom Torque Sensor offers a dependable foundation for torque monitoring to enhance drilling efficiency, safety, and supporting more intelligent construction operations.

Crane-Driller

Palabras clave:
Torque Sensor, Auger Drills, IP67, Construction Operation, Quick Release Axial Mount.
