Integrated Patient Weight Measurement for Smart Hospital Beds

Hospital beds with integrated scales allow caregivers to weigh patients without transferring them to separate weighing equipment. This is particularly important in intensive care, recovery, and long-term care settings where movement may be difficult or clinically undesirable.

Patient weight data supports treatment planning, medication and nutrition management, fluid-balance monitoring, and documentation. The same load-sensing system can also support bed occupancy and bed-exit alert functions.

Desafío

  1. Accurate Multi-Point Weighing: Patient position, mattress systems, bedding, accessories, drainage bags, and articulated bed sections can shift the load distribution across the bed frame, making consistent weight measurement difficult.
  2. Compact Mechanical Integration: Load cells must fit within the bed’s limited space, typically between the mattress platform and lower frame or at the four support points, without increasing bed height or interfering with lifting and positioning mechanisms.
  3. Reliable Clinical Operation: Sensors must withstand repeated bed adjustments, off-centre loading, cleaning, transport, and occasional overload while maintaining stable and accurate measurements throughout the equipment’s service life.

Solución

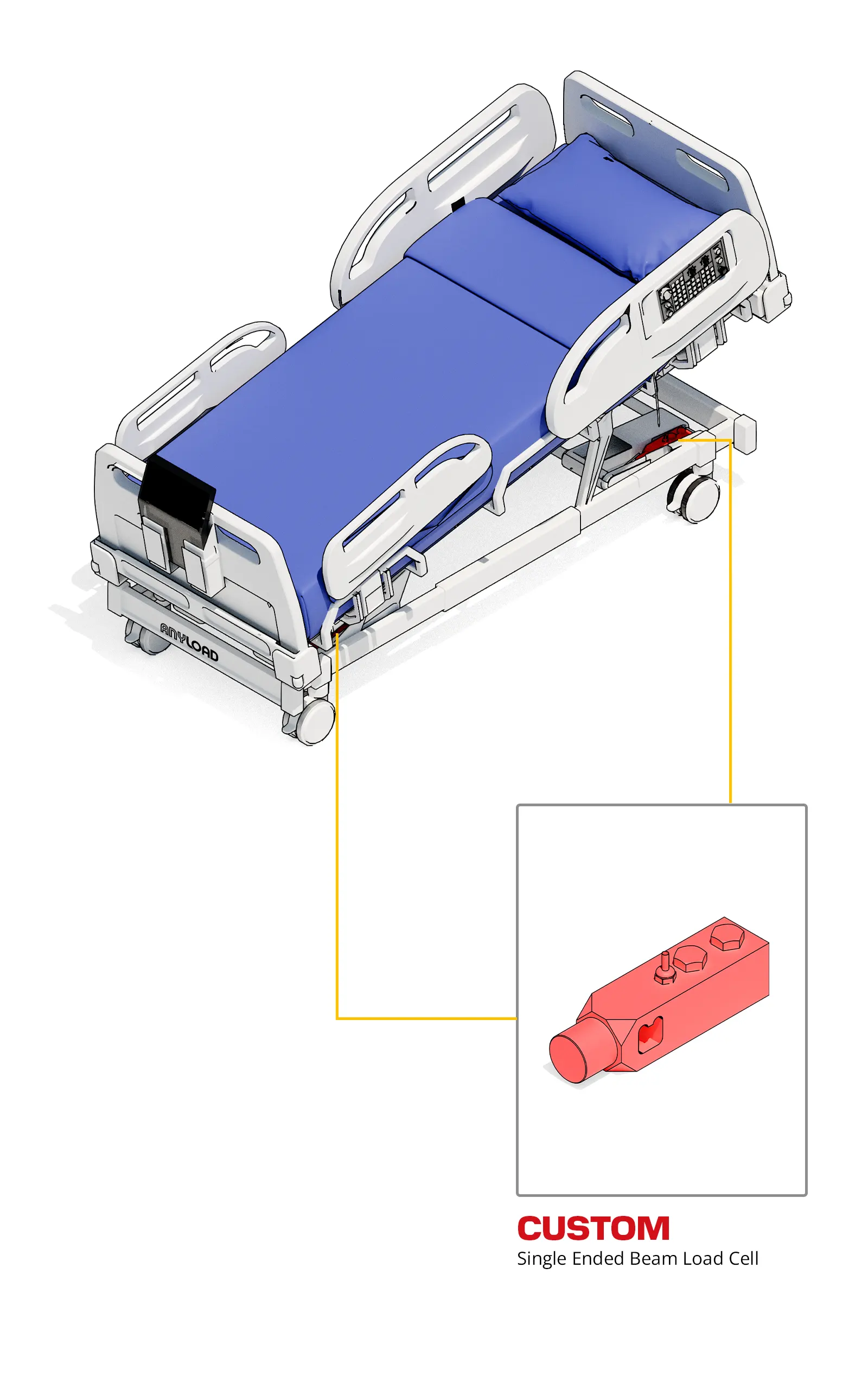

  1. Four-Point Load Measurement: Four low-profile planar or beam load cells positioned at the bed’s support points measure the distributed load across the mattress platform. Proper load-path design helps prevent forces from being diverted through actuators, cables, hinges, or other structural components.
  2. Low-Profile Mechanical Integration: Compact load cell designs and customized mounting interfaces allow the sensors to fit within the bed structure without significantly increasing platform height or interfering with lifting and positioning mechanisms. Capacities, mounting configurations, cable routing, and connectors can be tailored to the bed design.
  3. Stable Measurement Under Clinical Use: Matched load cells, controlled calibration, and appropriate signal filtering help maintain consistent readings under changing patient positions and off-centre loads. Load cells can be tested for repeated loading, overload conditions, and bed-position variations to support reliable performance throughout the equipment’s service life.

Conclusión

An integrated four-point load cell system enables reliable patient weighing while accommodating the compact mechanical requirements of hospital beds. Low-profile sensor integration, stable multi-point measurement, and customized mounting and calibration support consistent performance across changing bed configurations. With ISO 13485-certified manufacturing, traceability, and controlled engineering processes, ANYLOAD can support medical device manufacturers from prototype development through production.
