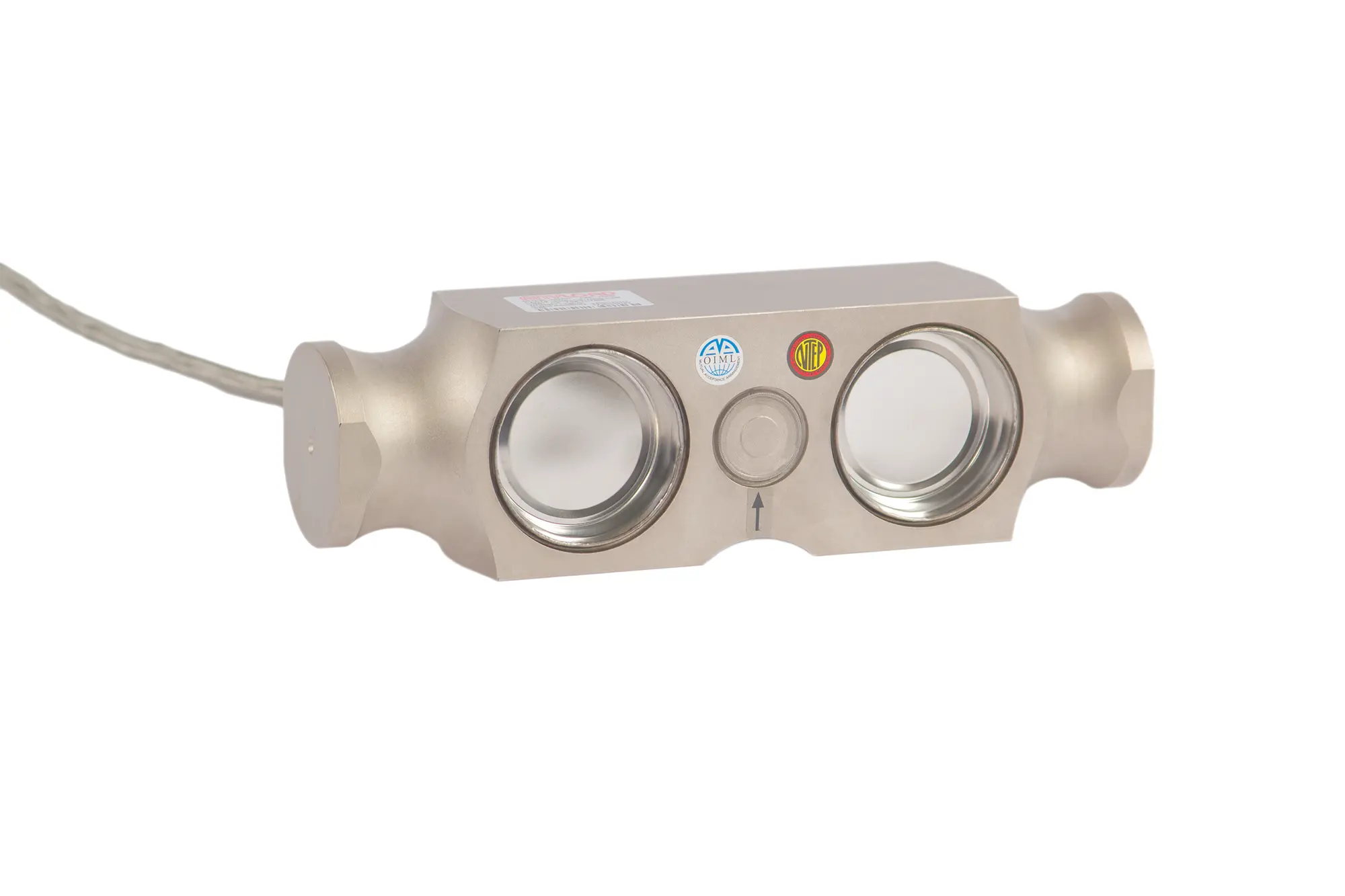

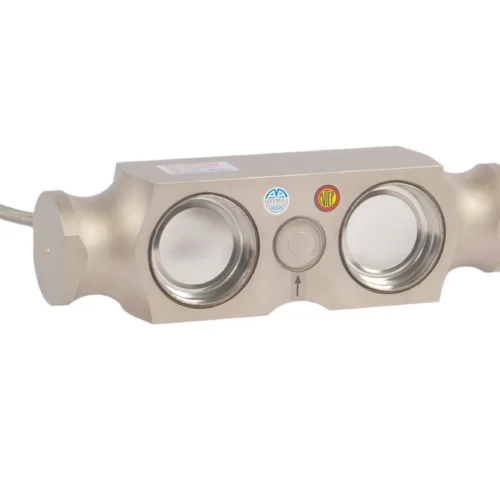

The ANYLOAD 102RH-CB is a nickel-plated alloy steel double ended beam load cell designed for accurate weighing and force measurement in multiple-cell systems. The datasheet documents a 75Klb (34.02t) rated capacity with a full scale output of 3.0 mV/V and a tightly controlled zero balance. Nonlinearity, hysteresis, and 30-minute creep are all held below ±0.023%, with repeatability below ±0.017%, giving engineers and OEM designers consistent, repeatable performance. The welded seal provides IP68 protection, and the load cell is rated for a safe overload of 150% and a breaking overload of 300% of full scale.
Installation and integration are straightforward. The dimensional drawing and table give the overall length, height, width, and mounting hole dimensions in both millimeters and inches, along with the 1/2-14 NPT thread detail. The wiring is color coded: red for excitation positive, black for excitation negative, green for signal positive, white for signal negative, and yellow for shield. The datasheet also specifies the 700 Ω input and output resistance, the recommended 10V excitation (15V maximum), insulation resistance, and the -10°C to 50°C (14°F to 122°F) compensated temperature range. The standard configuration includes a 20ft (6m) rat guard cable with a braided sheath ring terminal and a ground lug, so you can specify, wire, and install the 102RH-CB without guesswork.

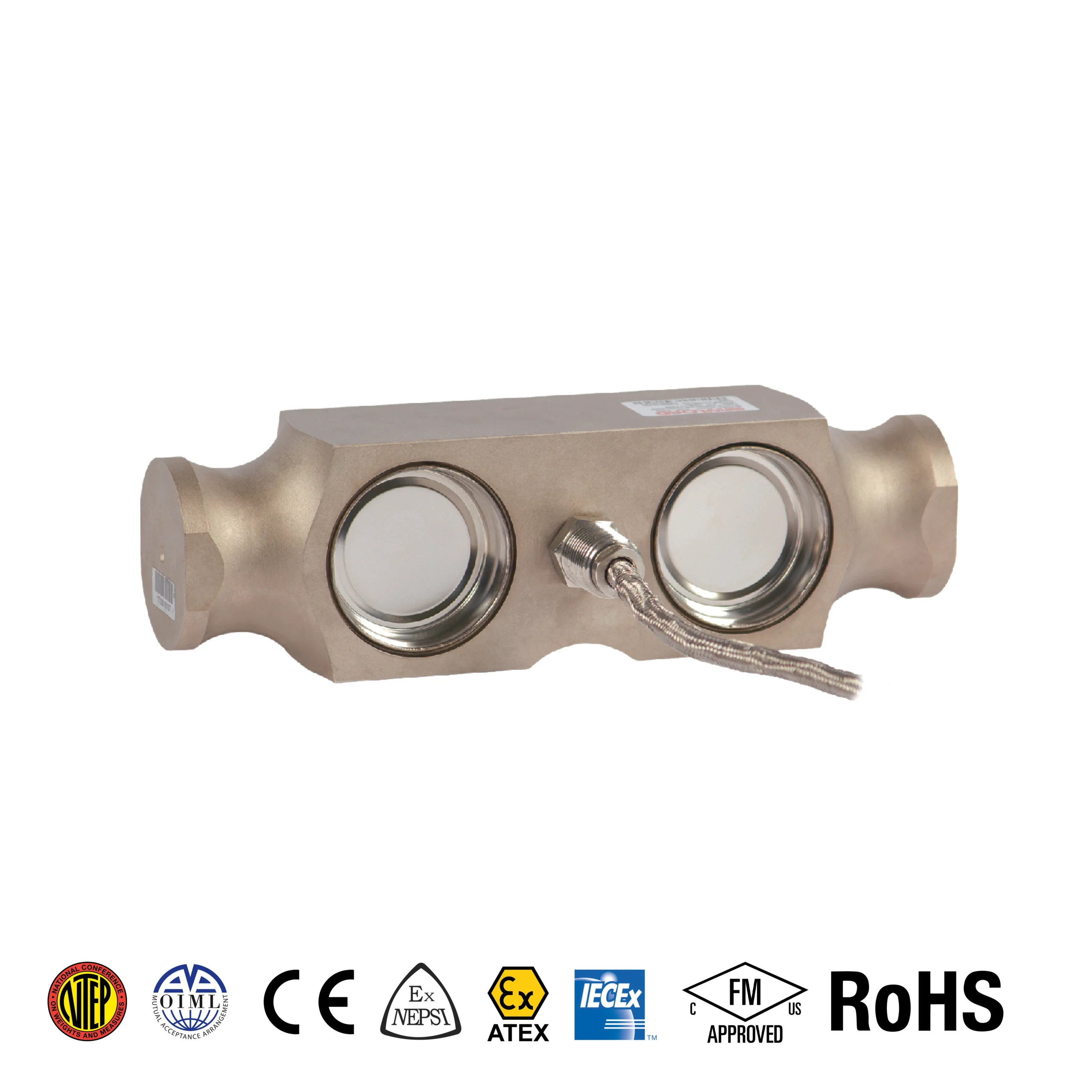

The 102RH-CB is RoHS compliant and listed to NTEP 1:10,000 Class IIIL for multiple-cell use and OIML MAA C4 with Y=15,000. ATEX, FM, and IECEx approved versions carry the “-Ex” suffix. The datasheet includes an interchangeability reference to the Vishay Sensortronics 65040A-1158, helping dealers, service technicians, and procurement teams quickly find a direct ANYLOAD replacement.
