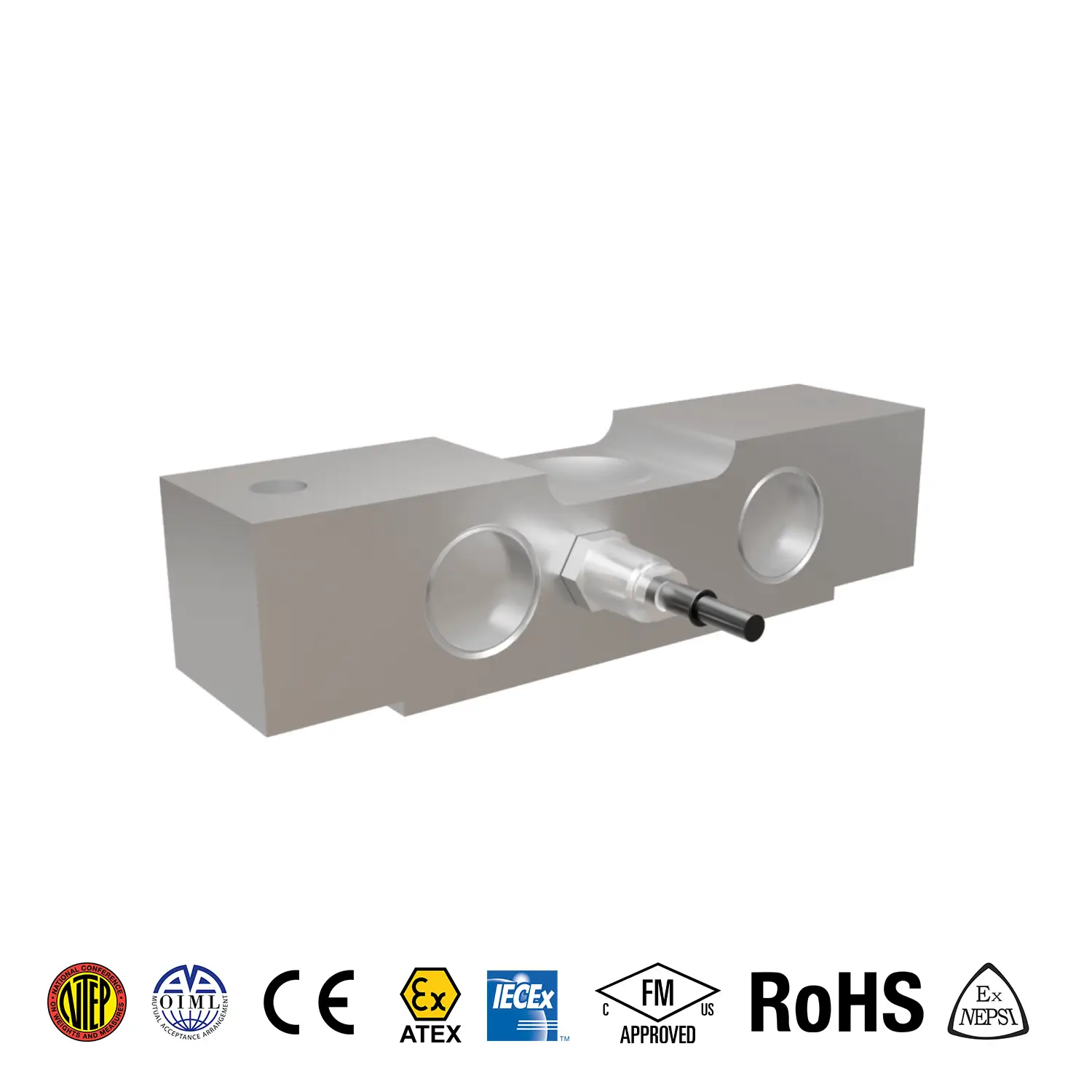

The ANYLOAD 102BS-GT is a stainless steel double ended beam load cell designed for heavy-capacity industrial weighing. It is rated at 75Klb and built from 17-4PH stainless steel, delivering a full scale output of 3.0 mV/V with tightly controlled zero balance, nonlinearity, repeatability, hysteresis, and creep performance. Engineers and OEM designers can rely on it for truck scales, tank and vessel weighing, and other demanding applications. The welded seal construction carries an IP68/IP69K rating, with a safe overload of 150% and a breaking overload of 300% of full scale.
Installation is straightforward thanks to the 3/4-10 UNC-2B mounting threads and the clearly documented dimensional drawing, which provides inch and metric tables. With 700 Ω input and output resistance, 10V recommended excitation (15V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F). The load cell ships with an 18 m cable, and the standard color code (Exc+ red, Exc- black, Sig+ green, Sig- white, shield bare) allows wiring without guesswork.
The 102BS-GT is RoHS compliant and carries NTEP and OIML approvals, with ATEX, FM, and IECEx approved versions available under the “-Ex” suffix. An interchangeability table cross-references the Cardinal SCBD (a digital load cell), helping dealers, service technicians, and procurement teams quickly find a direct ANYLOAD interchangeable.
