AN610 Scale Integrator

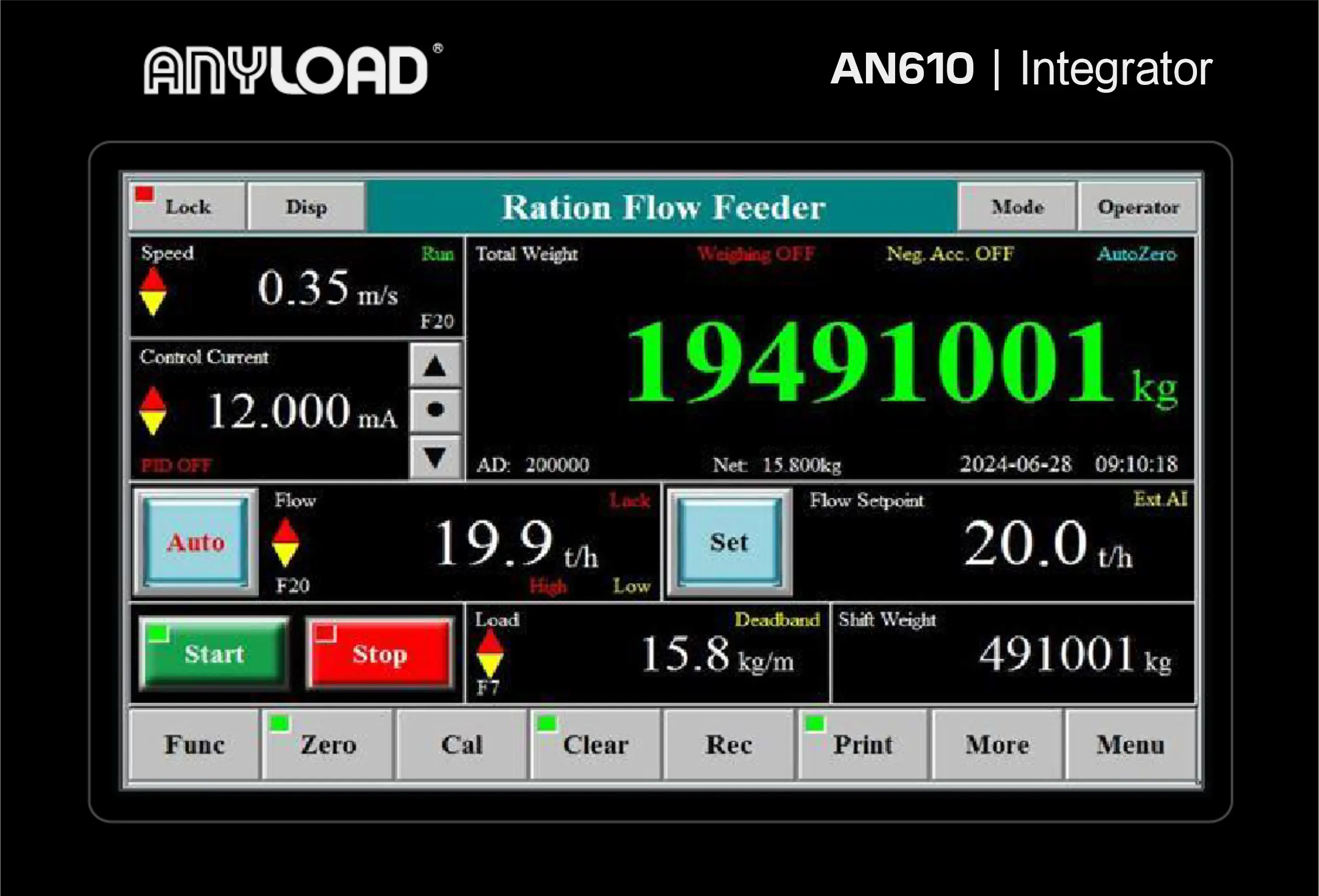

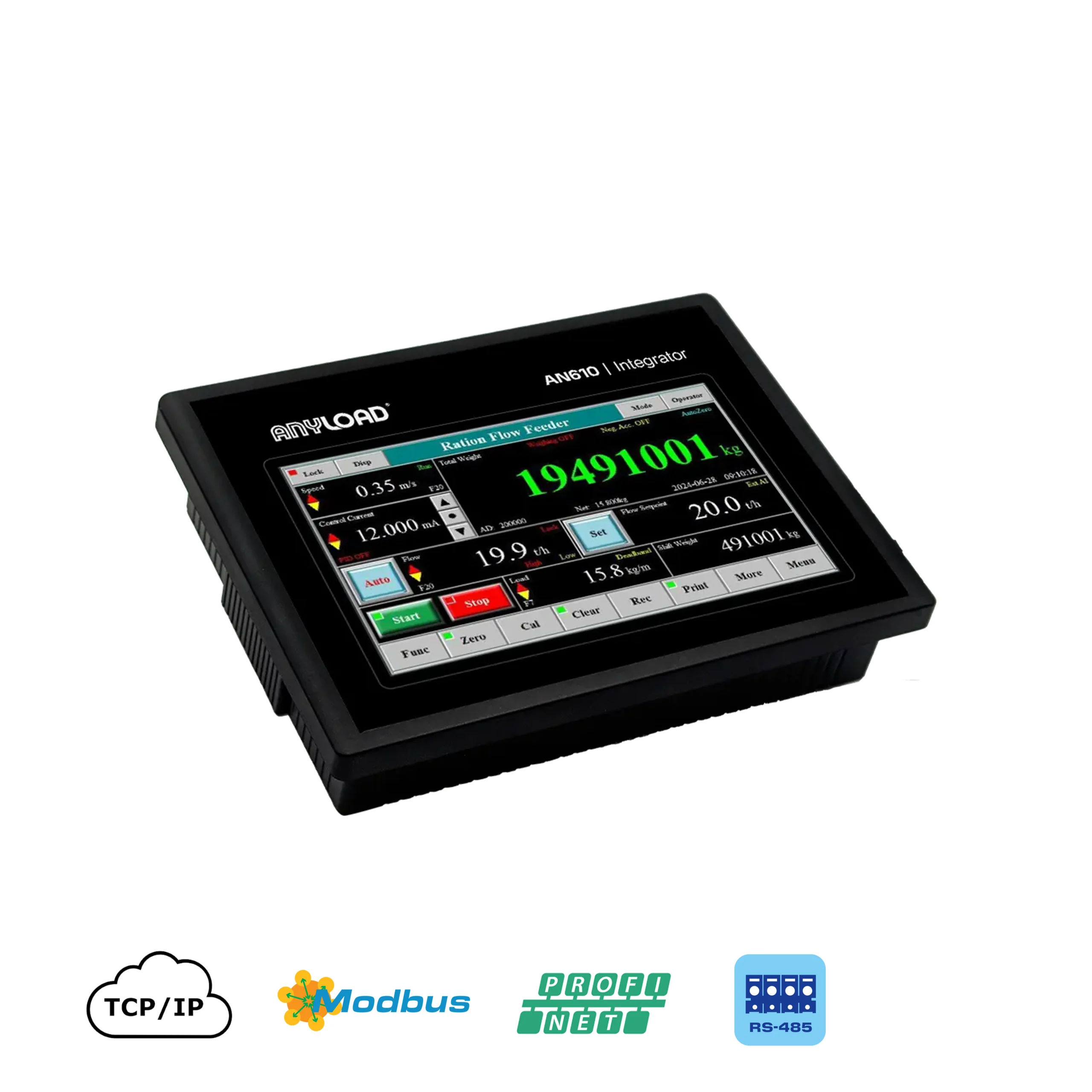

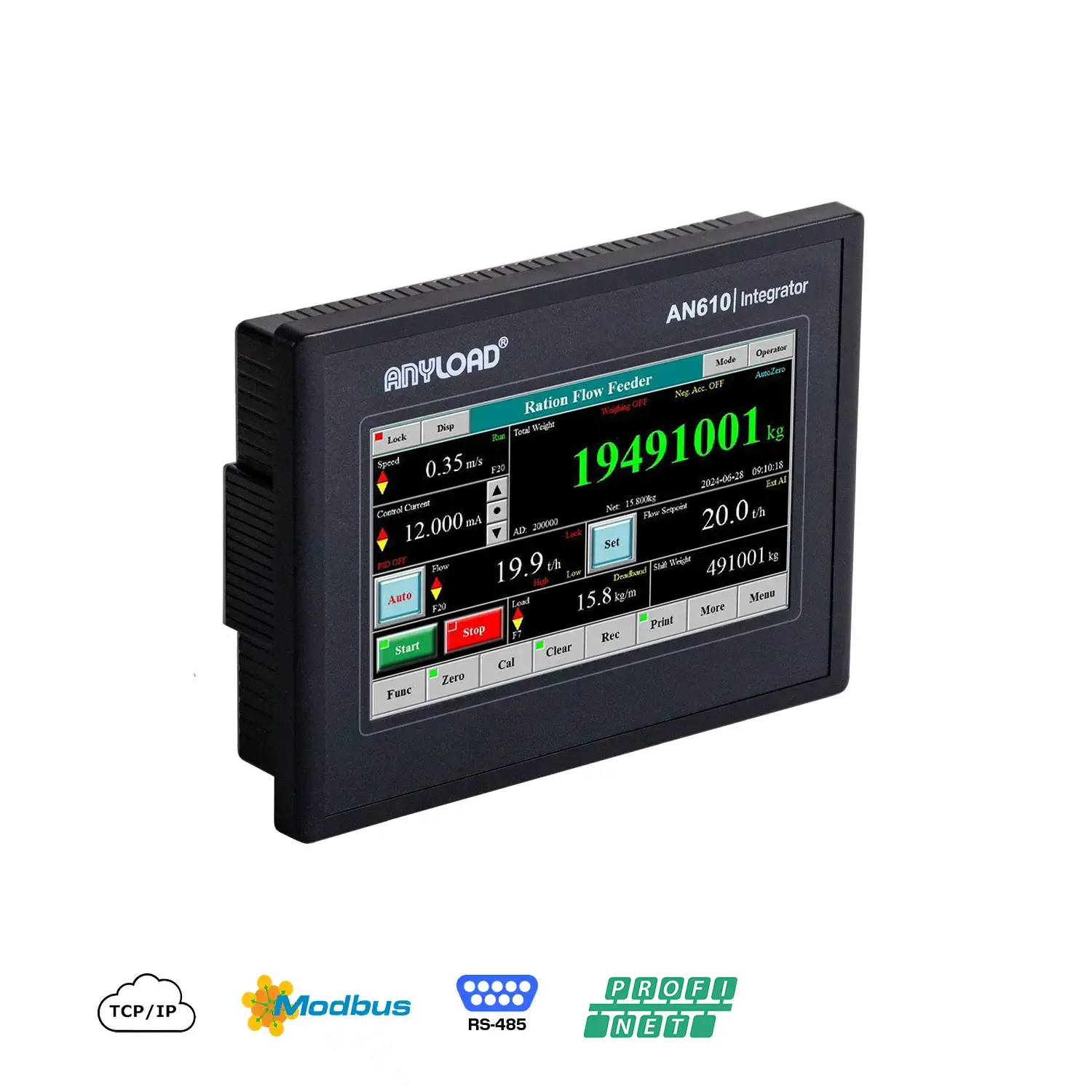

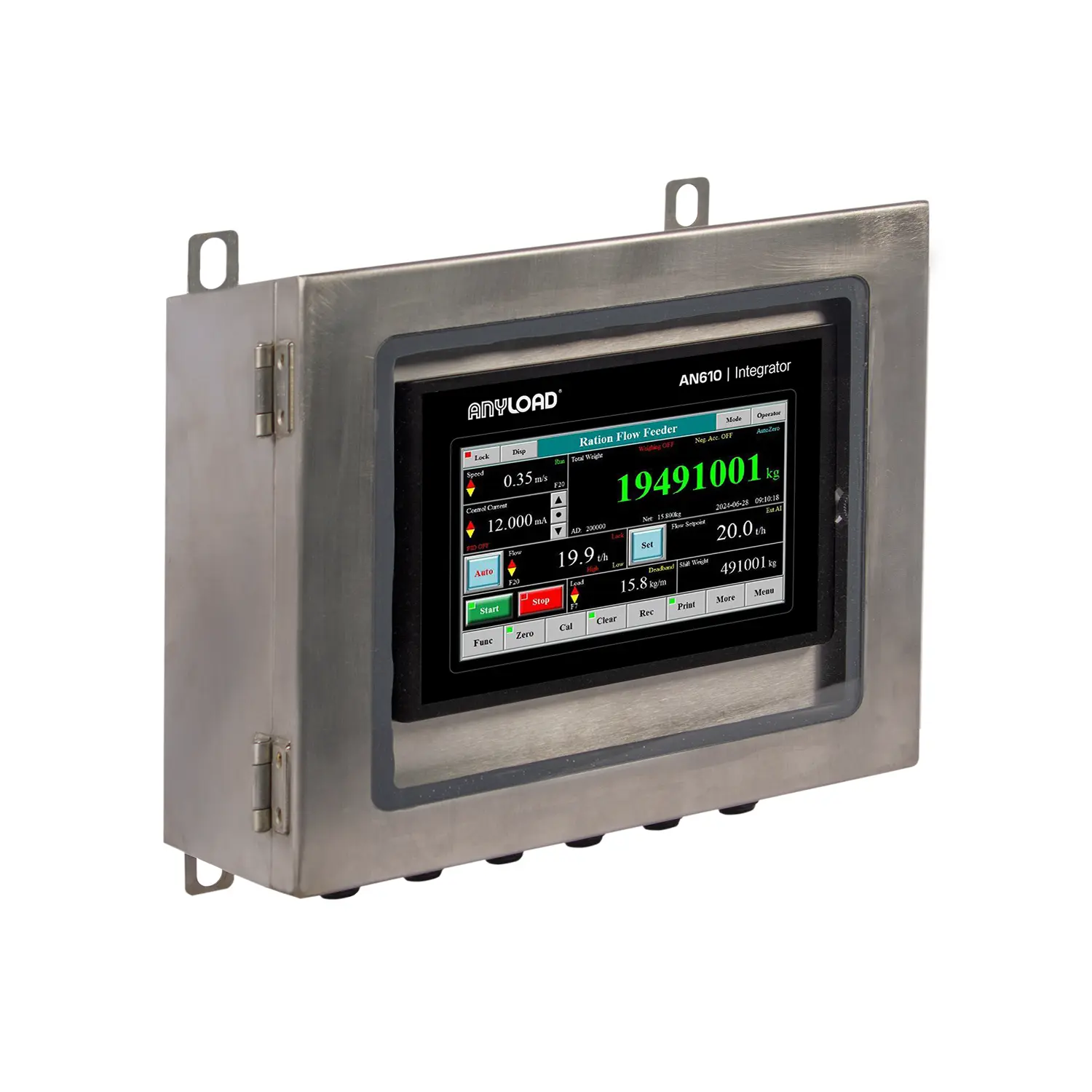

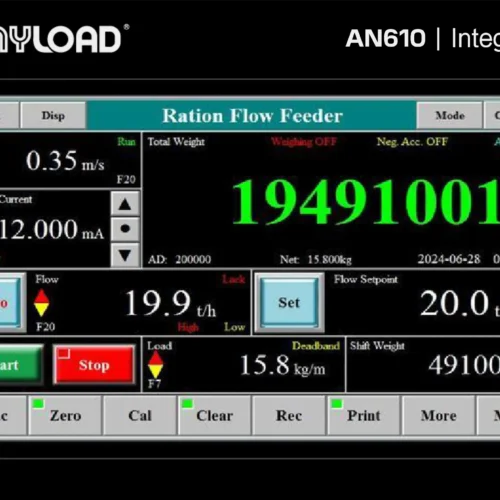

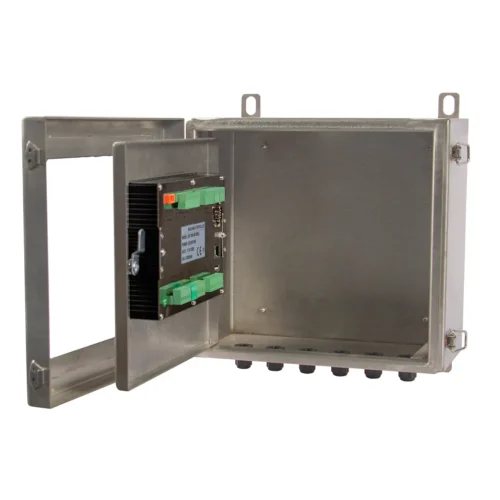

The ANYLOAD AN610 Scale Integrator / Indicator is a touchscreen-based weighing controller designed for conveyor belt scale systems and basic industrial flow measurement. It features a 7″ TFT display powered by a Cortex-A8 processor, providing clear visualization of weight, rate, and totalized data. With a high-resolution display up to 99,999,999 counts, a high-accuracy ADC, and a 400 Hz sampling rate, the AN610 delivers stable and responsive measurement for continuous weighing applications.
Signal stability is maintained through configurable digital filtering, allowing the instrument to perform reliably in environments with vibration, electrical noise, or fluctuating material flow. The unit supports PID-based control outputs and standard weighing logic for belt scales, belt weighfeeders, and flow systems. As with most weighing systems, the integrator functions as the central device that converts load cell signals into usable weight data for operators and control systems.

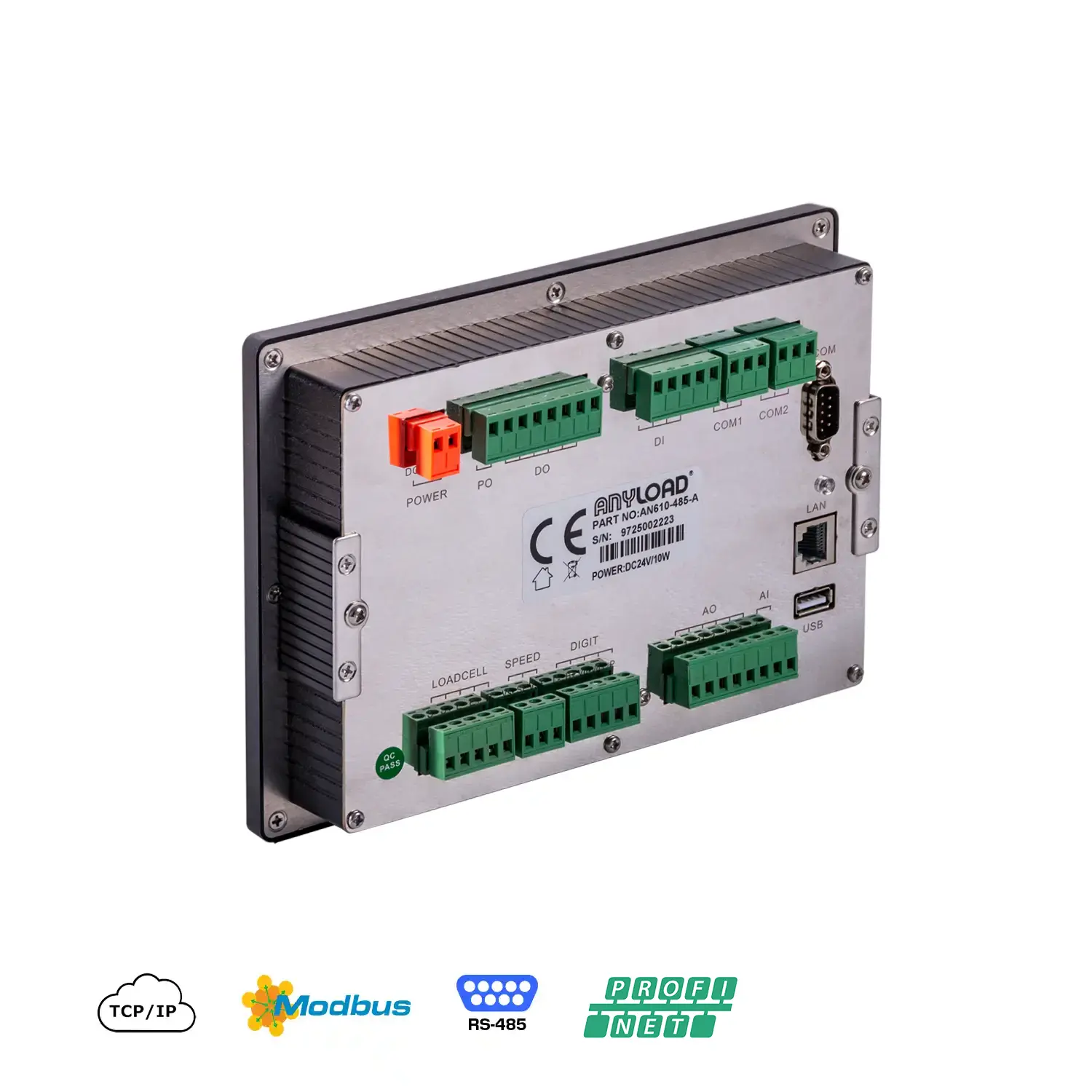

The AN610 includes multiple industrial communication options, including RS-485, Ethernet (Modbus TCP), Profibus-DP, and Profinet, enabling integration with PLCs and plant control systems. This allows weight and flow data to be transmitted for monitoring, logging, or higher-level control without requiring standalone operation.
The AN610 is best suited for conveyor belt scale and straightforward material flow applications where a reliable, ready-to-deploy integrator is needed. For more advanced process weighing systems requiring significant software customization or complex logic, additional PLC-based control layers may be required. ANYLOAD can support system selection and integration to ensure the appropriate architecture is used for the application.
Caractéristiques
- High accuracy ADC for precise weight measurement
- Configurable anti-vibration digital filtering for stable readings
- Parameters and calibration settings accessible from the front display
- Printer format control
- PID controllable output functions
- Storage of records by shift, day, or month
- 3x normally open switch inputs
- 3x normally open transistor outputs
- 3x analogue signal outputs
- EMC design with high anti-jamming capability for industrial environments
- Functions: auto zero tracking, batch weighing, flow weighing/control, speed measurement, tare, print interface, shift records.
Spécifications
| Power Supply & Consumption | 24 ± 20% VDC, 10W |
|---|---|
| Excitation Voltage | 10 VDC, up to 8 x 350Ω |
| Analog Signal Input Range | 0 – 31mV |
| Non-linéarité | 0.005% FS |
| Type d'affichage | 7′ TFT touch screen |
| CPU | Cortex-A8, 600MHz clock, 128M Flash |
| Résolution | Display: 99,999,999 |
| A/D Sample Rate | 400Hz |
| Unités de mesure | lb, Klb, g, kg, t |
| Communication Ports (Options) | RS-485, Profibus-DP, Profinet, Ethernet Modbus TCP |
| Speed Signal Input Range | 0.5 – 3000Hz |
| Print Port | RS-232 |
| Température de fonctionnement | –13°F to 133°F/-25°C to 45°C |
| Indice de protection IP | IP65 front panel IP54 unit enclosure |

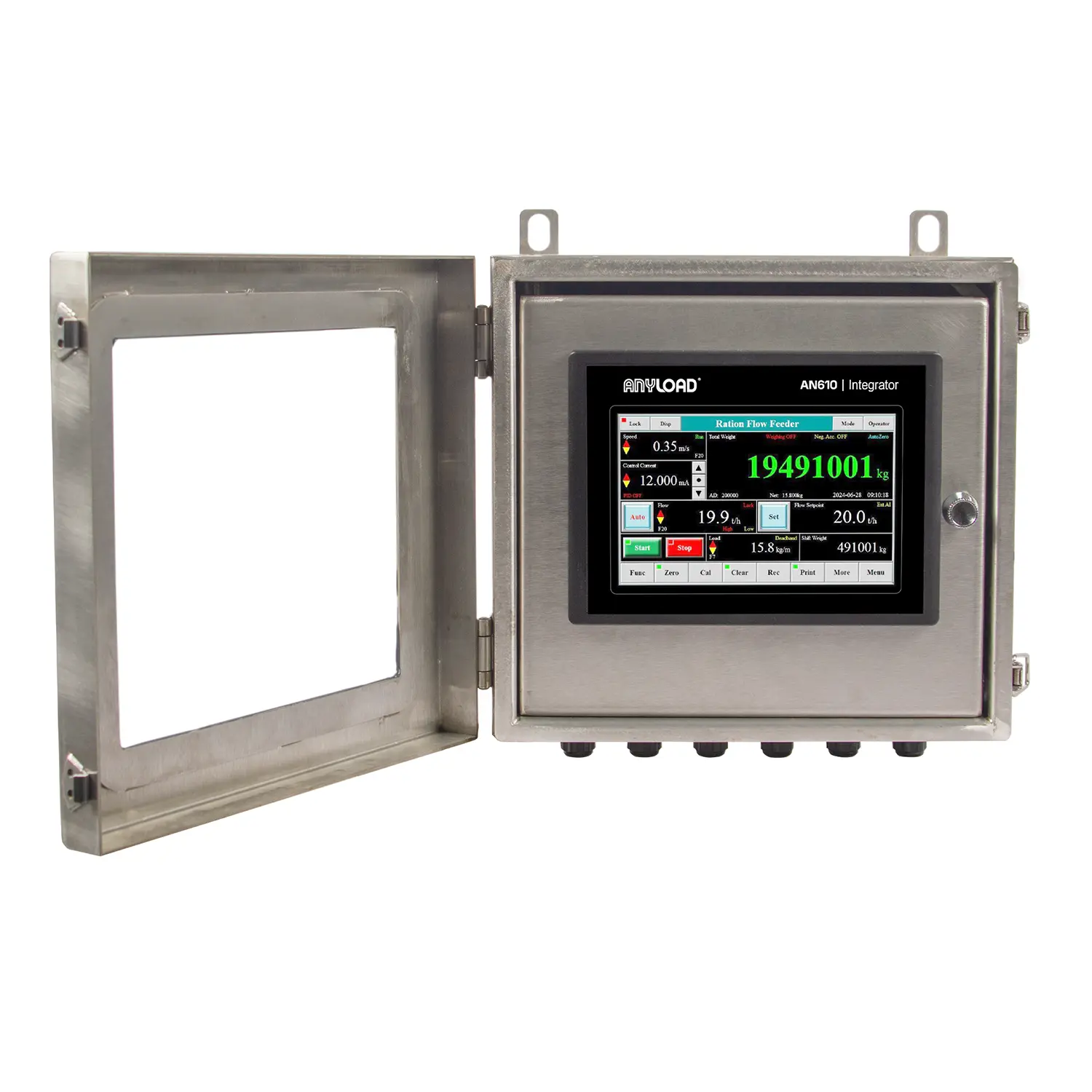

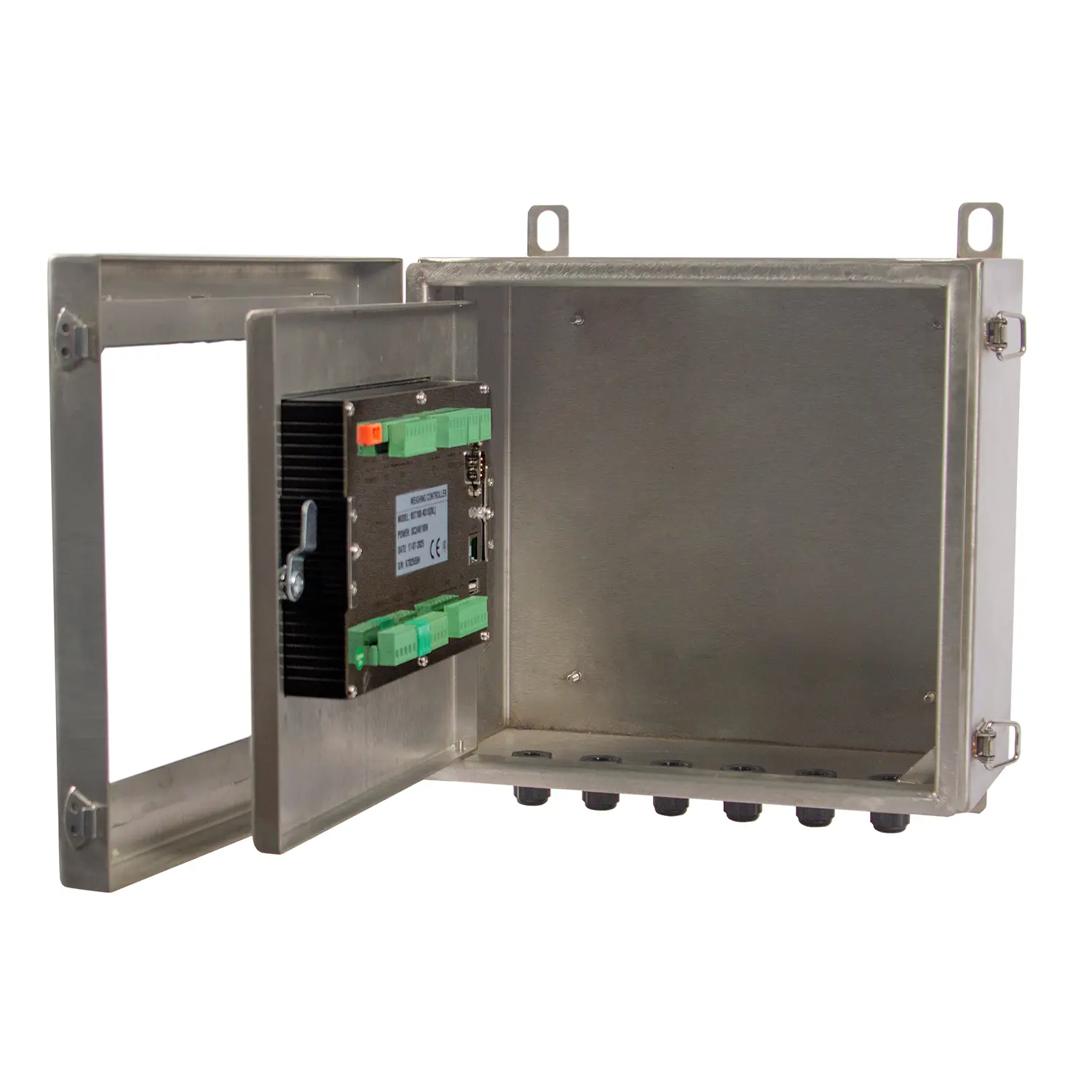

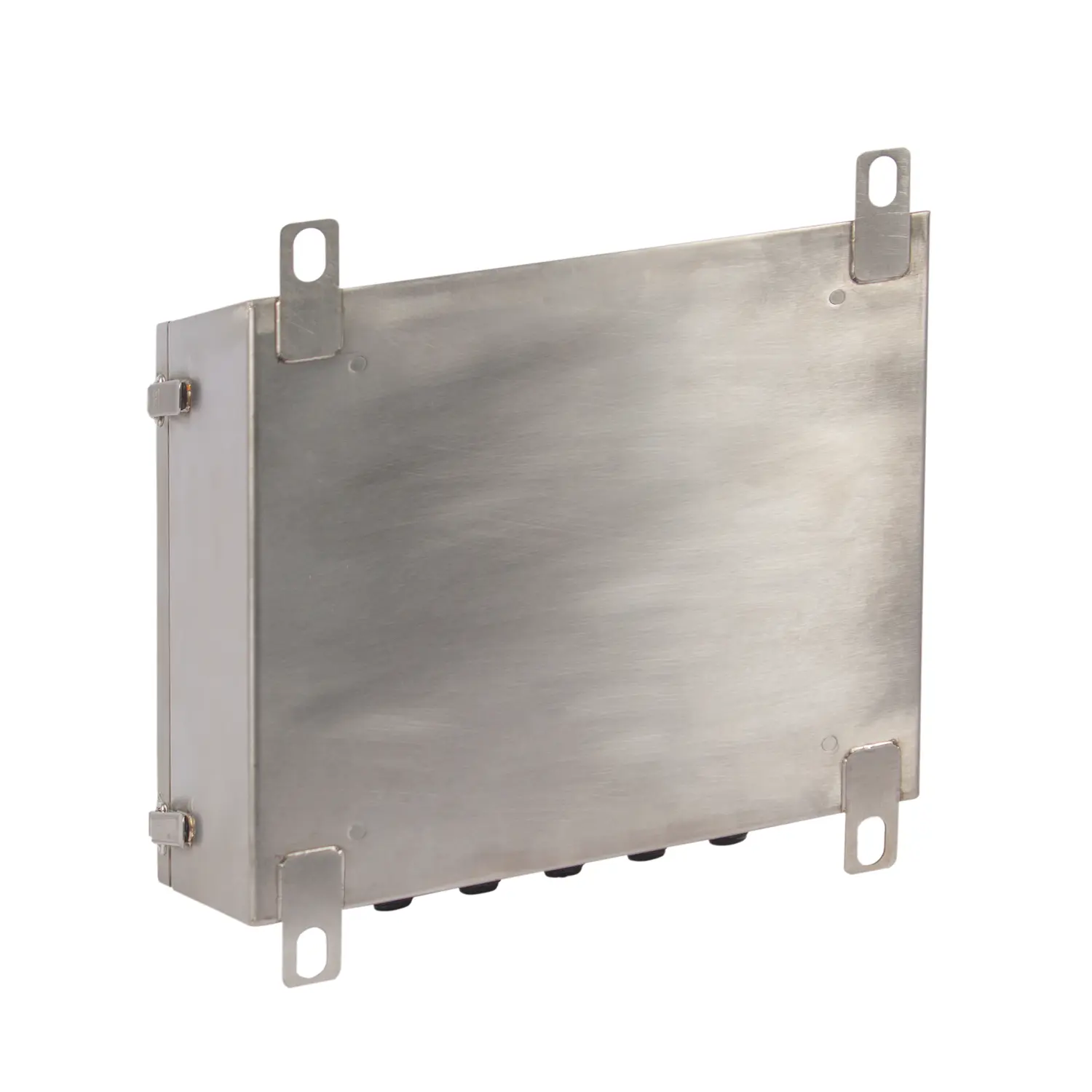

| Matériau du boîtier | Acier inoxydable |
