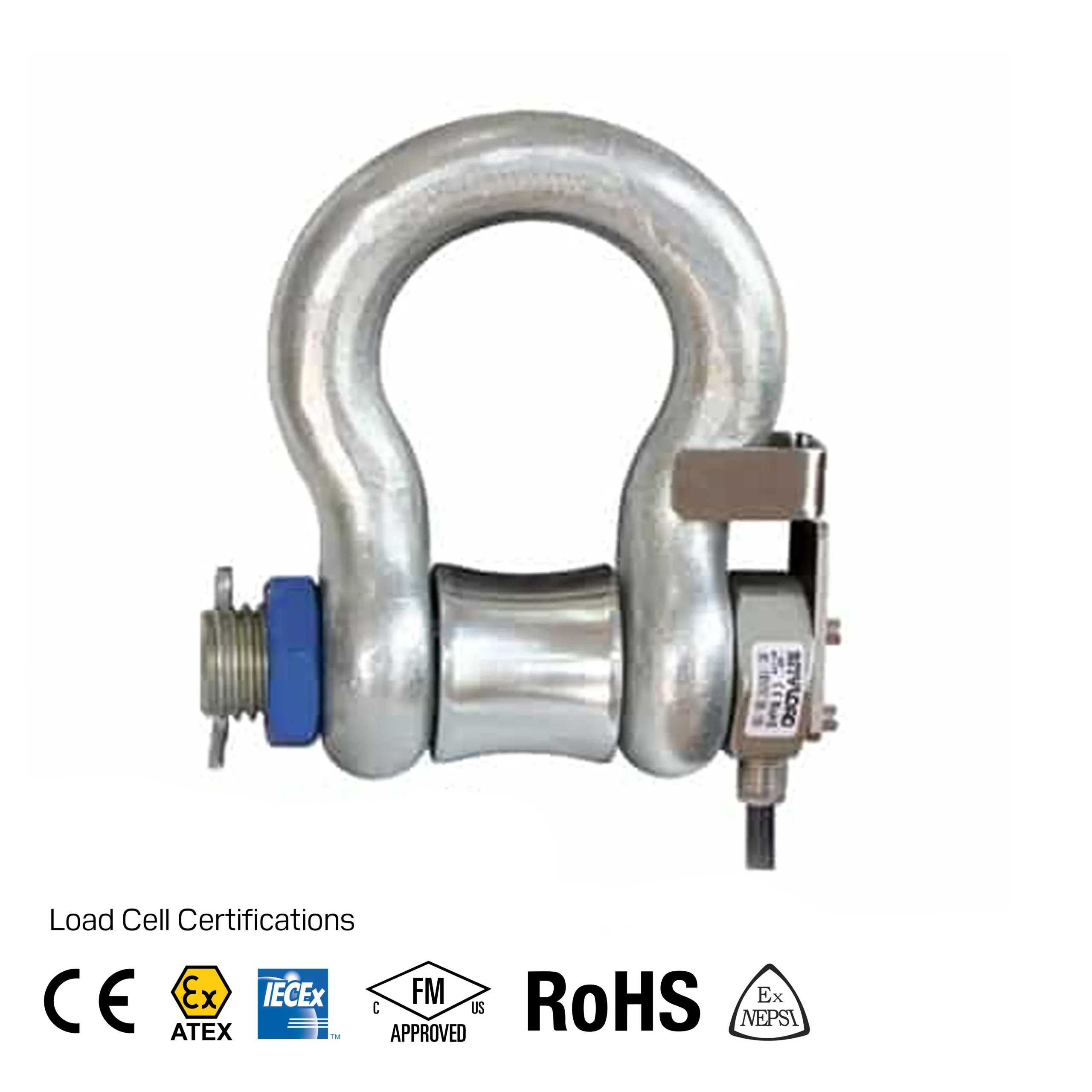

535AHM2 Shackle Load Cell
- Material: Alloy steel
- Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
- CE , RoHS and Ex certified load cells
- Load pin and shackle integration
- Bobbin design provides high accuracy and repeatability
- High tensile shackle meets ISO2415-2004 requirements
- Bridge Impedance: 350 Ohms
- Full Scale Output: 2.5mV/V ± 5%
- Non-linearity: ≤ 1% of full scale
- Repeatability: ≤ 0.5% of full scale
- Hysteresis Error: ≤ 1% of full scale
- Test Load: 2 times of the rated capacity
- Total Error: 1% of full scale
- IP Rating: IP67
| Rated Capacity | 5t, 10t, 15t, 20t, 30t, 50t, 100t |
| Full Scale Output | 2.5mV/V ± 5% |
| Non-linearity | < 1% of full scale |
| Repeatability | < 0.5% |
| Hysteresis Error | < 1% of full scale |
| Bridge Impedance | 350Ω |
| Test load | 200% of the rated capacity |
| Total Error | 1% of full scale |
| IP Rating | IP67 |
