Rated Capacity | 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t |
풀 스케일 출력 | Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20% |
제로 밸런스 | ± 0.03mV/V |
비선형성 | < ± 0.5% |
반복성 | < ± 0.3% |
히스테리시스 오류 | < ± 0.5% |
30분 후 크립 | < ± 0.5% |
입력 저항 | 375Ω ±25Ω |
출력 저항 | 350Ω ± 3Ω |
추천 흥분 | 10V(최대 15V) |
절연 저항 | > 2GΩ(50V DC) |
감도에 미치는 온도 영향 | < ±0.020% of Cn/k |
제로 밸런스에 대한 온도 영향 | < ± 0.020% of Cn/k |
Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
서비스 온도 범위 | –30°C to 70°C/-20°F to 160°F |
보관 온도 범위 | -50°C ~ 85°C/-58°F ~ 185°F |
안전 과부하 | 150%의 풀 스케일 |
과부하 차단 | 300%의 풀 스케일 |
씰 유형 | 환경 친화적인 밀봉 |
IP 등급 | IP66 |

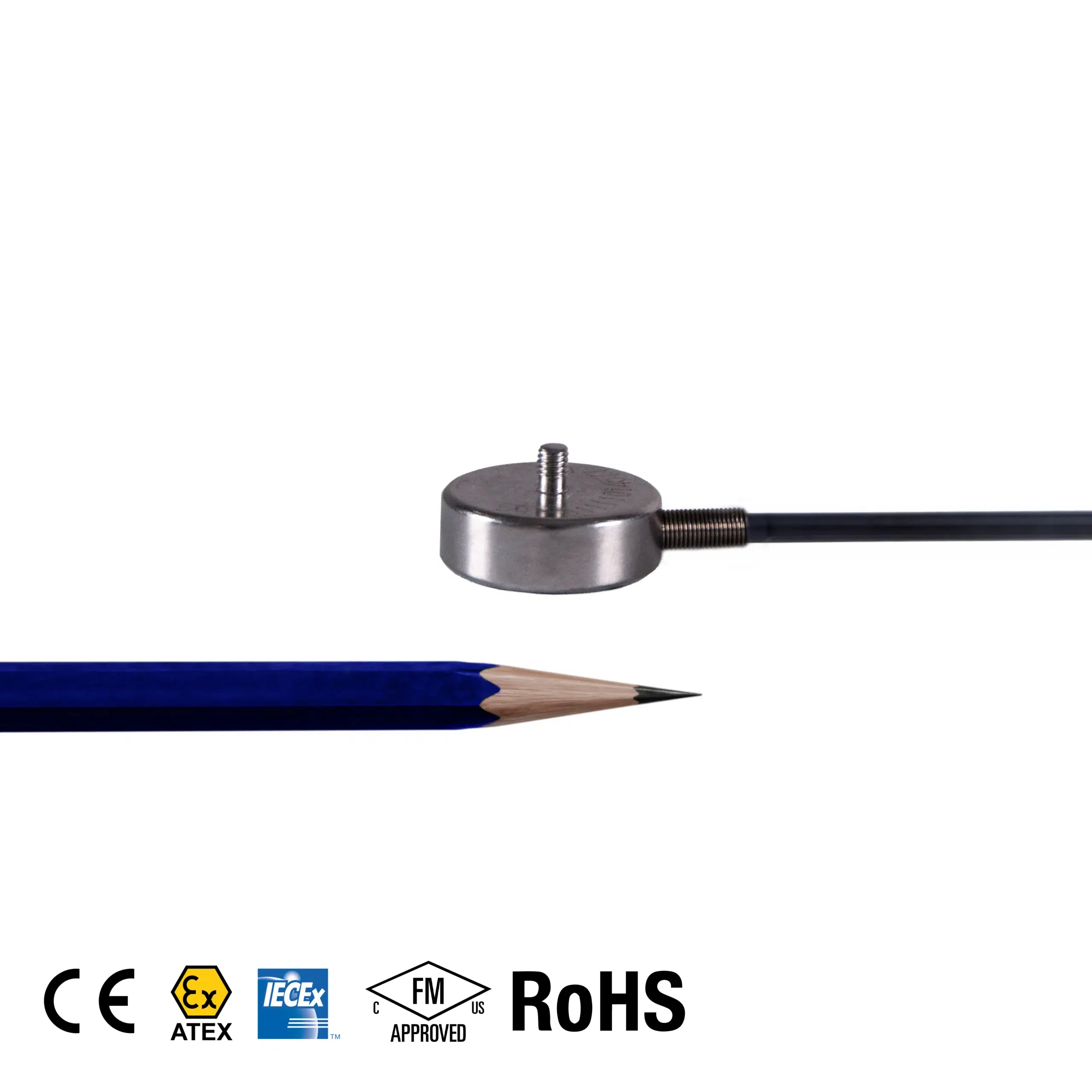

247AS 로드 버튼
Description:
The 247AS is a versatile and cost-effective stainless steel load button with IP66 water resistance and corrosion resistance. The compact design is ideal for compression weighing and force measurement wherever space and weight are limited. This model is particularly popular in automation, vehicle maintenance, sports science, and many other industries.
Features:
- Material: Stainless steel; Aluminum, Clear Anodized
- Rated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t
- Full Scale Output: Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP 등급: IP66
참고: STEP 파일을 열거나 볼 수 있는 소프트웨어가 필요할 수 있습니다.
