106RSM1 Módulo de pesaje por compresión

Name: 106RSM1 Compression Weigh Module
SKU: 36975
Price: 1.00 CAD
Availability: InStock

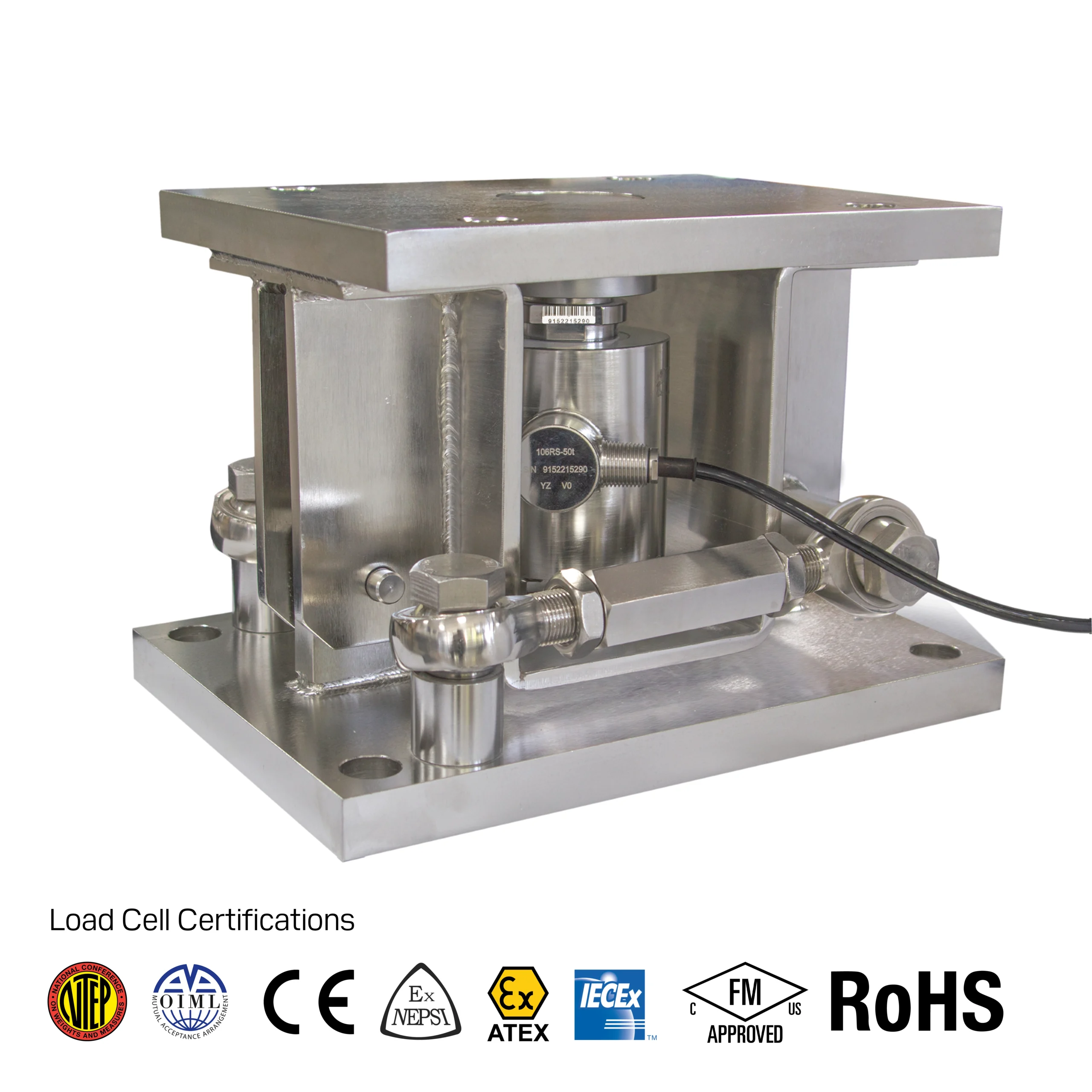

The 106RSM1 compression weigh module is a high-capacity mounting assembly designed for accurate and reliable tank, hopper, and silo weighing. Featuring a center-pivot design to accommodate thermal expansion, corrosion-resistant construction, and built-in uplifting protection, it ensures stable performance in demanding industrial environments.

Ficha de datos

Número de pieza

Limpiar

- +

Especificaciones
Documentos

Características

Rated capacities: 30t – 100t
106RS Rocker Pin load cell & upper/lower Cups
Center pivoted and self-checking with uplift protection
Additional pin slot to insert uplift protection pins that hold the top platform up safely while replacing load cell
Optional stabilizer rod that restrains lateral forces, suitable for dynamic applications
Integrated pivot allows for thermal expansion
NTEP and OIML approved
FM / ATEX / IECEx certified optional
