정격 용량 | 100N, 250N, 500N, 750N |
풀 스케일 출력 | 2mV/V ± 1% |
제로 밸런스 | ± 0.02mV/V |
비선형성 | < ± 0.050% |
반복성 | < ± 0.020% |
히스테리시스 오류 | < ± 0.010% |
30분 후 크립 | < ± 0.010% |
입력 저항 | 400Ω ± 20Ω |
출력 저항 | 350Ω ± 3Ω |
추천 흥분 | 10V(최대 15V) |
절연 저항 | > 2GΩ(50V DC) |
Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
안전 과부하 | 150%의 풀 스케일 |
과부하 차단 | 300%의 풀 스케일 |
씰 유형 | 환경 친화적인 밀봉 |
IP 등급 | IP66 |

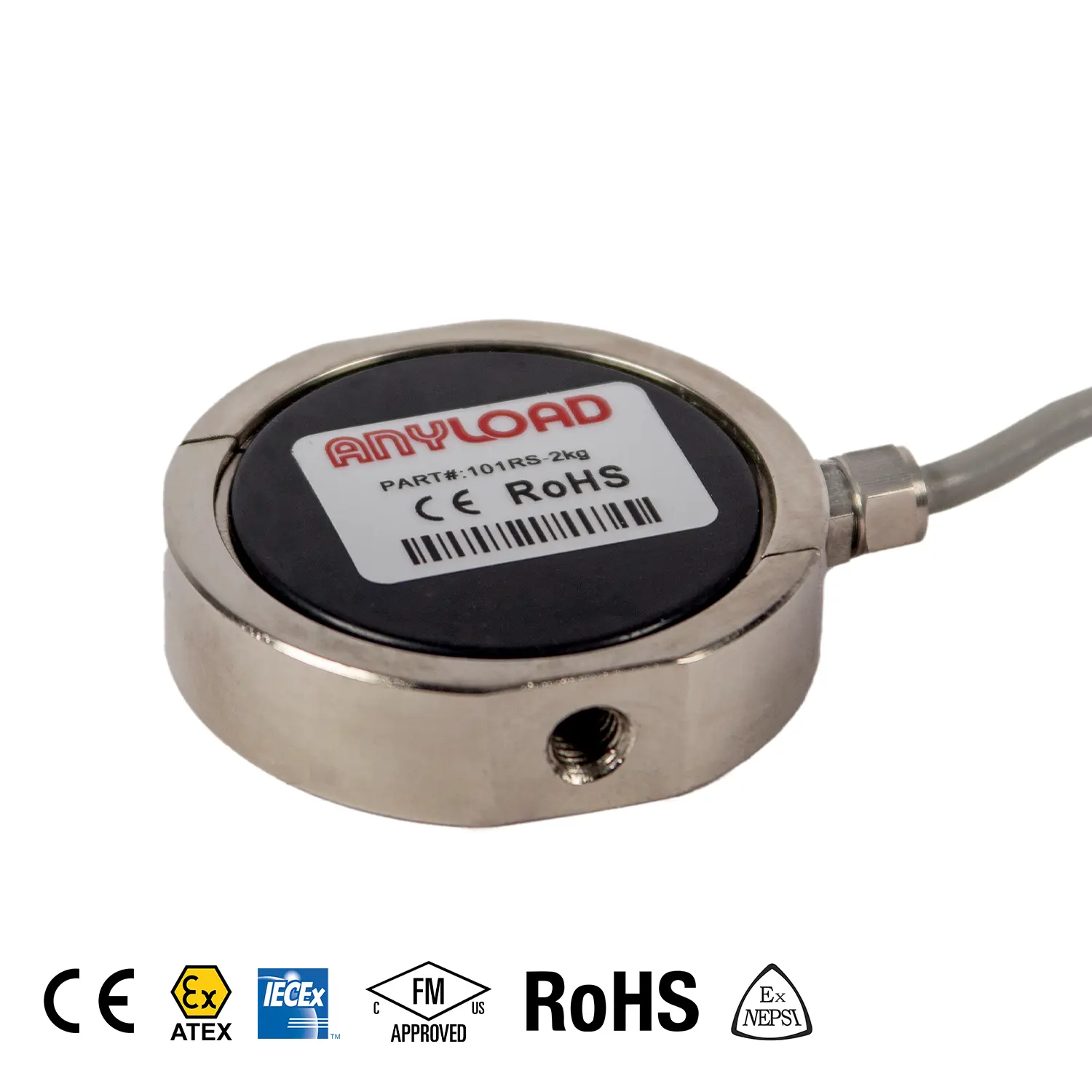

101RS 압축 및 장력 로드셀
Description:
The 101RS is a sleek S-beam type load cell built to be a tough and reliable tension and/or compression measurement solution for compact or lightweight applications that include testing instruments, hand-held portable devices, and more. It is designed with intrinsic overload stops to both tension and compression. The 17-4 PH stainless steel construction is IP66 water-resistant, able to perform in challenging environments. This is a flexible solution to meet a variety of weighing and force measurement needs.
Features:
- Material: Stainless steel
- Rated Capacities: 100N, 250N, 500N, 750N
- Full Scale Output: 2mV/V ± 1%
- 안전 과부하: 150%
- 과부하 차단: 300%
- IP 등급: IP66
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
참고: STEP 파일을 열거나 볼 수 있는 소프트웨어가 필요할 수 있습니다.
