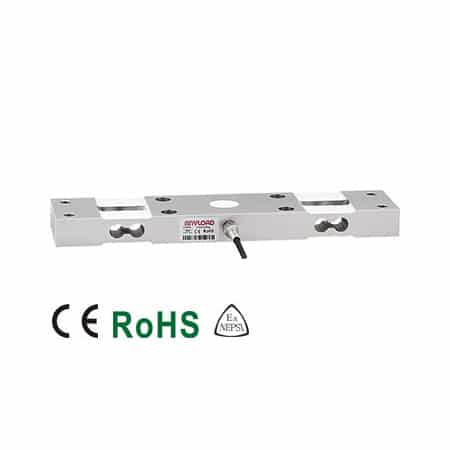

102HA Double Ended Beam Load Cell, Aluminum, Environmentally Sealed, IP66

102HA Double Ended Beam Load Cell

Features:

  • Material: Aluminium
  • Rated Capacities: 500kg, 1t
  • Full Scale Output: 1.3mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE, RoHS and Ex certified
Clear
Product Enquiry
SKU: N/A Categories: ,
Rated Capacity 500kg, 1t
Full Scale Output 1.3mV/V ± 0.1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.030%
Input Resistance 800Ω ± 2Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

pdf- Measurement Ukraine Certificate
