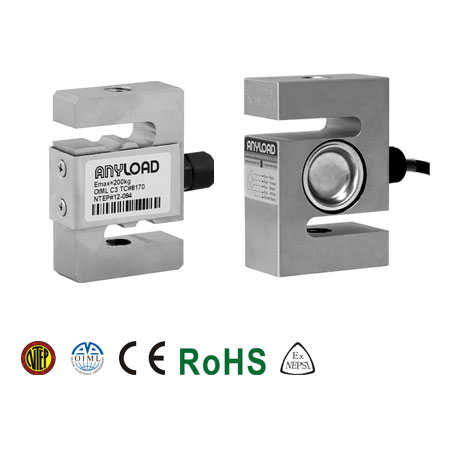

101BH S-Beam Load Cell, Alloy Steel, Environmentally Sealed, IP66/67

Celula de Carga tipo S 101BH

Product Enquiry

Descripción

  • Material: Alloy steel
  • Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
  • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
  • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
  • OIML MAA C4.5, Y=14 000 certified from 2t-10t
  • CE, RoHS and Ex certified
  • Measurement Ukraine certified
Rated Capacity 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

pdf- Measurement Ukraine Certificate
