ANYLOAD | 805BS Digital Weight Indicator

805BS Indicador de Peso Digital

Product Enquiry

Descripción

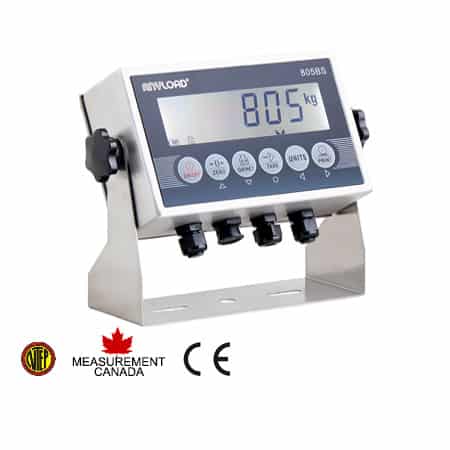

The ANYLOAD 805BS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805BS has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and drives up to eight 350Ω or sixteen 700Ω load cells. With a SS304 stainless steel wash down enclosure, the 805BS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and is NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.

  • NTEP III/IIIL, 10 000 approved
  • Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LCD 6-digit display
  • Power Supply: AC adaptor or rechargeable lithium batteries 7.2V/2000mA
  • Parameter and calibration settings are performed on the front panel
  • Units of Measurement: kg, lb, g, oz, lb:oz conversion
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 connecting port
  • Print functions with programmable print format
  • Built-in clock

• Auto zero scale
• Auto zero tracking
• Normal weighing
• Peak
• Counting
• Zero scale
• Tare
• Gross/Net
• RS-232
• Print interface (PS805 Printer)

Enclosure Material Stainless steel SS304
Units of Measurement kg, lb, g, oz, lb:oz conversion
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 71mm x 161mm
Dimensions (in) 8.9in x 2.8in x 6.34in
Display Type LCD
Display Digits 6 digits
Digit Height 25.4mm/1in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor or rechargeable lithium batteries 7.2V/2000mA
IP Rating IP66
Division 1, 2, 5, 10
Tare Range 100% of Cn
Maximum Number of Load Cells 8×350Ω or 16×700Ω
Maximum Power Consumption 6VA
Excitation Voltage 5V DC ± 5%
Fusible Link Fuse (slow blow) 1A
Communication Interface RS232
Print Interface Serial interface
