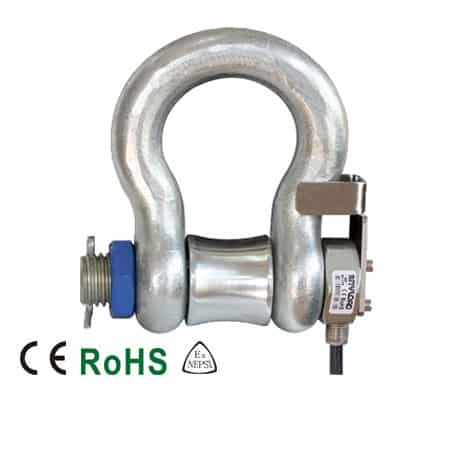

ANYLOAD | 535AHM2 Shackle Load Cell, Alloy Steel, IP67

535AHM2 Célula de Carga de Grillete

Product Enquiry


  • Material: Alloy steel
  • Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
  • CE , RoHS and Ex certified load cells
  • Load pin and shackle integration
  • Bobbin design provides high accuracy and repeatability
  • High tensile shackle meets ISO2415-2004 requirements
  • Bridge Impedance: 350 Ohms
  • Full Scale Output: 2.5mV/V ± 0.25%
  • Non-linearity: ≤ 1% of full scale
  • Repeatability: ≤ 0.5% of full scale
  • Hysteresis Error: ≤ 1% of full scale
  • Test Load: 2 times of the rated capacity
  • Total Error: 1% of full scale
  • IP Rating: IP67

pdf- Download data sheet
