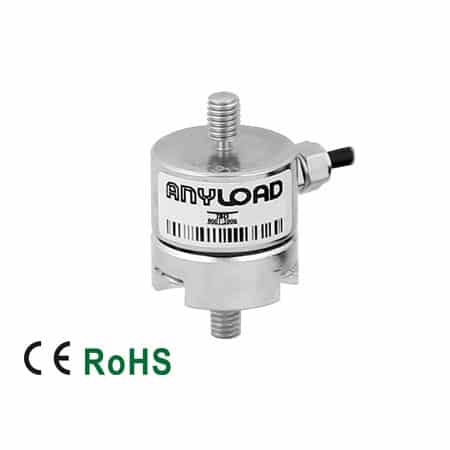

ANYLOAD | 247BS Load Button, Stainless Steel, Environmentally Sealed, IP66

247BS Botón de Carga

Product Enquiry

Descripción

  • Material:  Stainless steel
  • Rated Capacities: 20kg, 30kg, 50kg, 100kg
  • Full Scale Output: 1.0mV/V ± 20%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
Rated Capacity 20kg, 30kg, 50kg, 100kg
Full Scale Output 1.0mV/V ± 20%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.3%
Repeatability < ± 0.1%
Hysteresis Error < ± 0.1%
Creep in 30 minutes < ± 0.1%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.020% of Cn/k
Temperature Effect on Zero Balance < ± 0.020% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet
