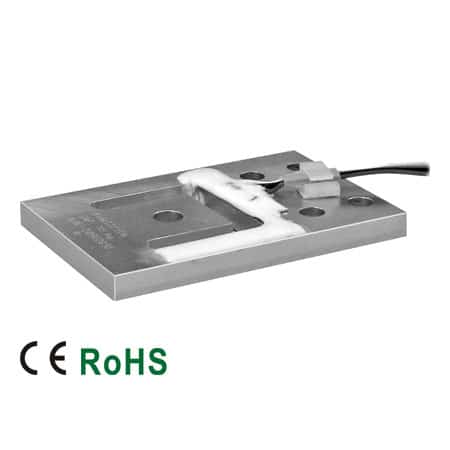

202UA Planar Load Cell, Aluminum, Environmentally Sealed, IP65

202UA Célula de Carga Plano

Product Enquiry
Categoría:

Descripción

    • Material: Aluminum
    • Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
    • Full Scale Output: 0.9mV/V ± 0.1%
    • Safe Overload: 150%
    • Breaking Overload: 300%
    • IP Rating: IP65
    • CE and RoHS certified
Manufacturer Model
Flintec PB
Rice Lake RL BLP
Rated Capacity 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
Full Scale Output 0.9mV/V ± 0.1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.020%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.015%
Creep in 30 minutes < ± 0.015%
Input Resistance 1190Ω ± 10Ω
Output Resistance 1000Ω ± 10Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0015% of Cn/k
Temperature Effect on Zero Balance < ± 0.0030% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP65

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
